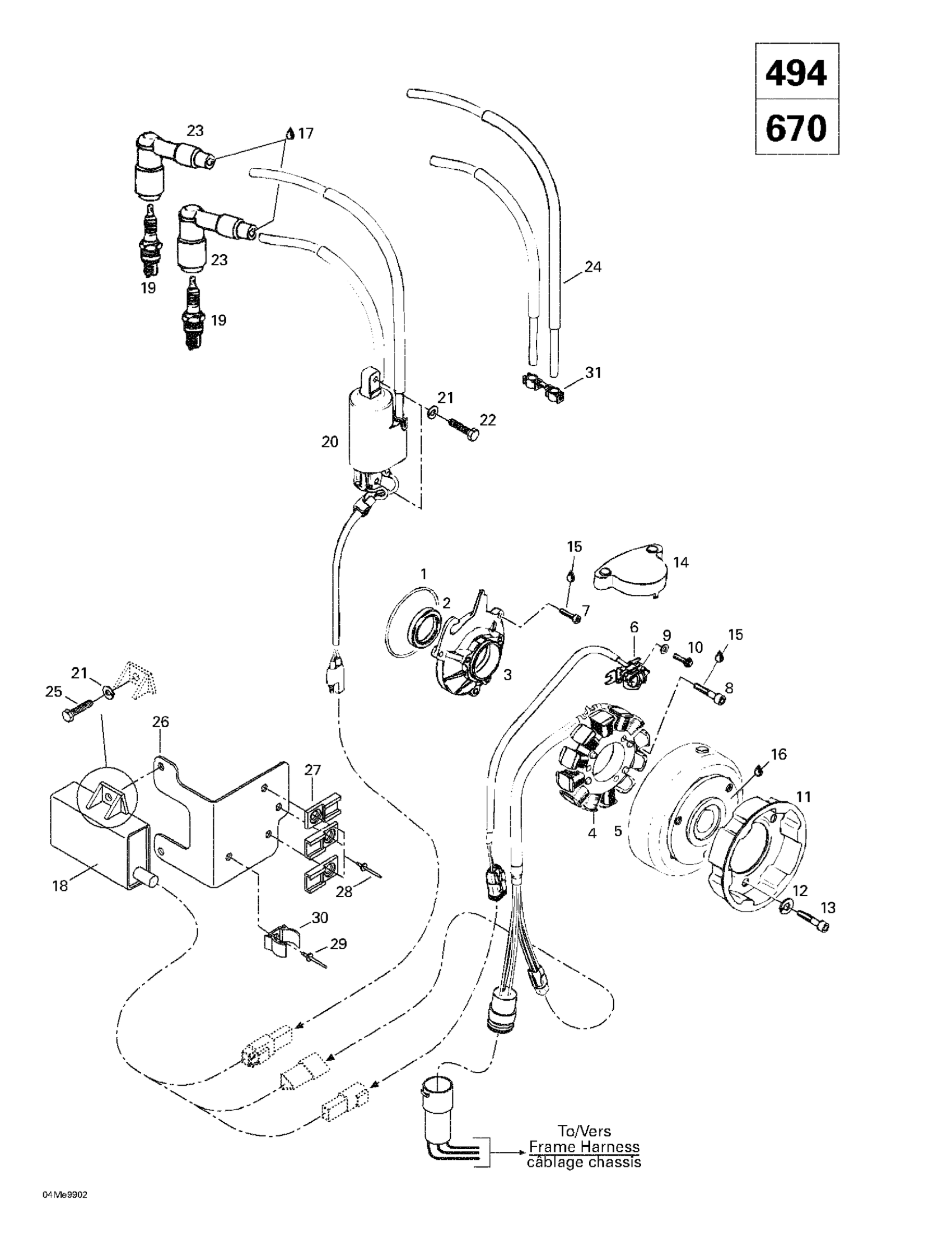

Ski-Doo Formula Z 500/583/670, 1999 03- Magneto 12V 220W (494, 670) Diagram

O-RING - Call your local BRP dealership

420850430

Unavailable

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

Armature Plate

420810265

Unavailable

Magneto Ass'y 12V 220W | Includes 4 - 6. Formula Deluxe 500 LC. Formula Deluxe 670.

410922904

Unavailable

Stator Plate Ass'y | Includes 4 - 7.

410922905

Unavailable

Magneto Flywheel

410922906

Unavailable

Pick Up Ass'y

420965642

Unavailable

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

WASHER - Call your local BRP dealership

420827800

Unavailable

Allen Screw M5 x 16

420840514

$1.90

Starting Pulley

420852590

$29.49

Washer-Lock Din.128

420945832

$1.15

Socket Head Screw M8 X 12

420841520

$1.69

Pick-Up Cover

420810700

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Ignition Module | Includes 36 - 47.

512058927

Unavailable

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

Lock Washer M6, Black

234161471

$0.53

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

Hex. Screw M6 X 16

207161644

$0.74

Cable Support

515175107

Unavailable

Clip

270000141

$11.49

Not Available As Spare Part - Friction Washer

Unavailable

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

Clip

415089700

Unavailable

Plastic Clip, Spark Plug Wire

410914600

$5.61
