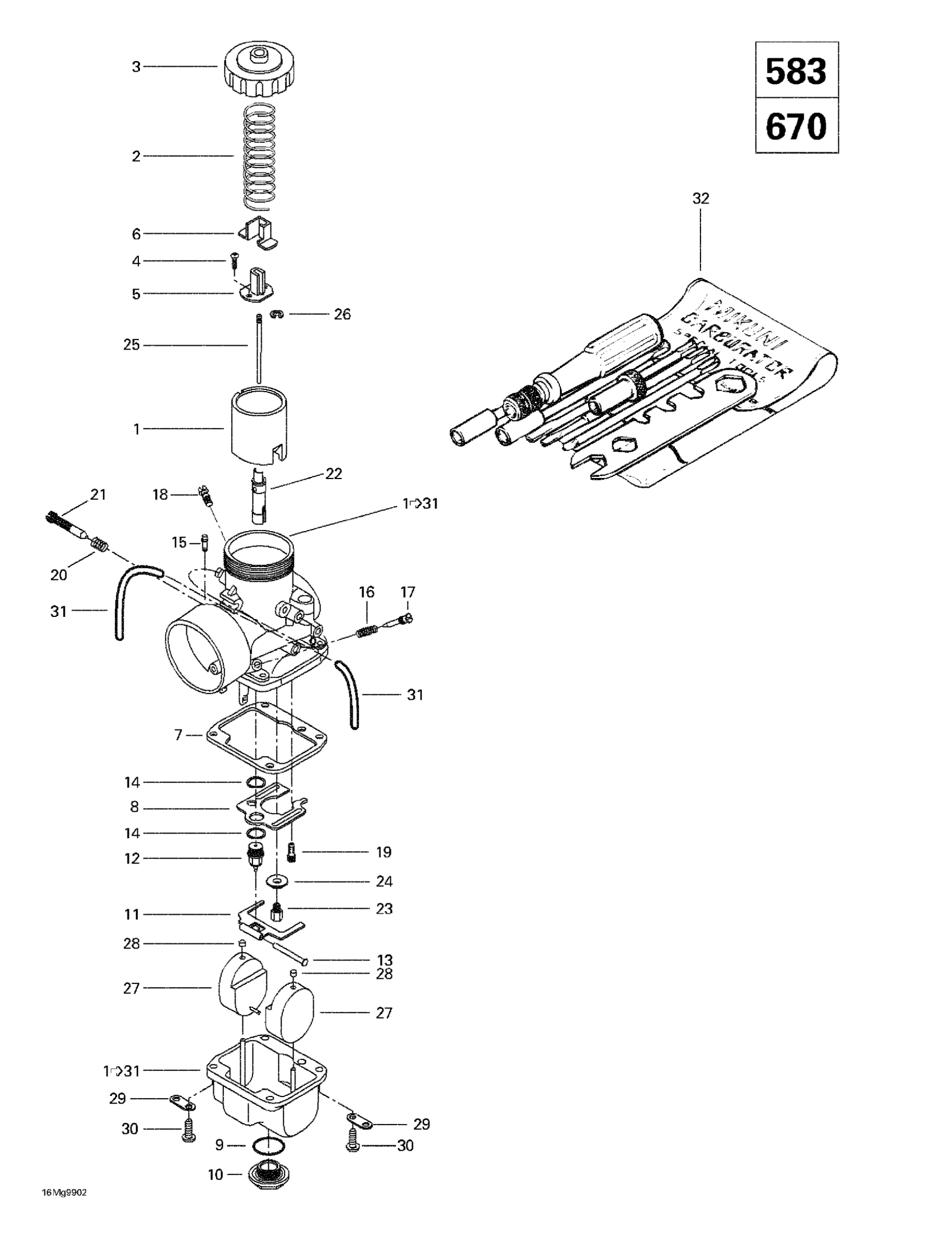

Ski-Doo Formula Z 500/583/670, 1999 02- Carburetors (583, 670) Diagram

#

Description
Price

1

VM 40-105 Carburetor (PTO) | Formula Z 583.

403138525

Unavailable

VM 40-106 Carburetor (MAG) | Formula Z 583.

403138526

Unavailable

Carburetor VM 40-109 (PTO) | Formula Deluxe 670.

403138513

Unavailable

Carburetor VM 40-110 (MAG) | Formula Deluxe 670.

403138514

Unavailable

1

Piston Valve CA 2.5

404132300

Unavailable

2

Spring

404156500

Unavailable

3

Cover

404126800

Unavailable

4

Screw With Washer

404121300

$4.14

5

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

6

Cover

404128100

Unavailable

7

GASKET - Call your local BRP dealership

404104700

Unavailable

8

Baffle

404112700

Unavailable

9

Washer | Formula Deluxe 500.

404112800

Unavailable

10

Drain Plug Screw | Formula Deluxe 500.

404112900

Unavailable

11

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

12

Needle Valve 1.5

404147400

$42.49

13

Lever Pin

404103300

$6.27

14

Seat Washer

404101600

$3.29

15

Filter | Formula Deluxe 380.

404158900

Unavailable

16

SPRING - Call your local BRP dealership

404139800

Unavailable

17

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

18

Nipple

404153400

$12.16

19

Pilot Jet PJ 60 | Formula Deluxe 670.

404121000

Unavailable

20

Spring

404101700

$4.14

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

Needle Jet 224-AA-2 | Formula Z 583.

404148300

Unavailable

Needle Jet 224-AA-3 | Formula Deluxe 670.

404151800

Unavailable

23

Main Jet MJ 280

404100500

$9.06

Main Jet MJ 310 (MAG) | Skandic 600.

404107800

$8.36

Main Jet 260

404100600

$9.06

Main Jet 290 This part replaces 404162139.

404101100

$11.13

24

Washer

404116700

Unavailable

25

Jet Needle J8-7ECY01 | Formula Z 583.

404157400

Unavailable

Jet Needle J8 7EDY1 | Formula Deluxe 670.

404156700

Unavailable

26

E-Ring

404152200

$4.14

27

FLOAT - Call your local BRP dealership

404105400

Unavailable

28

Cap

404105800

$6.38

29

PLATE - Call your local BRP dealership

404103000

Unavailable

30

Screw With Lock Washer

404102000

$3.18

31

Vent Tube | Formula Z 583. Formula Z 670.

404109802

Unavailable

32

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

33

High Altitude Kit, (Not Shown) | Formula Deluxe 583.

861767200

Unavailable

Hight Altitude Kit, (Not Shown) | Formula Deluxe 670.

861767100

Unavailable
