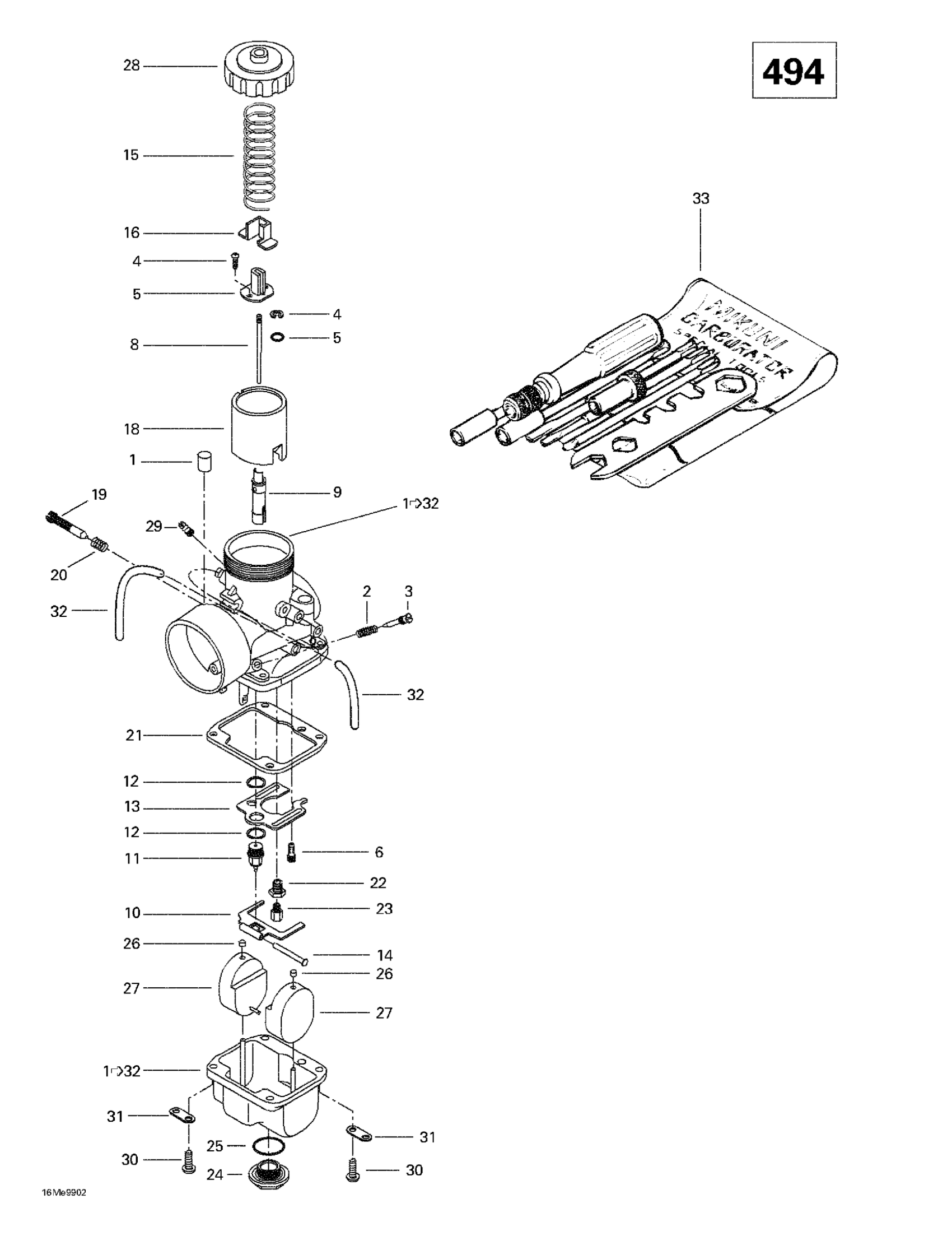

Ski-Doo Formula Z 500/583/670, 1999 02- Carburetors (494) Diagram
#
Description
Price
1
Carburetor VM 38-408 (PTO) | Formula Deluxe 500 LC.
403138527
Unavailable
Carburetor VM 38-409 (MAG) | Formula Deluxe 500 LC.
403138528
Unavailable
1
Filter | Formula Deluxe 380.
404158900
Unavailable
2
SPRING - Call your local BRP dealership
404139800
Unavailable
3
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
6
PILOT JET 50 - Call your local BRP dealership
404109500
Unavailable
8
Jet Needle J8 6DGY09
404161820
Unavailable
9
Needle Jet NJ-480-Q3
404160900
Unavailable
10
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
17
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
18
Piston Valve CA 2.5
404131300
Unavailable
19
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
21
GASKET - Call your local BRP dealership
404104700
Unavailable
24
DRAIN PLUG SCREW - Call your local BRP dealership
404105600
Unavailable
25
O-RING - Call your local BRP dealership
404101500
Unavailable
27
FLOAT - Call your local BRP dealership
404105400
Unavailable
28
COVER - Call your local BRP dealership
404105100
Unavailable
31
PLATE - Call your local BRP dealership
404103000
Unavailable
32
Air Vent Tube
404161802
Unavailable
33
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
34
High Altitude Kit, (Not Shown) | Formula Deluxe 500 LC.
861767300
Unavailable
