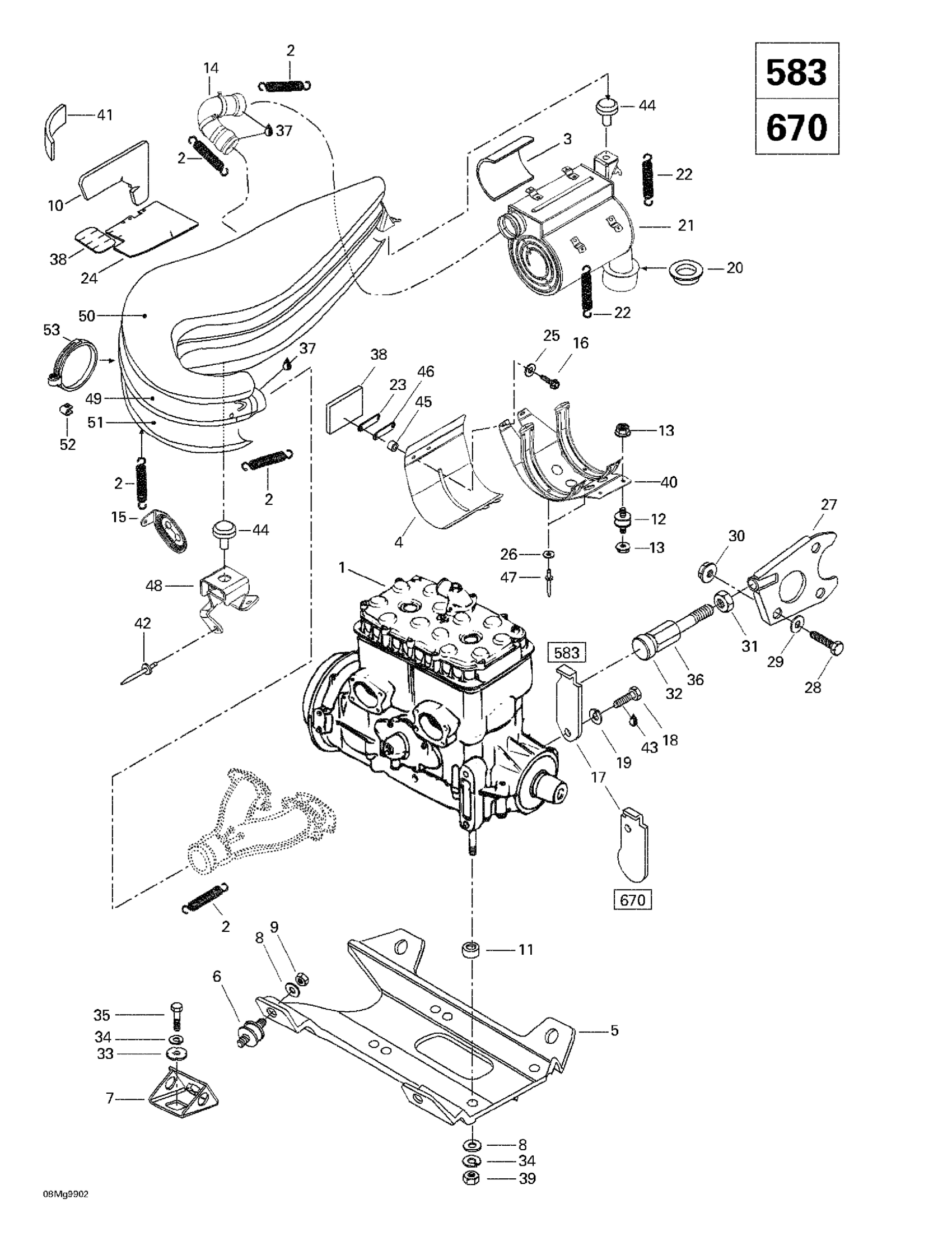

Ski-Doo Formula Z 500/583/670, 1999 01- Engine Support And Muffler (583, 670) Diagram

#

Description
Price

1

<<583>> Engine | Formula Z 583.

400509705

Unavailable

<<670>> Engine | Formula Z 670.

400604001

Unavailable

2

Spring

415107100

$6.35

3

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

4

Heat Deflector | Formula Deluxe 583. Formula Deluxe 670.

514044300

Unavailable

5

Engine Support | Formula Z 500.

512058916

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

7

Engine Support

512050900

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415014900

Unavailable

11

Spacer

503128100

Unavailable

12

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Tail Pipe | Formula Z 583.

514048300

Unavailable

Tail Pipe | Formula Deluxe 583. Formula Deluxe 670.

514044700

Unavailable

15

Pipe Bracket | Formula Deluxe 583. Formula Deluxe 670.

514045100

Unavailable

16

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

17

Stopper Plate | Formula Deluxe 583.

512049100

Unavailable

Stopper Plate

512052900

Unavailable

18

Hex. Screw M8 x 16

207181644

$1.15

Hex. Screw M6 X 16

207161644

$0.74

19

Lock Washer 8 mm

234181401

$0.92

Lock Washer M6, Black

234161471

$0.53

20

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

21

Muffler | Formula Deluxe 583. Formula Deluxe 670.

514044400

Unavailable

22

Spring

414851600

Unavailable

23

Side Bracket

517267100

Unavailable

24

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415049500

Unavailable

25

Flat Washer 6 mm

234061410

$1.36

26

Washer

517124300

$0.19

27

Plate | Formula Z 583. Formula Z 670.

512055500

Unavailable

28

Hex. Screw M8 X 25

207182544

$0.90

29

Flat Washer 8 mm

234081410

$0.83

30

Hex. Elastic Stop Nut M8

232581414

$0.56

31

Nut Hexagonal RH.

232026414

$1.48

32

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

33

Lock Washer

512056700

$3.17

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Hex. Screw M10 X 25

207102544

$1.37

36

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

38

Reflection Plate | Formula Deluxe 583. Formula Deluxe 670.

414706200

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.37

40

Support Ass'y | Formula Deluxe 583. Formula Deluxe 670.

514044200

Unavailable

41

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

42

Pop Rivet 3/16"

390906800

$0.93

43

Loctite 271, 10 ml

293800005

$26.99

44

Rubber Bumper

514053654

$50.99

45

Rubber Spacer | Formula Deluxe 583. Formula Deluxe 670.

570049300

Unavailable

46

Reinforcement | Formula Deluxe 583. Formula Deluxe 670.

514045200

Unavailable

47

Pop Rivet 3/16"

390402200

$0.35

48

Pipe Support | Formula Deluxe 583. Formula Deluxe 670.

514044500

Unavailable

49

Tuned Pipe Ass'y | Includes 25 - 29. Formula Deluxe 583. Formula Deluxe 670.

514052803

Unavailable

50

Upper Shell | Formula Deluxe 583. Formula Deluxe 670.

514052808

Unavailable

51

Lower Shell | Formula Deluxe 583. Formula Deluxe 670.

514052809

Unavailable

52

Cleat

514046503

Unavailable

53

Norma Clamp

514052924

$14.22
