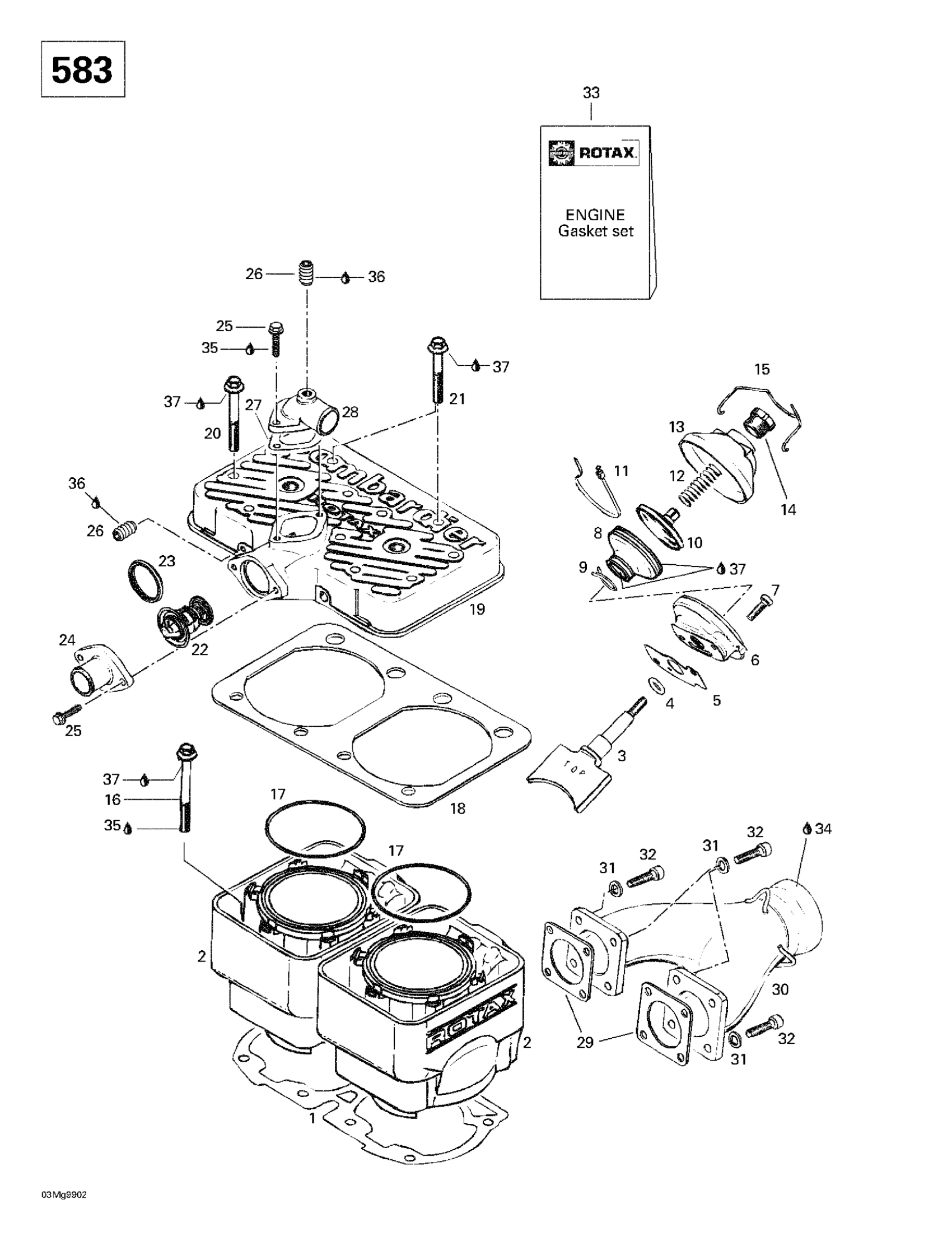

Ski-Doo Formula Z 500/583/670, 1999 Cylinder, Exhaust Manifold (583) Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420931185

Unavailable

2

Cylinder With Sleeve | Formula Deluxe 583.

420923670

Unavailable

3

Exhaust Valve | Formula Deluxe 583.

420854310

Unavailable

4

O-Ring

420430110

$4.15

5

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420230256

Unavailable

6

Valve Rod Housing | Formula Deluxe 583.

420253275

Unavailable

7

Socket Head Screw M6 x 16

420241237

$2.12

8

Bellow

420260721

$49.22

9

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

12

SPRING - Call your local BRP dealership

420239948

Unavailable

13

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Screw M8 x 90 | Formula Deluxe 583.

420440366

Unavailable

17

O-Ring This part replaces 420850540.

293300026

$3.06

18

RUBBER GASKET - Call your local BRP dealership | Formula Deluxe 583.

420850560

Unavailable

19

Cylinder head | Formula Deluxe 583.

420923051

Unavailable

20

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

21

Hex. Screw M8 X 56.5

420941627

$8.09

22

Thermostat This part replaces 414834100.

420922519

$57.43

23

SEALING RING - Call your local BRP dealership

420931270

Unavailable

24

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

25

Hex.Screw M6 X 20

420441311

$4.87

26

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

27

Gasket

420850338

$9.97

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

29

Gasket

420850552

$7.69

30

Exhaust Manifold | Formula Deluxe 583.

420973989

Unavailable

31

Lock Washer M6, Black

234161471

$0.51

32

Socket Head Screw M6 X 25

205062544

$1.01

33

Gasket Set | Formula Deluxe 583.

420997805

Unavailable

34

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

35

Loctite 243, 10 ml

293800060

$21.49

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

37

Dow Corning 111, 150 g

413707000

$59.99
