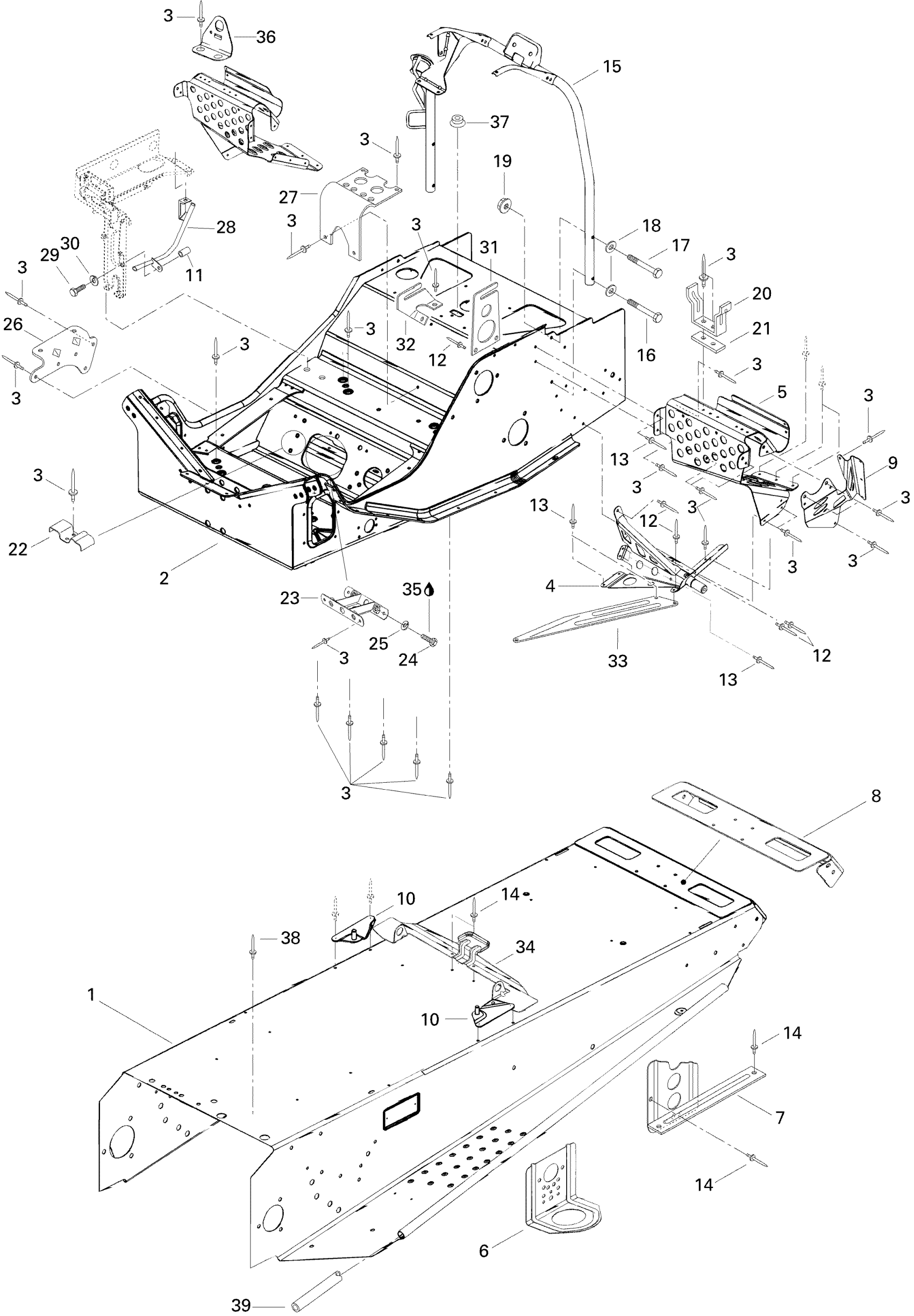

Ski-Doo Formula Z, 1996 09- Frame and Components Formula Z Diagram

#

Description
Price

1

Tunnel

518313241

Unavailable

2

Front Member

518313041

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

4

RH Support

518312901

Unavailable

5

RH Front Footrest

518312906

Unavailable

5

LH Front Footrest

518312907

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket

518312925

Unavailable

7

RH Rear Bracket

518312926

Unavailable

8

Cap-End

518310211

Unavailable

9

Side Plate L.H

518312908

Unavailable

9

Side Plate R.H

518312909

Unavailable

10

RH Tank Bracket

518304735

Unavailable

10

LH Tank Bracket

518304736

Unavailable

11

Polyurethane Hose 10000Mm Long

219704410

$56.99

12

Avex Rivet

390909200

$0.30

13

Avex Rivet

390909100

$0.30

14

Pop Rivet 3/16"

390402400

$0.35

15

Handle Steering Support

518304743

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.37

18

Flat Washer 6 mm

234061410

$1.36

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Protector

518207800

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Rope Guide

517274800

Unavailable

29

Hex. Screw M6 X 16

207161644

$0.74

30

Lock Washer M6, Black

234161471

$0.53

31

External Bracket

517252000

Unavailable

32

Internal Bracket

518310209

Unavailable

33

RH Reinf. Plate

518312929

Unavailable

33

LH Reinf. Plate

518312930

Unavailable

34

Seat Bracket

518310208

Unavailable

35

Loctite 271, 10 ml

293800005

$26.99

36

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

37

CAP - Call your local BRP dealership

414859400

Unavailable

38

Pop Rivet 3/16"

390402300

$0.75

39

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable
