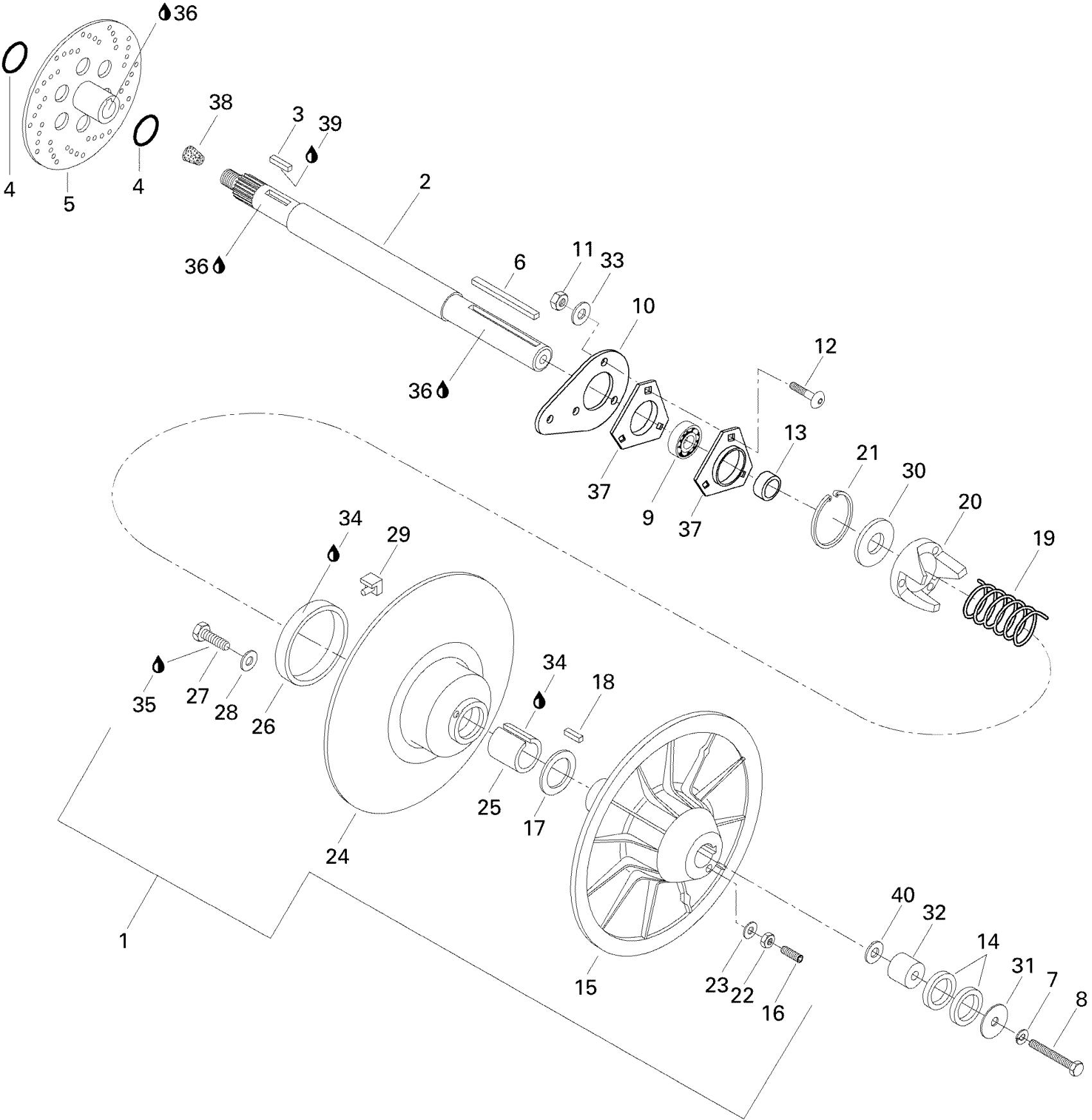

Ski-Doo Formula Z, 1996 05- Driven Pulley Formula Z Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Countershaft | Formula Z.
504139400
Unavailable
3
KEY - Call your local BRP dealership
507021300
Unavailable
4
O'RING - Call your local BRP dealership
414928900
Unavailable
5
Brake Disk Ass’y
507029800
Unavailable
6
Key
414581300
Unavailable
9
BALL BEARING WITH COLLAR - Call your local BRP dealership
405408300
Unavailable
10
Spacer
501022300
Unavailable
12
Allen Screw M8 x 25
732601156
Unavailable
13
Shim
504128300
Unavailable
14
SHIM - Call your local BRP dealership
504108200
Unavailable
15
Fixed Flange
504141600
Unavailable
16
Allen Screw M6 x 30
223563065
Unavailable
17
Thrust Washer
504091500
Unavailable
18
Key
414820800
Unavailable
19
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
20
Cam (50 Deg.)
504096100
Unavailable
20
Cam (47 Deg.) | Grand Touring 583.
504140900
Unavailable
21
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
23
WASHER - Call your local BRP dealership
420245370
Unavailable
24
Sliding Pulley | Includes 24 to 31
504099900
Unavailable
25
BUSHING - Call your local BRP dealership
415011200
Unavailable
26
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
27
SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership
732600022
Unavailable
28
Flat Washer
399910000
Unavailable
29
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
30
Washer
504091400
Unavailable
31
WASHER - Call your local BRP dealership
517078700
Unavailable
32
Counter Shaft Extension
504091600
Unavailable
36
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
37
FLANGE - Call your local BRP dealership
501025000
Unavailable
38
CORK - Call your local BRP dealership
414784800
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
