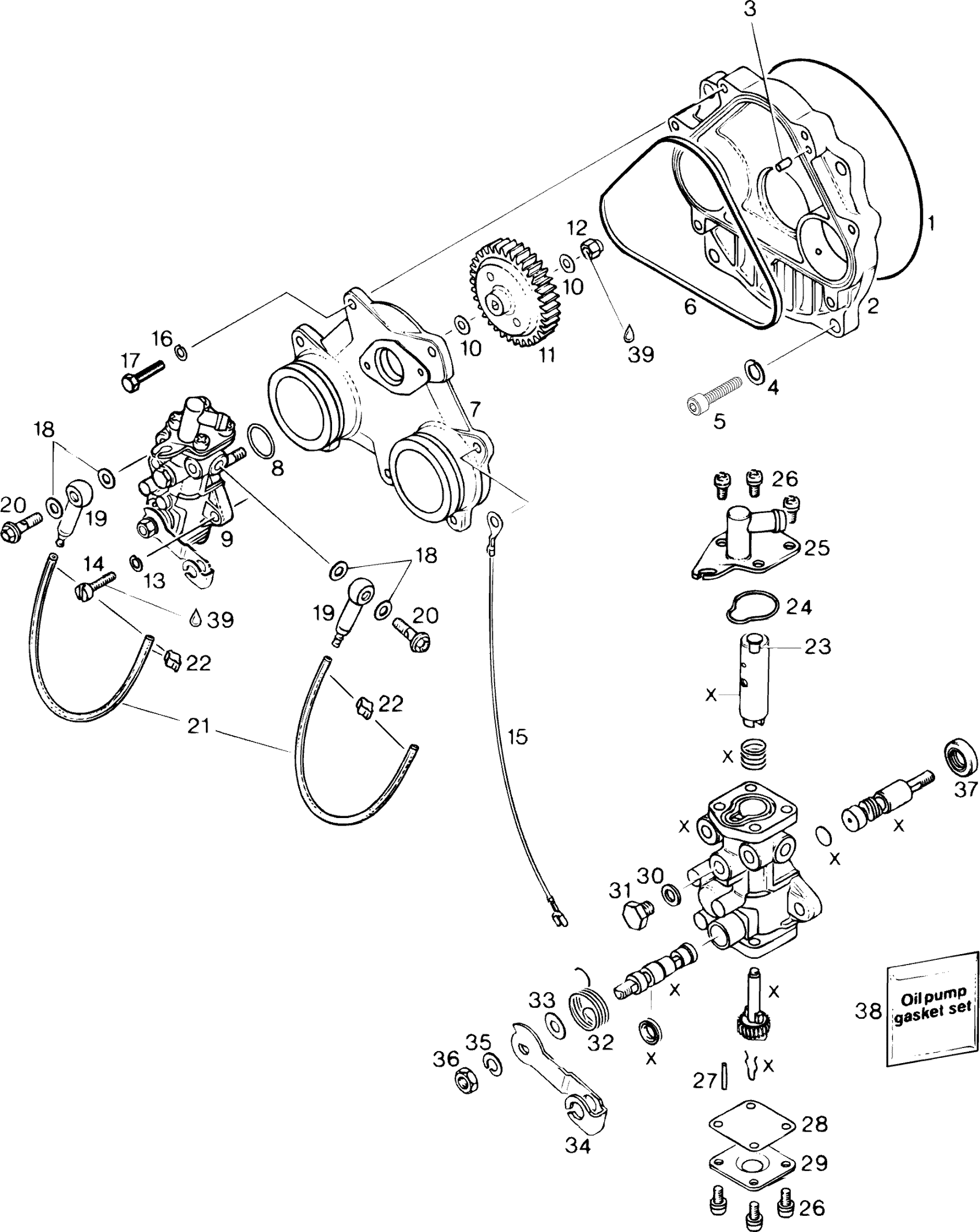

Ski-Doo Formula STX LT(2), 1996 02- Oil Injection System Diagram
#
Description
Price
1
O-Ring
420831360
Unavailable
2
Rotary Valve Cover Ass'y | Skandic Wide Track LC.
420910312
Unavailable
6
Rubber Ring | MX Z 670 HO.
420831700
Unavailable
7
Oil Pump Mounting Flange
420910320
Unavailable
8
O-Ring
420230370
Unavailable
9
Oil Pump Ass‘y
420995523
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 44 Teeth | MX Z 670 HO.
420935940
Unavailable
13
Lock Washer
420945750
Unavailable
14
Cylindrical Slotted Screw M5 x 16
420240761
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
20
Banjo Bolt M6 X 16
404146800
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
O-Ring | Skandic Wide Track. Skandic Super Wide Track.
420230475
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership
420241975
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Gasket
420850200
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
GASKET - Call your local BRP dealership
420227505
Unavailable
32
Spring
420838022
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Lever
420848253
Unavailable
35
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
36
Hex. Nut M6 | Tundra.
420242621
Unavailable
37
Oil Seal
420850230
Unavailable
38
GASKET SET - Call your local BRP dealership
420995045
Unavailable
