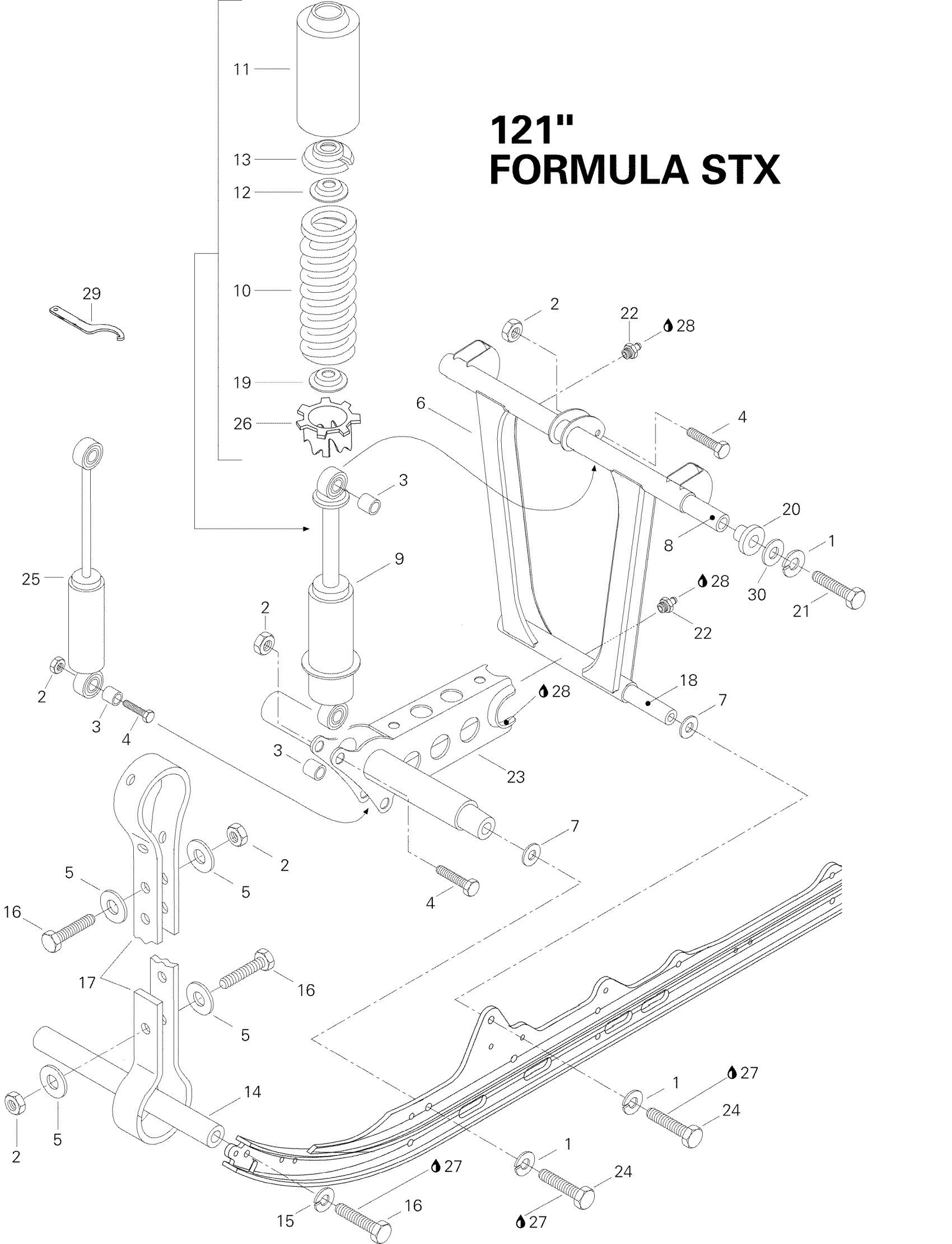

Find the part on the Front ARM STX diagram for your 1996 Ski-Doo Formula STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Ski-Doo Formula STX Front ARM STX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

—
Out of stock

2

Hex. Elastic Stop Nut M8

232581414

5
Out of stock

3

CUSHION - Call your local BRP dealership

414802600

—
Out of stock

4

Hex. Screw M8 X 40

207084044

3
Out of stock

5

WASHER - Call your local BRP dealership

517078700

—
Out of stock

6

Welded Front Arm

503167400

—
Out of stock

7

Hard Washer | Formula DLX 500 LC.

503007900

—
Out of stock

8

SHAFT - Call your local BRP dealership

503190387

—
Out of stock

9

Shock | Summit 500.

414975700

—
Out of stock

10

Center Spring

414956200

—
Out of stock

11

Protector

503193663

1
Out of stock

12

Cap

706200785

1
Out of stock

13

Spring Stopper

706200881

1
Out of stock

14

Axle

503151600

1

$15.35

In stock

15

Lock Washer 8 mm

234181401

2
Out of stock

16

Hex. Screw M8 X 30

207183044

4

$0.92

In stock

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

—
Out of stock

18

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

—
Out of stock

19

GUIDE_SPRING - Call your local BRP dealership

503165100

—
Out of stock

20

Cushion | Formula 500. Formula 500 Deluxe.

414894900

—
Out of stock

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

—
Out of stock

22

Grease Fitting

408200700

2
Out of stock

23

Welded Shock Support

503167500

—
Out of stock

24

4

$1.42

In stock

25

Shock | Summit 500.

414975800

—
Out of stock

26

Cam

503169000

—
Out of stock

27

Loctite 271, 10 ml

293800005

1
Out of stock

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

—
Out of stock

29

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

—
Out of stock

30

Flat Washer 10 mm

234001410

2
Out of stock
