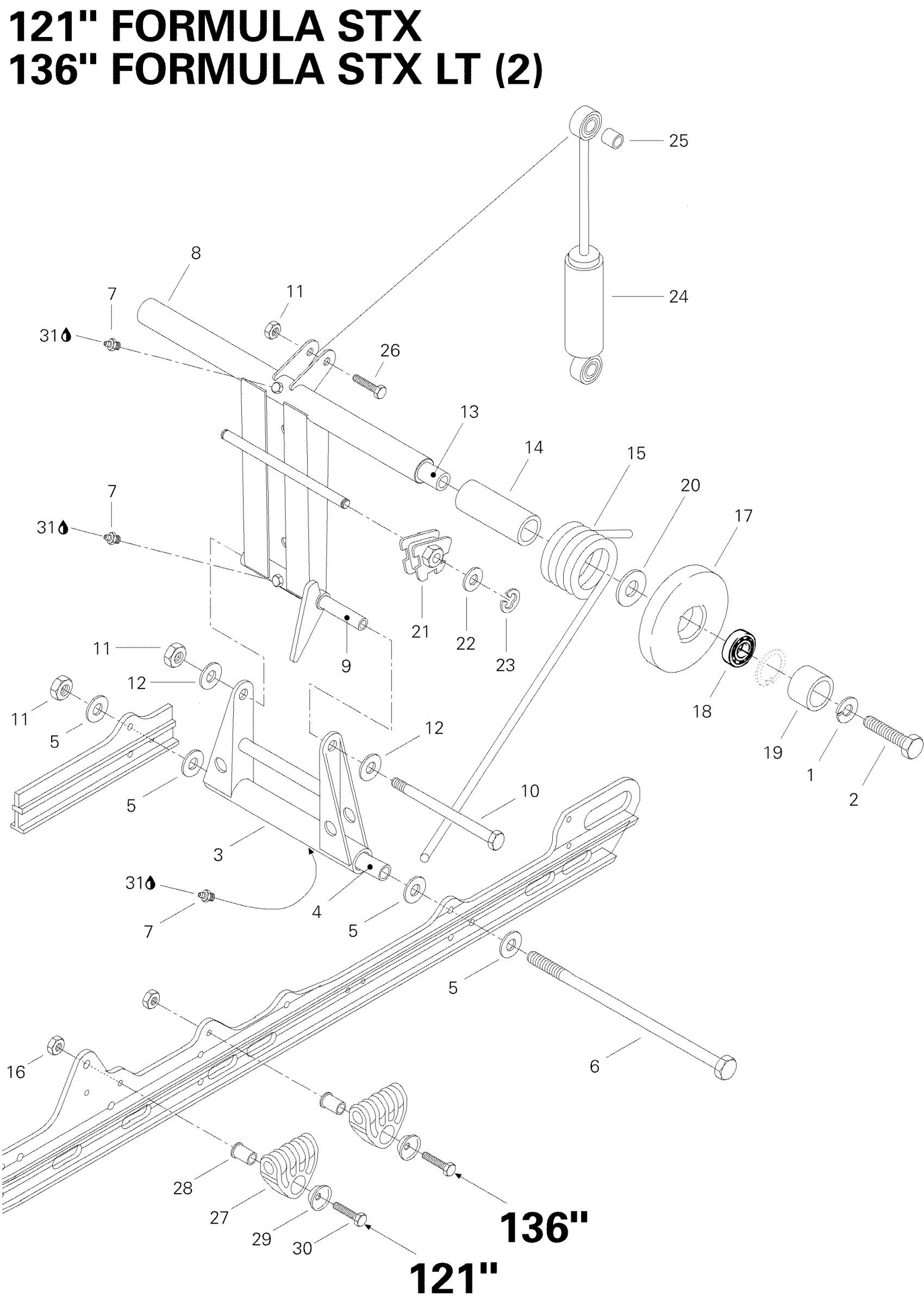

Ski-Doo Formula STX, 1996 Rear Arm STX Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Screw M10 X 35

207103544

$1.42

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.97

7

Grease Fitting

408200700

$2.80

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.98

10

Bolt M8, Short

732601197

$15.06

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Flat Washer 8 mm

234081410

$0.69

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH SPRING - Call your local BRP dealership

414943500

Unavailable

15

LH SPRING - Call your local BRP dealership

414943600

Unavailable

16

Elastic Stop Nut M6

232561414

$1.55

17

Idler Wheel 144 | Includes 17 - 18.

415005600

Unavailable

18

Ball Bearing

405404600

$24.58

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.58

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

21

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

e Circlip

371907100

Unavailable

24

Shock | Summit 500.

414975800

Unavailable

25

CUSHION - Call your local BRP dealership

414802600

Unavailable

26

Hex. Screw M8 X 40

207084044

$0.92

27

Spring Support

503189657

$10.20

28

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

29

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

30

Hex. Screw M6 X 45

207064544

$2.02

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
