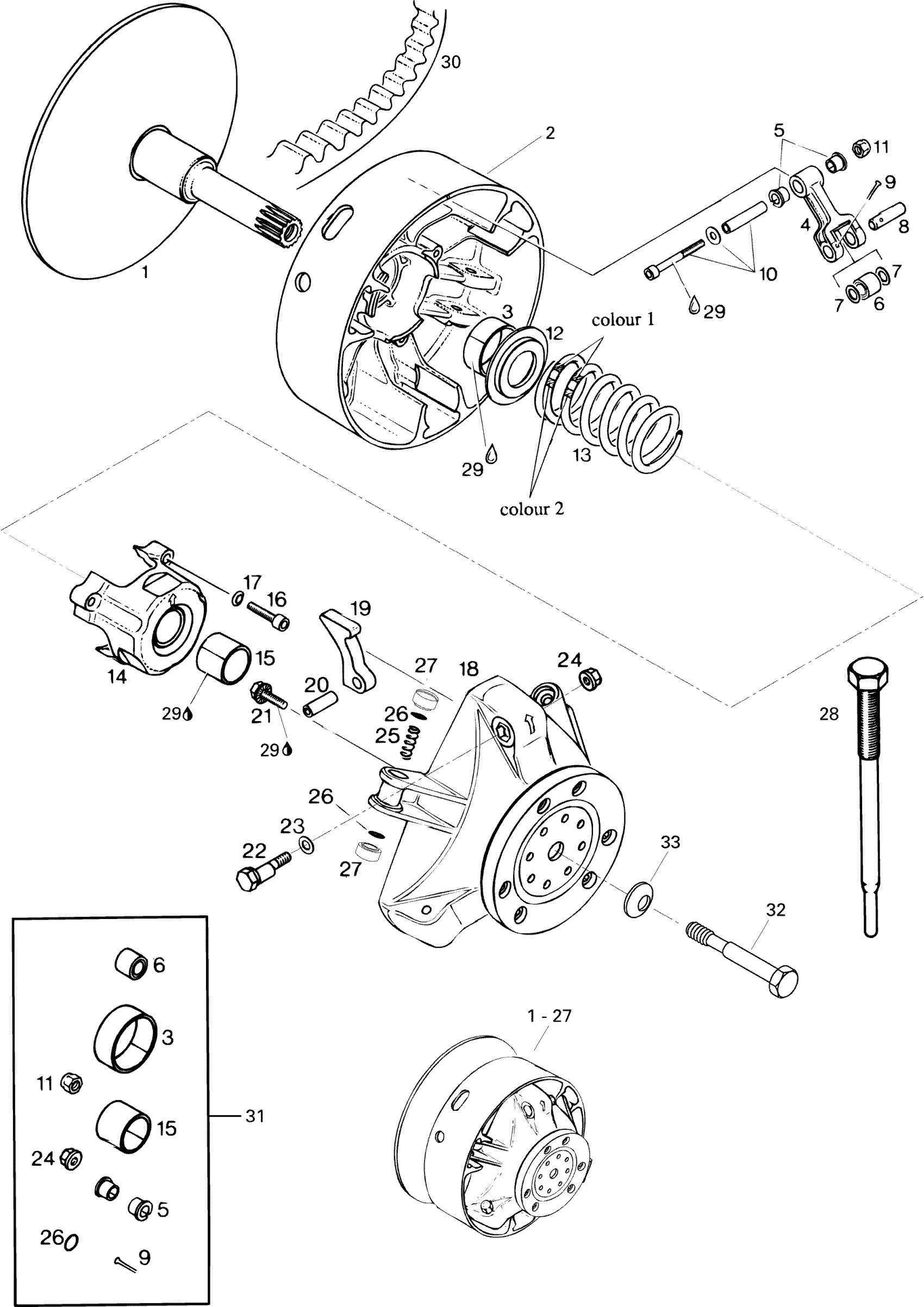

Ski-Doo Formula STX, 1996 05- Drive Pulley STX Diagram
#
Description
Price
1
Drive Pulley Ass‘y | Includes 1 to 27
417210800
Unavailable
1
Inner Half Ass‘y
420480417
Unavailable
2
OUTER HALF ASS?Y - Call your local BRP dealership | Includes 3 to 4
420480297
Unavailable
3
BUSHING OUTER HALF - Call your local BRP dealership
420433173
Unavailable
4
Lever Ass‘y | Includes 5 to 6
420448455
Unavailable
10
Fitting Screw
420440166
Unavailable
12
Spring Seat
420427392
Unavailable
14
Spring Cover Ass‘y | Includes 15 to 16
420412287
Unavailable
16
Socket Screw M6 X 40
205064086
Unavailable
17
WASHER - Call your local BRP dealership
420245370
Unavailable
18
Governor Cup
420480395
Unavailable
19
Ramp (228)
420480228
Unavailable
20
Dowel Tube M8 x 24
420429150
Unavailable
21
Hex. Locking Screw M6 x 20
420440180
Unavailable
22
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
23
Washer | Skandic Super Wide Track.
420927941
Unavailable
31
Clutch Repair Kit
420483325
Unavailable
32
Bolt, Drive Pulley | Formula Deluxe 583.
417120100
Unavailable
