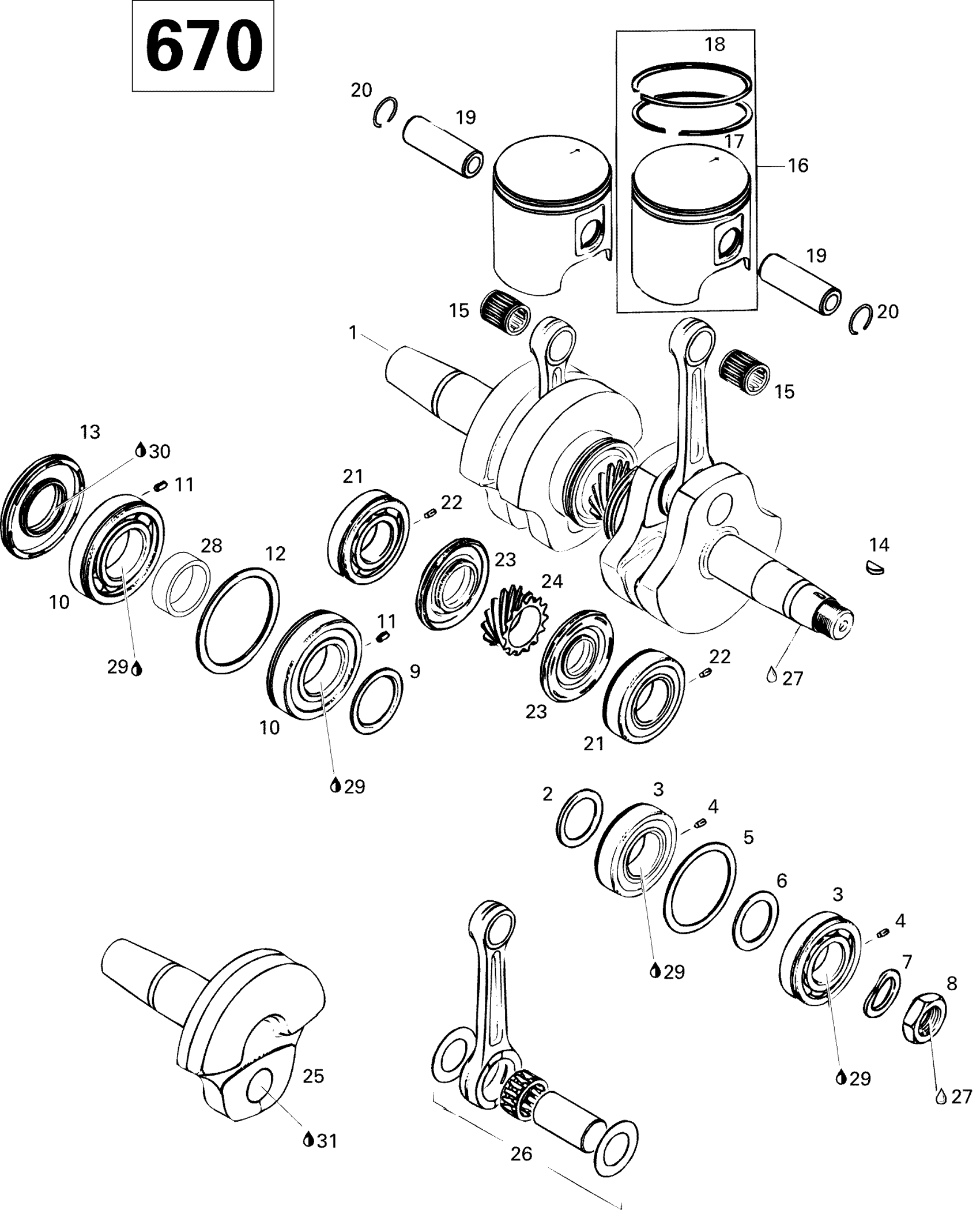

Ski-Doo Formula SS, 1996 Crankshaft And Pistons 670 Diagram

#

Description
Price

1

Crankshaft Ass'y

420887037

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Lock Washer, 22 mm

420945759

Unavailable

8

Hex. Nut, M22 X 1.5

420842239

Unavailable

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

Ball Bearing

420832573

Unavailable

11

Dowel Pin

420929972

Unavailable

12

Retaining Disk

420927710

Unavailable

13

Oil Seal This part replaces 290831952.

420831952

Unavailable

14

Woodruff Key

420246015

Unavailable

15

Needle Cage

420832040

Unavailable

16

Piston Ass‘y. (Ring 78.0 mm) | Includes 16 to 18

420886535

Unavailable

16

Piston Ass‘y. (Ring 78.25 mm) | Includes 16 to 18

420886536

Unavailable

17

Rectangular Ring 78.0 mm | MX Z 670.

420815020

Unavailable

17

Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.

420815021

Unavailable

18

SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.

420815090

Unavailable

18

Semi-Trapez Ring 78.25 mm

420815031

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

20

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

21

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

22

Dowel Pin

420929972

Unavailable

23

Oil Seal

420831990

Unavailable

24

Central Gear 14 Teeth

420935748

Unavailable

25

Half Crankshaft (P.T.O.)

420818702

Unavailable

26

Crankshaft Rod Repair Kit (P.T.O. Side)

420886428

Unavailable

26

Crankshaft Rod Repair Kit (MAG Side)

420886429

Unavailable

27

Loctite 243, 10 ml

293800060

$20.77

28

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Dow Corning 111, 150 g

413707000

$57.82

31

Sealant Loctite 648

219703000

Unavailable
