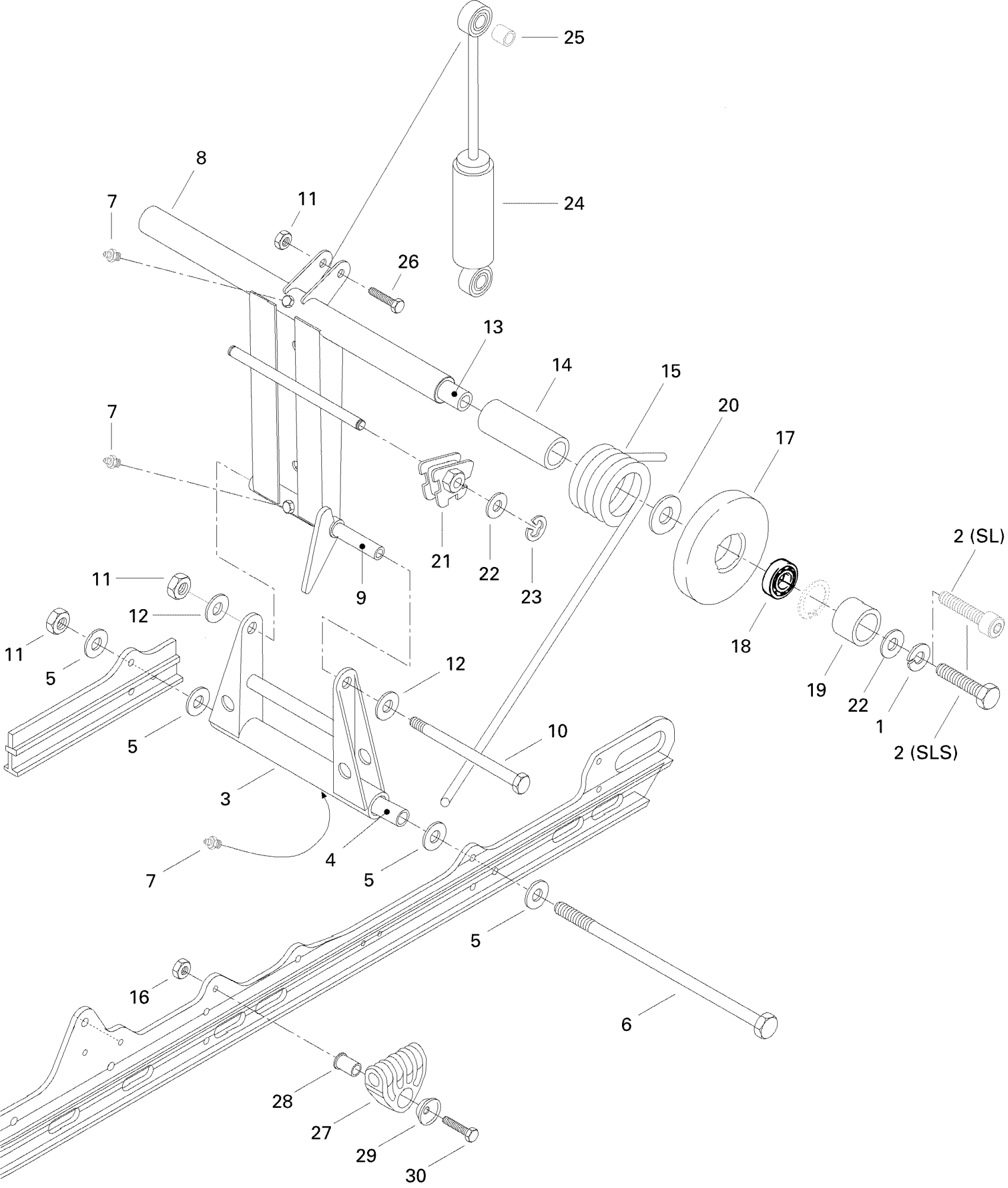

Ski-Doo Formula SLS, 1996 08- Rear Arm Formula SLS Diagram

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Pivot Arm

503152200

Unavailable

Lower Axle Pivot

503154703

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Bolt M8 X 248mm

503192440

$30.49

Grease Fitting

408200700

$3.49

Welded Rear Arm

503151200

Unavailable

Upper Axle, Pivot Arm

503144300

$11.65

Bolt M8, Short

732601197

$15.36

Hex. Elastic Stop Nut M8

232581414

$0.56

Flat Washer 8 mm

234081410

$0.83

Transversal Rear Axle

503151400

Unavailable

Bushing

572047800

Unavailable

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Idler Wheel 144 | Includes 17 - 18.

415005600

Unavailable

Ball Bearing

405404600

$25.99

Spacer

503154200

Unavailable

Washer

503144900

$2.79

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

Flat Washer 10 mm

234001410

$1.26

e Circlip

371907100

Unavailable

Shock | Summit 500.

414975800

Unavailable

CUSHION - Call your local BRP dealership

414802600

Unavailable

Hex. Screw M8 X 40

207084044

$1.15

Spring Support

503189657

$11.99

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

Hex. Screw M6 X 45

207064544

$2.11
