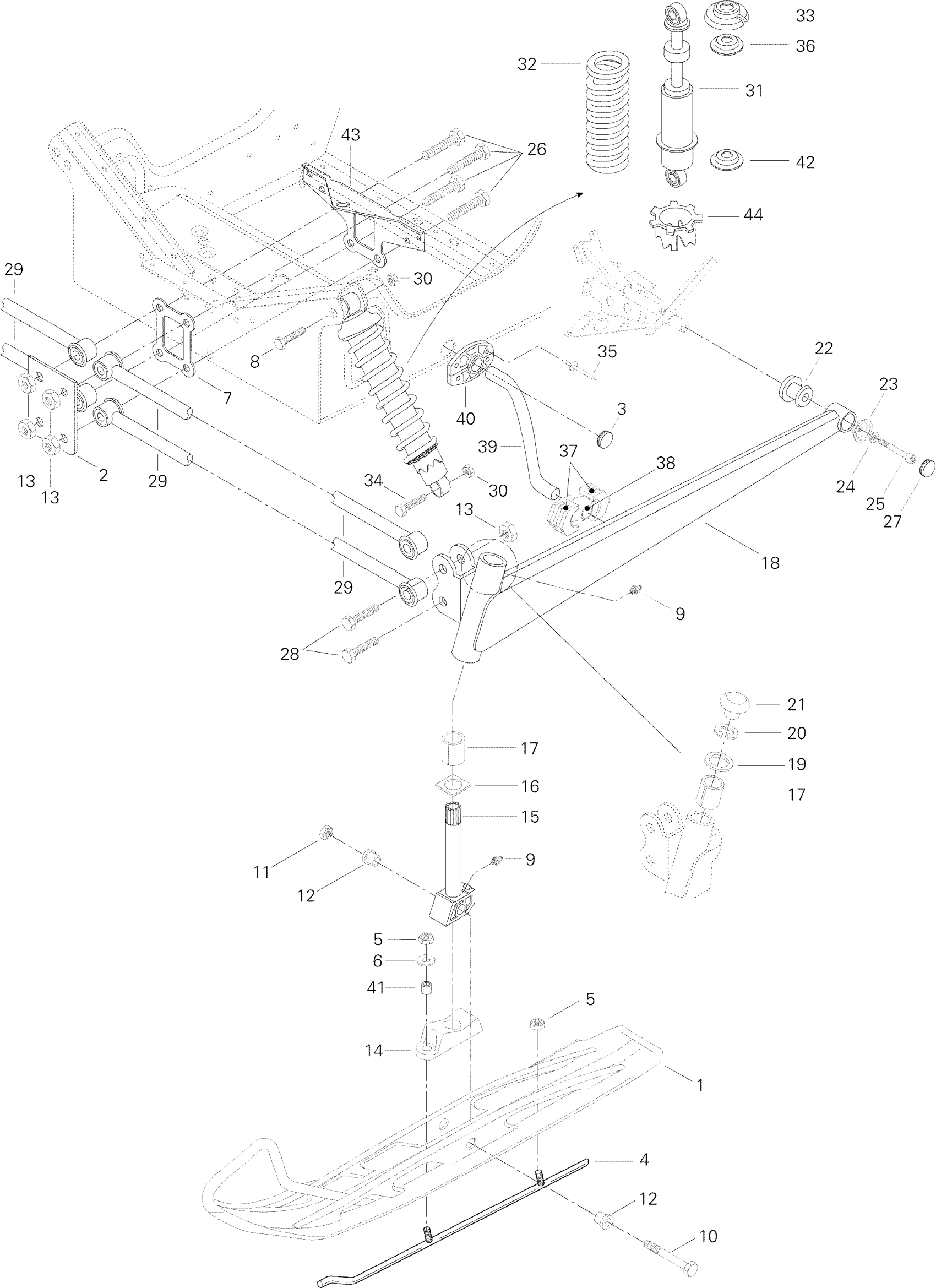

Ski-Doo Formula SLS, 1996 07- Front Suspension And Ski Formula SLS Diagram
#
Description
Price
1
Ski (Welded)
505063910
Unavailable
2
Support
518306700
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Carbide Runner | Includes 48 - 49. Formula Deluxe 500.
505066320
Unavailable
7
Link Plate
506113000
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper
570053500
Unavailable
15
Ski Leg
506130900
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm
506126910
Unavailable
18
RH Swing Arm
506126810
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
21
CAP - Call your local BRP dealership
572079100
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
26
Hex. Screw M12 x 100
732601113
Unavailable
27
CAP - Call your local BRP dealership
572045900
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y | Formula S.
580623100
Unavailable
31
Front Shock
414970000
Unavailable
32
Shock Spring (Red)
414956100
Unavailable
37
Block Sliding
572069800
Unavailable
38
Ball Joint
506127300
Unavailable
39
Stabilisator
506127200
Unavailable
40
Half-Bushing | Formula Deluxe 500.
572077600
Unavailable
41
BUSHING - Call your local BRP dealership
506117300
Unavailable
42
GUIDE_SPRING - Call your local BRP dealership
503165100
Unavailable
43
Rear Link Plate
517254900
Unavailable
44
Cam
503169000
Unavailable
