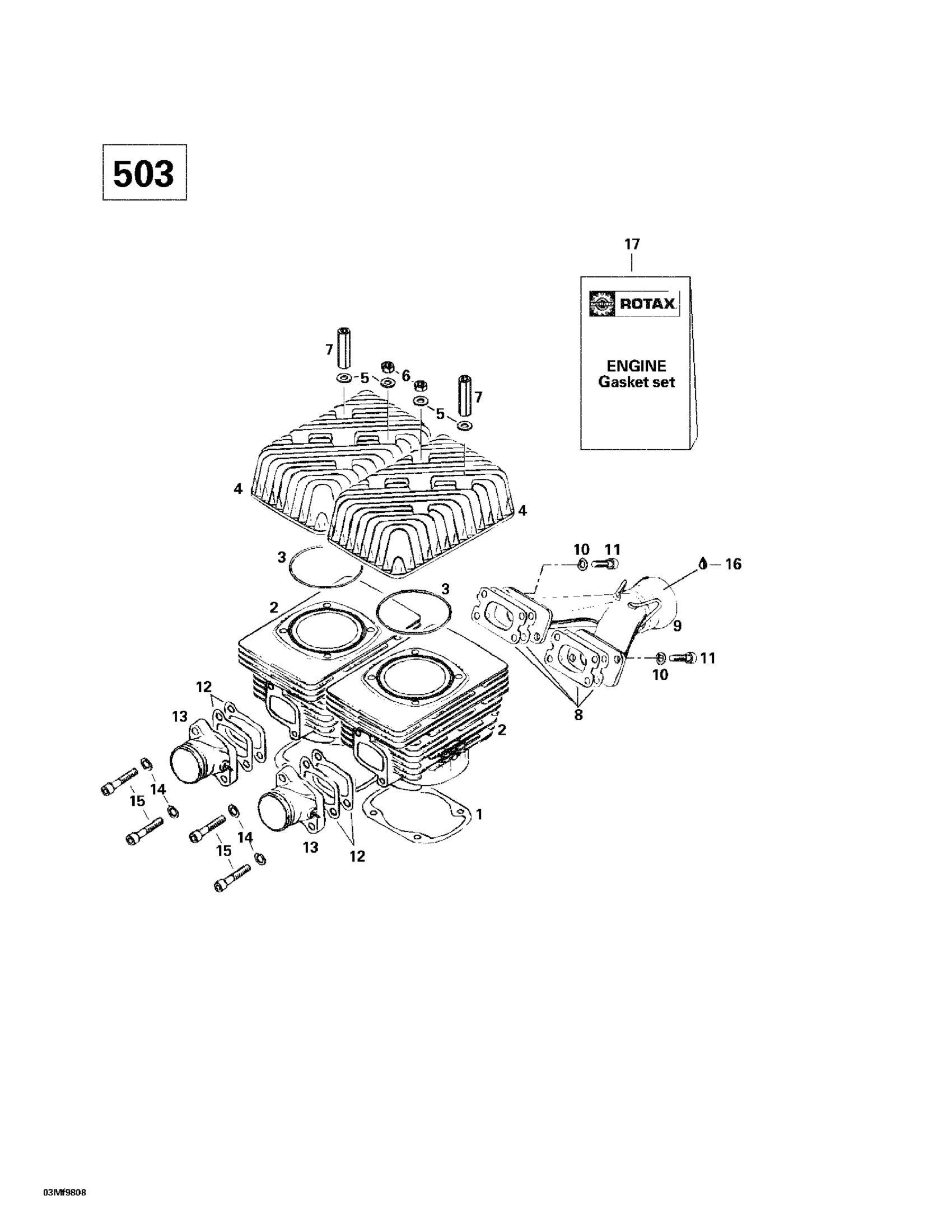

Ski-Doo Formula Sl, 1998 Cylinder, Intake Exhaust Manifold (503) Diagram

#

Description
Price

1

Gasket 0.4 mm

420831858

$11.52

2

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$2.67

4

CYLINDER HEAD - Call your local BRP dealership

420923590

Unavailable

5

Flat Washer 8.4 mm

420250315

$1.09

6

Hex. Nut M8

232081414

$0.60

7

Distance Nut M8 X 47

420842204

$14.54

8

Gasket 1.0 mm

420831849

$7.92

9

Exhaust Manifold Ass'y | MX Z 500 F. Formula DLX 500 F.

420973128

Unavailable

10

Lock Washer 8 mm

234181401

$0.89

11

Socket Head Screw M8 X 30

205083044

$0.92

12

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

13

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

14

Washer-Lock Din.128

420945832

$1.09

15

Allen Screw M8 X 40

420840682

$3.78

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

ENGINE GASKET SET - Call your local BRP dealership

420994238

Unavailable

18

O-Ring, 64 mm X 2 mm

293300022

$10.58

19

Oil Seal This part replaces 290831952.

420831952

$14.27

20

Gasket 0.4 mm

420831858

$11.52

21

O-Ring This part replaces 420850540.

293300026

$2.67

22

Gasket 1.0 mm

420831849

$7.92

23

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

24

Sealing Washer

404146600

$0.62
