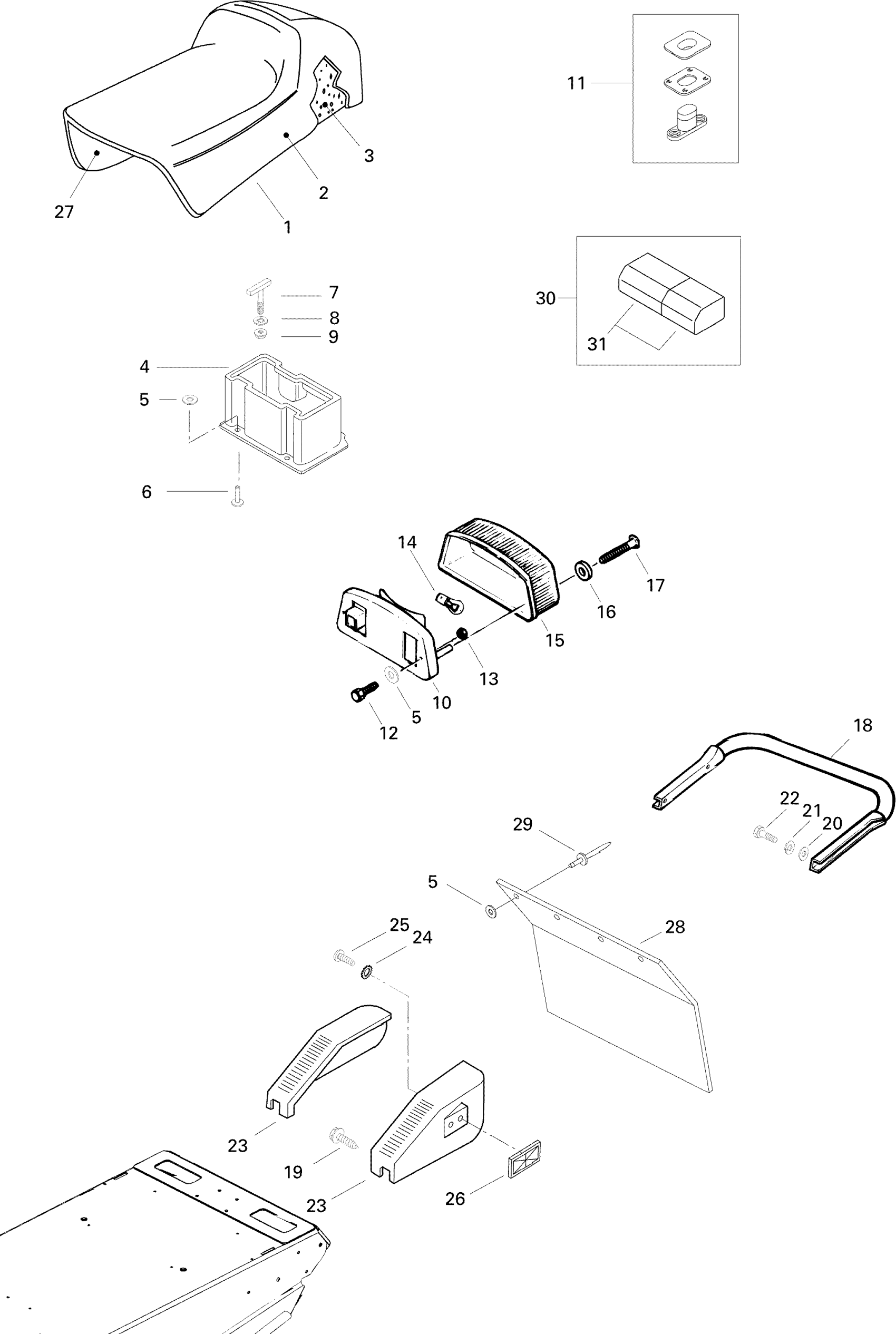

Ski-Doo Formula SL, 1996 09- Seat Formula SL Diagram

#

Description
Price

1

Seat Ass’y (1 pass., Viper Red)

414969601

Unavailable

2

Seat Cover (1 pass.)

414969603

Unavailable

3

Foam Seat

414837100

Unavailable

4

Rear Trunk

572039802

Unavailable

5

Flat Washer

517225900

$0.18

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt M6

732601126

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

Rear Bumper

517243800

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

RH Moulding Ass'y | Includes 26 - 29.

580642000

Unavailable

23

LH Moulding Ass'y

580642100

Unavailable

24

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

25

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

26

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

27

Sub-Seat

572059600

Unavailable

28

Snow Gard (Red) | Formula 500 Deluxe.

572076403

Unavailable

29

Pop Rivet 3/16"

293150100

$1.09

30

Tool Kit

529027900

Unavailable

31

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
