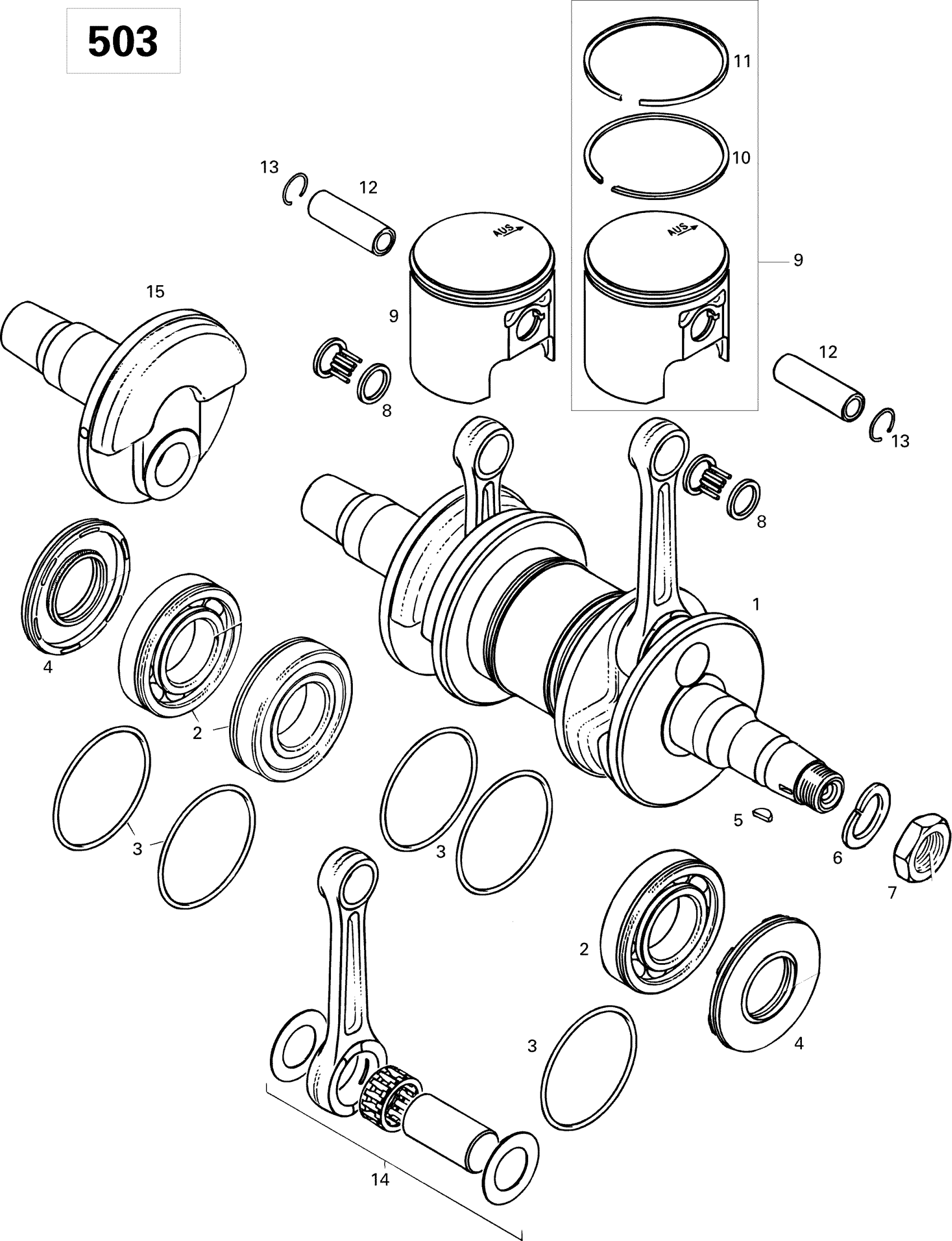

Ski-Doo Formula SL, 1996 01- Crankshaft And Pistons 503 Diagram

#

Description
Price

1

Crankshaft Ass’y

420996446

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

Woodruff Key

420246055

$2.43

6

Lock Washer, 22 mm

420945759

$1.90

7

Hex. Nut, M22 X 1.5

420842239

$17.53

8

Needle Bearing

420832320

$30.49

9

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

9

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

9

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

10

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

10

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

10

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

11

Semi-Trapez Ring 72.00 mm

420215235

Unavailable

11

Semi-Trapez Ring 72.25 mm

420215236

Unavailable

11

Semi-Trapez Ring 72.50 mm

420215237

Unavailable

12

PISTON PIN - Call your local BRP dealership

420916185

Unavailable

13

Piston Circlip

420945735

$4.46

14

Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).

420994564

Unavailable

15

Half Crankshaft PTO | Touring SLE.

420818242

Unavailable
