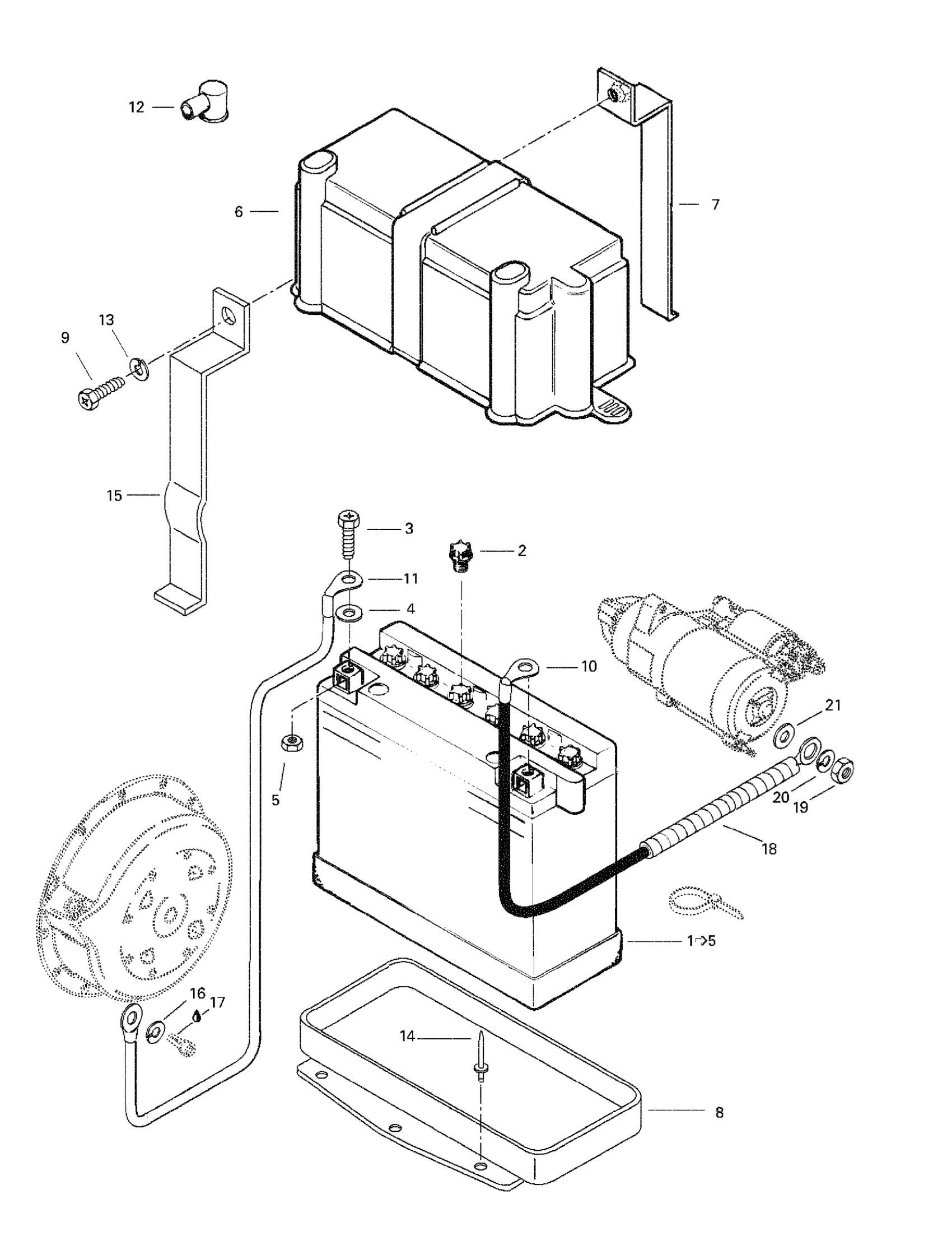

Find the part on the Electrical System 2 diagram for your 1998 Ski-Doo Formula S Electric, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Ski-Doo Formula S Electric Electrical System 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Battery | Includes 4 - 8.

410301100

—
Out of stock

2

Battery Cap

410300800

—
Out of stock

3

Hex. Screw M6 X 16

207161644

2

$0.61

In stock

4

FLAT WASHER - Call your local BRP dealership

391302100

—
Out of stock

5

Hex. Nut M6

232061414

2

$0.44

In stock

6

Battery Cover

570022000

—
Out of stock

7

Steel Strip | Formula Deluxe 380 F.

517286000

—
Out of stock

8

Battery Seat | Formula Deluxe 380 F.

517286200

—
Out of stock

9

Hex. Screw M5 X 20

207152044

1

$0.88

In stock

10

Current Wire

515166700

—
Out of stock

11

Ground Wire | Formula DLX 380. Formula DLX 500.

515157000

—
Out of stock

12

Protection Cap

570151000

1
Out of stock

13

1

$0.46

In stock

14

Pop Rivet 3/16"

390402200

6
Out of stock

15

Steel Strip | Formula Deluxe 380 F.

517286100

—
Out of stock

16

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

—
Out of stock

17

Loctite 271, 10 ml

293800005

1
Out of stock

18

1

$9.40

In stock

19

Hex. Nut M8

232081414

1
Out of stock

20

Washer-Lock Din.128

420945832

1
Out of stock

21

Flat Washer 8 mm

234081410

1
Out of stock
