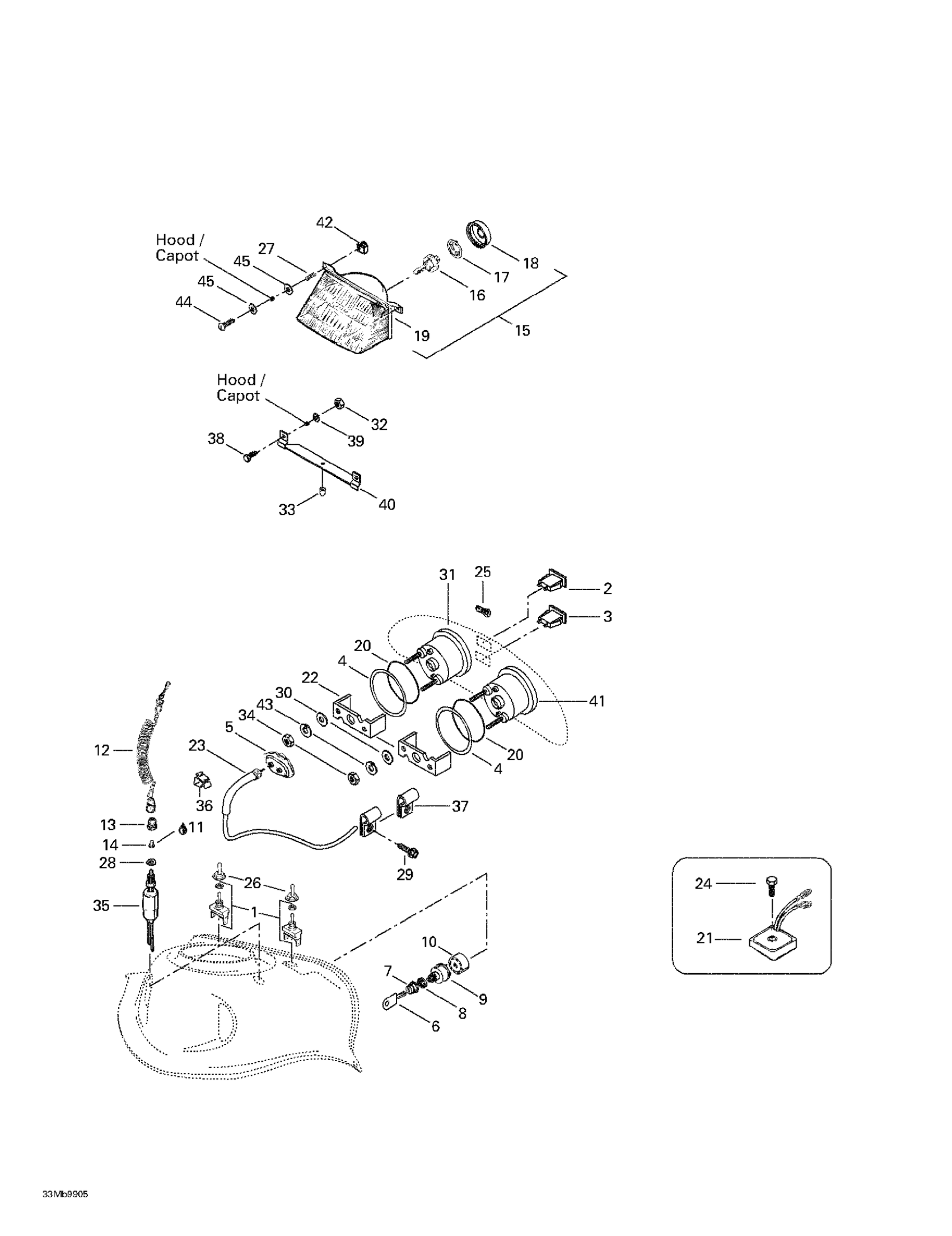

Ski-Doo Formula S, 1999 10- Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Plate | Formula S.

414187300

Unavailable

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Headlamp | Includes 42 to 45

410609100

Unavailable

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

17

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

18

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

19

Headlamp | Includes 53 to 56

410609300

Unavailable

20

O-Ring | Formula S.

414187200

Unavailable

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder | Formula S.

414187400

Unavailable

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

26

Switch Cover

515175281

$15.99

27

Spring

517168600

$7.39

28

Not Available As Spare Part - Friction Washer

Unavailable

29

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

30

Flat Washer

517225900

$0.18

31

Tachometer | Formula Deluxe 500.

415098000

Unavailable

32

Elastic Stop Nut M5

232551414

$0.87

33

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

34

Nut

414806900

Unavailable

35

Brake Switch

515175653

$19.49

36

Clip

414227300

$1.67

37

Open Clamp

414176000

$1.99

38

Hex. Screw M5 X 12

207151244

$0.90

39

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

40

Headlamp Support

517218500

Unavailable

41

Speedometer (KMH) | Formula S.

415096900

Unavailable

Speedometer (KMH)

415097000

Unavailable

Speedometer (MPH)

415097100

Unavailable

42

Projector Nut

572078600

Unavailable

43

Lock Washer

414806700

Unavailable

44

Screw M4 x 40

732603002

Unavailable

45

Flat Washer M5

234051410

$0.53
