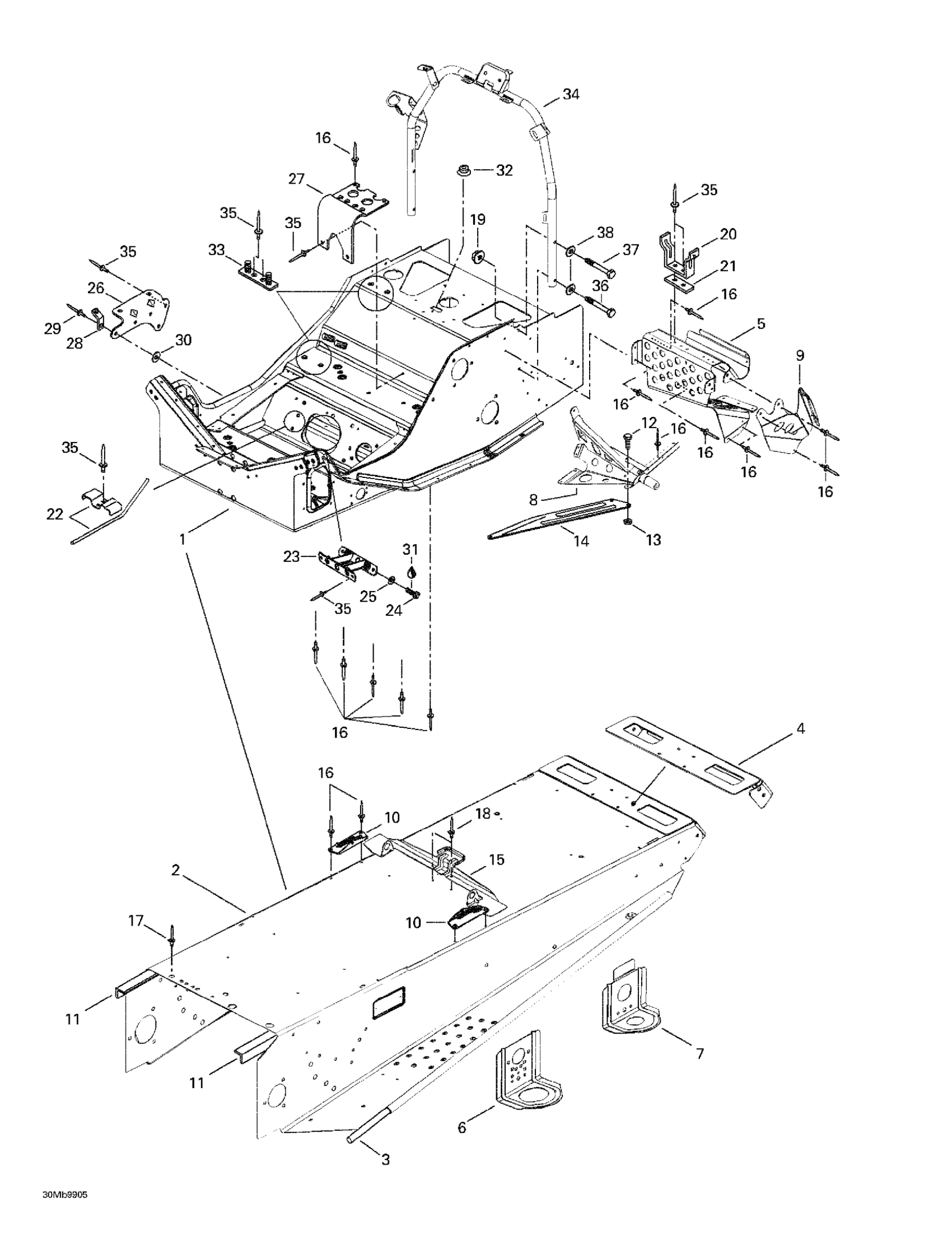

Ski-Doo Formula S, 1999 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 18.

518321641

Unavailable

2

Forming Frame

518321663

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Cap-End

518321301

Unavailable

5

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

6

Front Bracket

518321495

Unavailable

7

Rear Bracket

518308704

Unavailable

8

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Footrest Support

518320506

Unavailable

9

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

LH Tunnel Reinforcement

518316713

Unavailable

RH Tunnel Reinforcement

518316714

Unavailable

12

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

RH Reinf. Plate

518321698

Unavailable

LH Reinf. Plate

518321700

Unavailable

15

Seat Bracket

518317506

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Pop Rivet 3/16"

390402300

$0.75

18

Pop Rivet 3/16"

390402400

$0.35

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

517276100

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support

518316704

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Spring Bracket

514054522

$8.45

29

Pop Rivet 3/16"

390402300

$0.75

30

Flat Washer

517225900

$0.18

31

Loctite 271, 10 ml

293800005

$26.99

32

CAP - Call your local BRP dealership

414859400

Unavailable

33

Support Plate

518315300

Unavailable

34

Handle Steering Support

518321428

Unavailable

35

Pop Rivet 3/16"

390402200

$0.35

36

Hex. Screw M6 X 40

207064044

$1.48

37

Hex. Flange Screw M6 X 35

207063544

$1.37

38

Flat Washer 6 mm

234061410

$1.36
