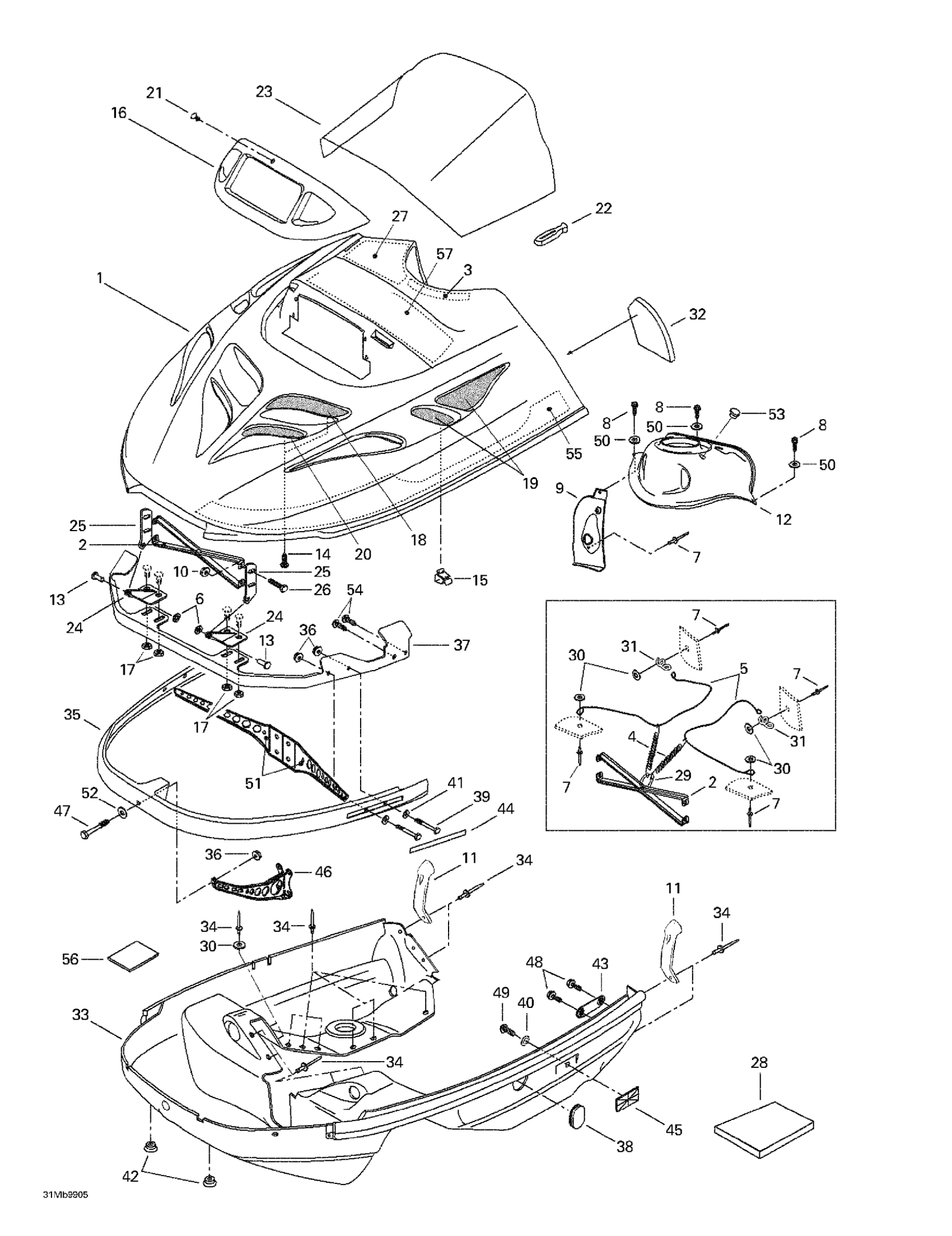

Ski-Doo Formula S, 1999 09- Cab, Console Diagram

#

Description
Price

1

Hood (Purple) | Formula 500 LC.

517302196

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Foam

415050900

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch | Formula S.

517302160

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

$0.88

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Upper Grill | Formula S.

517277000

Unavailable

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

LH Upper Grill

517277102

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill | Formula S.

517265800

Unavailable

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

LH Front Grill

517265903

Unavailable

21

Black, Dart

414644300

$0.98

22

Windshield Latch

570023800

$4.49

23

Low Windshield | Formula S.

414887300

Unavailable

High Windshield

517302106

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Upper Foam

414975000

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

R.H Rear Foam

414883800

Unavailable

LH Rear Foam

414883700

Unavailable

33

Bottom Pan (Black)

572076207

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Washer | DS 650 X

391301600

$0.48

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

$1.37

53

Cap

572051500

$5.89

54

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

55

LH Lower Foam

414883500

Unavailable

Lower Foam R.H | Formula S.

414883600

Unavailable

RH Lower Foam

415048700

Unavailable

56

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

57

Center Foam

414985100

Unavailable
