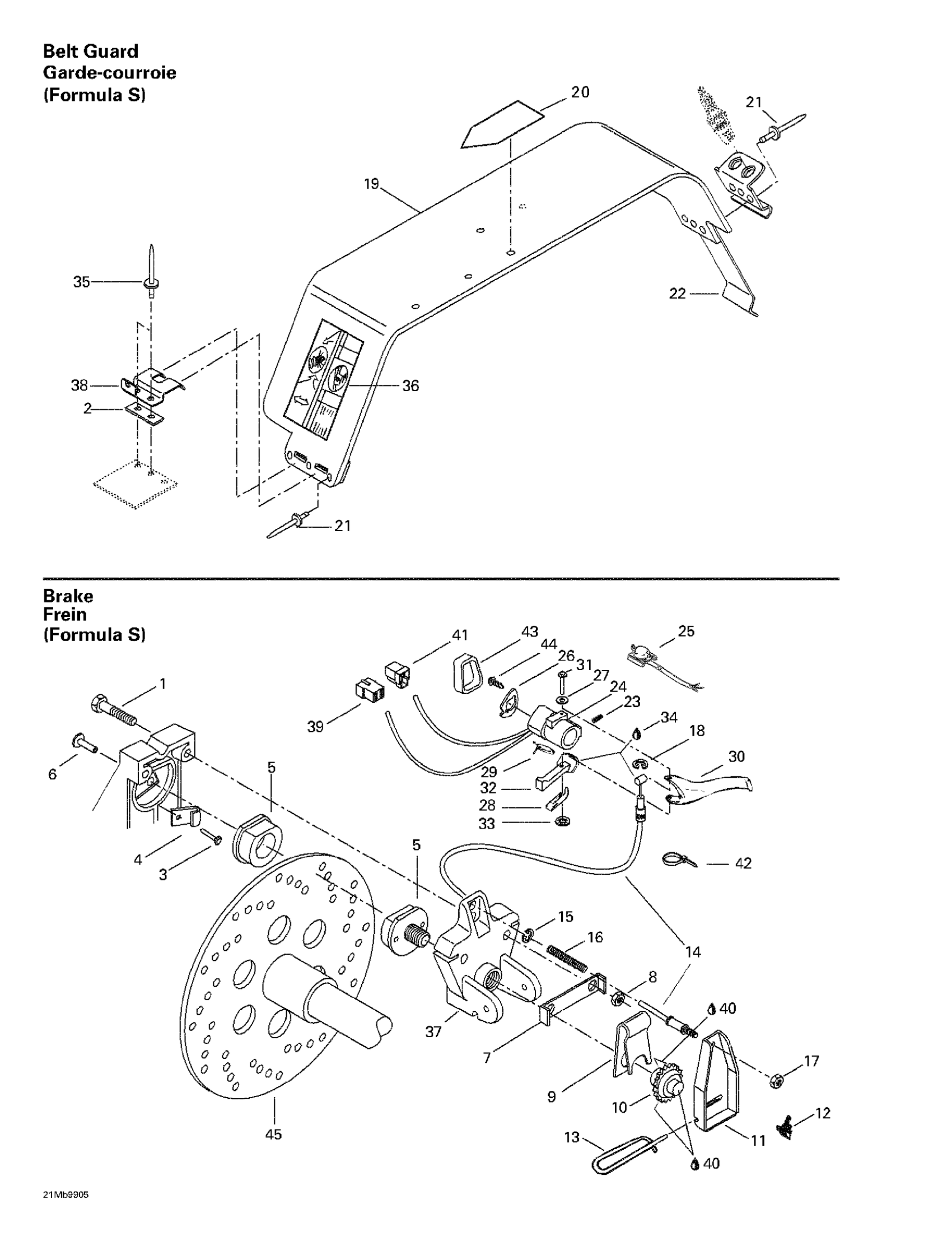

Ski-Doo Formula S, 1999 06- Mechanic Brake And Belt Guard Diagram

#

Description
Price

1

Hex. Screw M8 X 55

207085544

$1.68

2

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

WEAR INDICATOR - Call your local BRP dealership

507022600

Unavailable

5

Pad_Brake Kit - Call your local BRP dealership | Includes Items 19 to 20

860701700

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

10

Wheel Ratchet

507019600

Unavailable

11

LEVER - Call your local BRP dealership

507021500

Unavailable

12

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

13

Hair Pin

507027500

Unavailable

14

BRAKE CABLE - Call your local BRP dealership

414922500

Unavailable

15

Circlip

371901300

Unavailable

16

SPRING - Call your local BRP dealership

414460600

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

Circlip

414274500

$0.90

19

Belt Guard Ass'y | Includes 4 - 7.

417300012

Unavailable

20

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

21

Pop Rivet 3/16"

390402200

$0.35

22

Tool Box Spring

414941800

Unavailable

23

Socket Set Screw M8 X 10

414440800

$4.12

24

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

25

Dimmer Switch

415085800

Unavailable

26

LH Plate

572086600

Unavailable

27

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

28

Spring

517229300

Unavailable

29

Brake Switch

415085700

Unavailable

30

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

31

PIN - Call your local BRP dealership

517229400

Unavailable

32

Brake Lever

572025200

Unavailable

33

Push Nut

389804300

$0.53

34

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

35

Pop Rivet 3/16"

390402200

$0.35

36

Suspension Adjustment Decal

418001701

Unavailable

37

Machined Caliper

507027600

Unavailable

38

Pulley Guard Bracket

518314200

Unavailable

39

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

40

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

41

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

42

Tie-Rap 180 mm

414115200

$0.11

43

BRAKE COVER - Call your local BRP dealership

572073800

Unavailable

44

Screw

414473200

Unavailable

45

WELDED DISK - Call your local BRP dealership

507029000

Unavailable
