1999 Ski-Doo Formula S Driven Pulley Diagram

← All diagrams

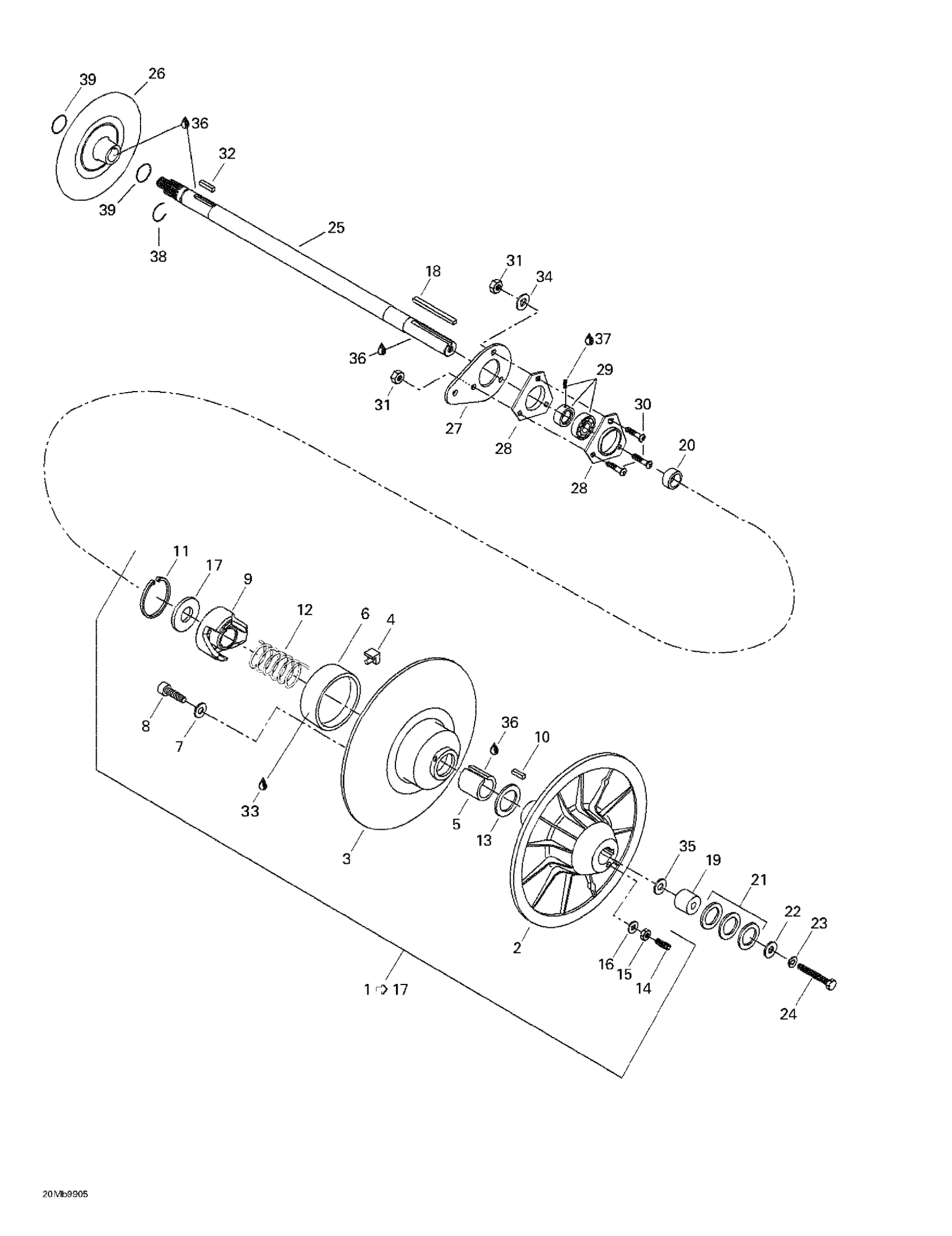

Find the part on the Driven Pulley diagram for your 1999 Ski-Doo Formula S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Ski-Doo Formula S Driven Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Not Available As Spare Part - Friction Washer

—
Out of stock

2

Fixed Flange

504141600

—
Out of stock

3

Sliding Flange Ass'y | Includes 24 - 31. Formula III 800.

504143200

—
Out of stock

4

CAM SLIDER SHOE - Call your local BRP dealership

414918000

—
Out of stock

5

BUSHING - Call your local BRP dealership

415011200

—
Out of stock

6

Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).

860423000

—
Out of stock

7

Flat Washer

399910000

—
Out of stock

8

SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership

732600022

—
Out of stock

9

Cam 44 Deg. (Summit 600 (Sport)) | Summit 600.

417126333

—
Out of stock

10

Key

414820800

—
Out of stock

11

CIRCLIP - Call your local BRP dealership

371903100

—
Out of stock

12

RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.

414505800

—
Out of stock

13

Thrust Washer

504141900

—
Out of stock

14

Allen Screw M6 x 30

223563065

—
Out of stock

15

Hex. Nut M6

232061414

3
Out of stock

16

WASHER - Call your local BRP dealership

420245370

—
Out of stock

17

Washer

504141800

—
Out of stock

18

Key

414581300

—
Out of stock

19

Countershaft Extension | Formula S.

504260700

—
Out of stock

20

Shim | Formula S.

504094000

—
Out of stock

21

—

$3.85

In stock

22

WASHER - Call your local BRP dealership

517078700

—
Out of stock

23

Lock Washer 8 mm

234181401

1
Out of stock

24

Hex. Screw M8 x 65

207086544

1

$1.42

In stock

25

Countershaft | Formula S.

504149200

—
Out of stock

Countershaft

504149300

—
Out of stock

26

—

$91.51

In stock

Brake Disk

507032203

—
Out of stock

27

Spacer

501022300

—
Out of stock

28

FLANGE - Call your local BRP dealership

501025000

—
Out of stock

29

BALL BEARING WITH COLLAR - Call your local BRP dealership

405408300

—
Out of stock

30

Allen Screw M8 x 25

732601156

—
Out of stock

31

Hex. Elastic Stop Nut M8

232581414

3
Out of stock

32

KEY - Call your local BRP dealership

507021300

—
Out of stock

33

Loctite 609, 10 ml

413703100

1

$24.58

In stock

34

Flat Washer 8 mm

234081410

1
Out of stock

35

—

$0.70

In stock

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

37

Loctite 243, 10 ml

293800060

1
Out of stock

38

Circlip

371910000

1

$0.98

In stock

39

—

$8.43

In stock
