1999 Ski-Doo Formula S Chaincase Diagram

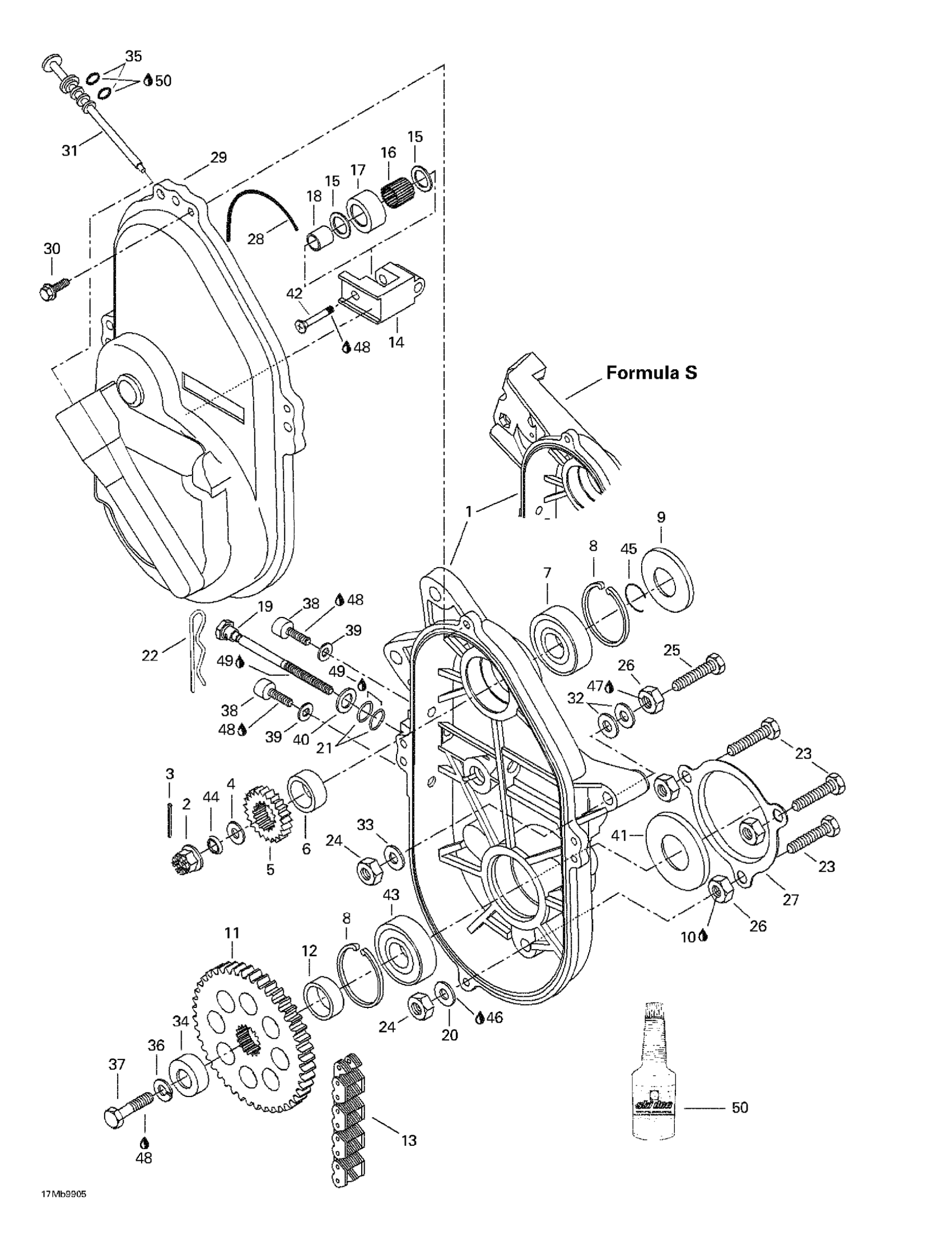

Find the part on the Chaincase diagram for your 1999 Ski-Doo Formula S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
Machined Chaincase
504144600
Chaincase
504151778
3
Cotter Pin
371801300
4
Washer
504087100
5
Sprocket, 18 Teeth | GT 380F Europe
504070100
Sprocket, 21 Teeth | Grand Touring 500.
504091200
6
Shim
504093400
7
Ball Bearing
293350115
8
CIRCLIP - Call your local BRP dealership
371901700
10
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
11
Sprocket 44Th
504070900
12
Spacer
504146400
13
Drive Chain, (70 Links-Narrow) | Formula Deluxe 380.
412105900
Drive Chain, (72 Links-Narrow) | Formula Deluxe 500.
412105500
17
ROLLER - Call your local BRP dealership
414531300
20
Copper Washer
732900020
21
O-Ring
414484400
22
Hair Pin
414575600
23
Hex. Screw M10 x 45
207104544
24
Elastic Locking Nut M10 X 1.5
233601416
25
Hex. Screw M10 x 70
732601111
26
Spacer
504083800
27
Protector
501022100
28
O-Ring
414362300
29
CASTING COVER - Call your local BRP dealership
080037100
30
Hex. Flange Screw M6 X 30 | International
210263050
31
FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23
572092700
32
WASHER - Call your local BRP dealership
504073700
34
CAP - Call your local BRP dealership
501026200
35
O-RING - Call your local BRP dealership
414969400
36
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
38
Socket Head Screw M8 x 10
732601132
39
Washer
504082900
43
Ball Bearing
293350115
44
Spring Washer
417000900
46
Was 413702700 Loctite 515, 50 ml
219704462
47
Loctite 243, 10 ml
293800060
49
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
50
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
