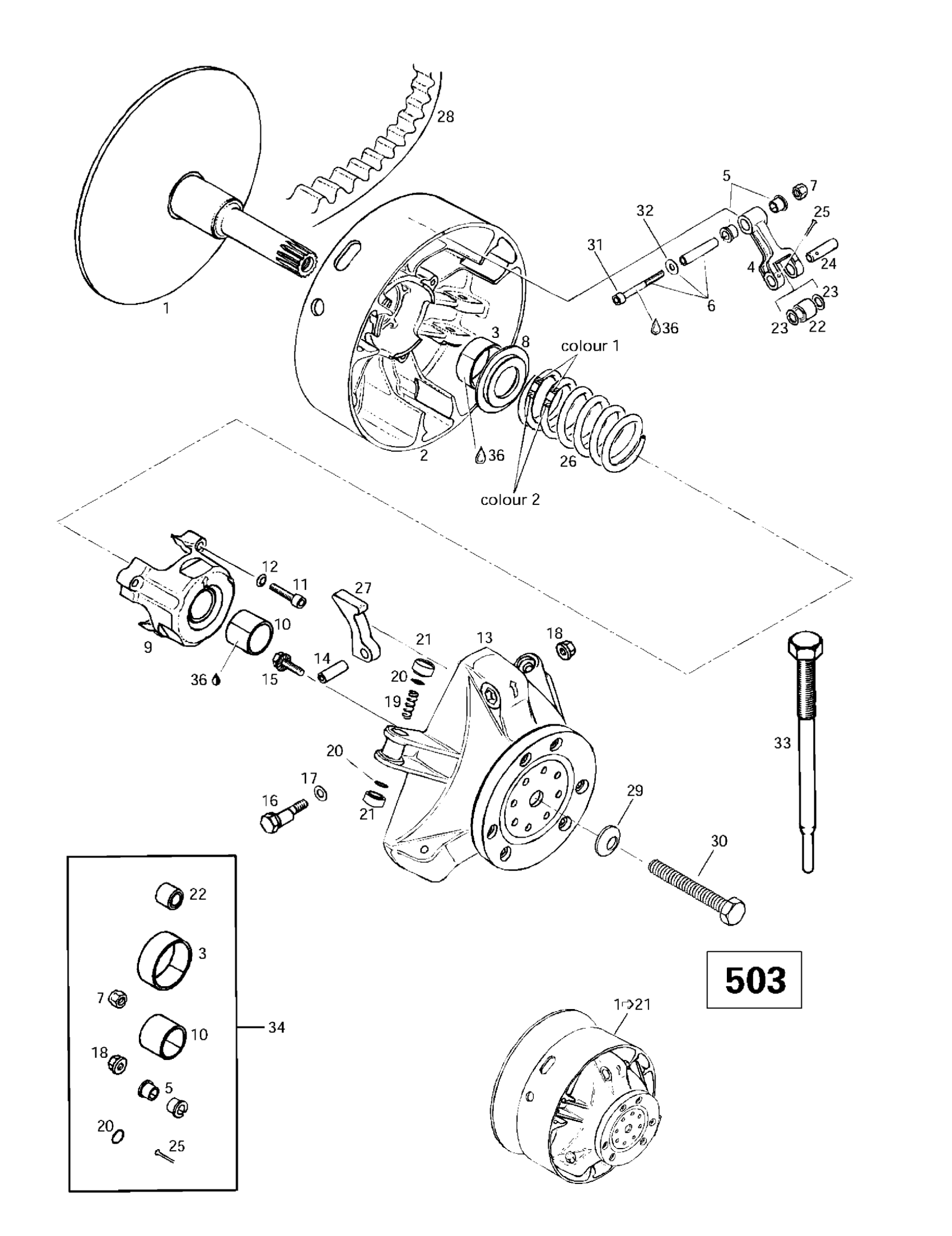

Ski-Doo Formula S, 1997 Drive Pulley (503) Diagram

#

Description
Price

1

Drive Pulley Ass'y. (Incl. 38) | Formula Z. Formula 583.

417215700

Unavailable

1

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417003700

Unavailable

3

Bushing

417004201

$23.82

4

Lever Ass'y | Includes 5 - 6.

417003800

Unavailable

5

Bushing

417004305

$4.62

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$1.55

8

Spring Seat

417005000

Unavailable

9

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

10

Bushing

417004501

Unavailable

11

Allen Screw M6 x 40

222964066

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Gouvernor Cup Ass'y

417004700

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.86

18

Hex. Flange Nut M6

233061414

$1.34

19

Spring

417005700

$4.65

20

O-Ring

732401030

$0.95

21

Slider Shoe This part replaces 420460045.

417223021

$6.09

22

Roller

417222947

$19.97

23

Stopper Washer

417004302

$15.99

24

Pin

417004309

$24.58

25

Cotter Pin

250400060

$1.60

26

Spring, Blue/yellow | S-LEV&P-146

414689500

$14.75

27

Ramp 284 | Touring LE.

417005284

Unavailable

28

Drive Belt

415060600

$154.58

29

Conical Spring Washer M12

250200005

$2.65

30

BOLT - Call your local BRP dealership

417113800

Unavailable

31

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

32

Flat Washer 6 mm

234061410

$1.04

33

Puller Inner Half

529007900

$58.99

34

Clutch Repair Kit

417006100

$175.35

35

High Altitude Kit (Not Shown) | Formula SL.

861756600

Unavailable

36

Sealant Loctite 648

219703000

$35.72
