Partiron

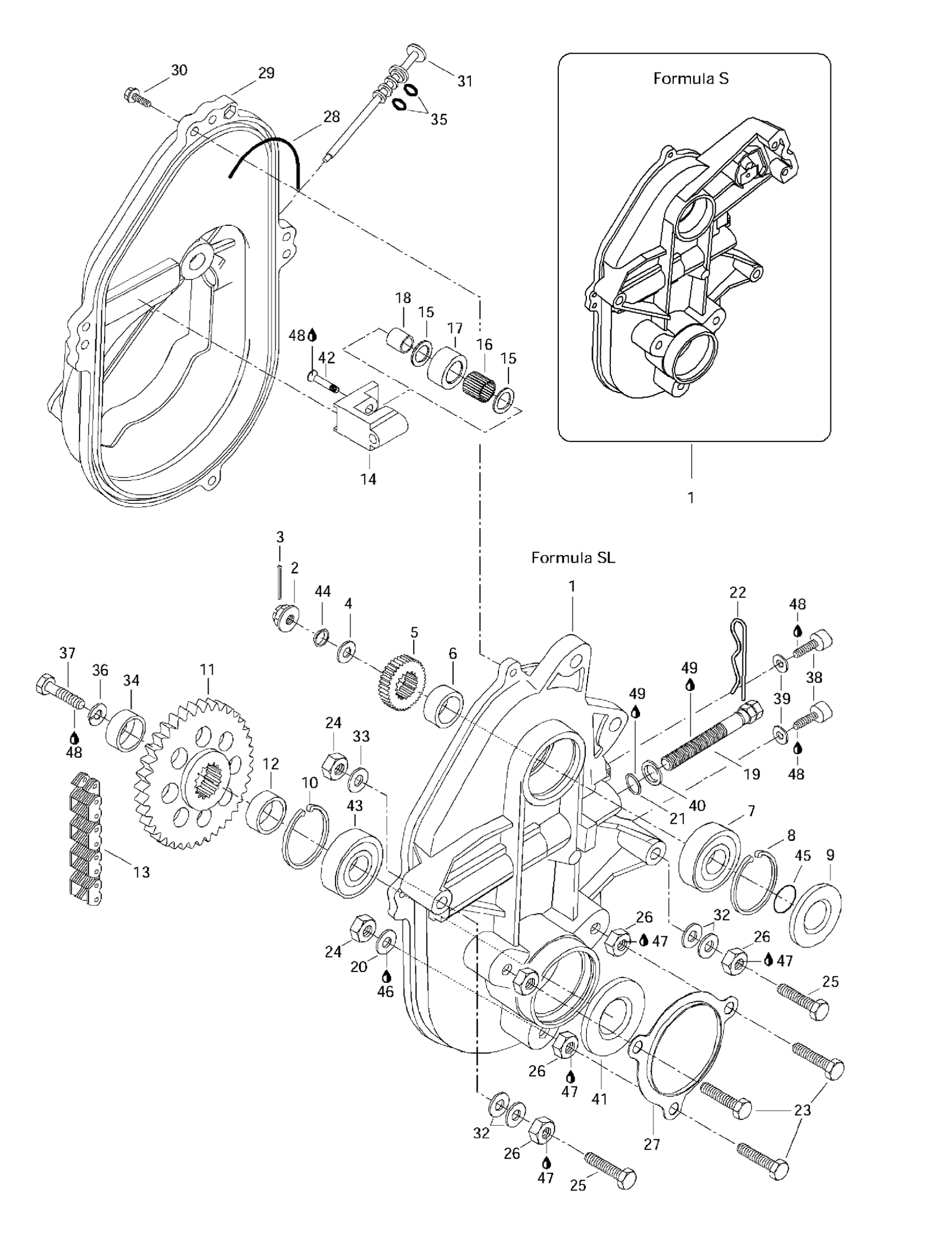

Ski-Doo Formula S, 1997 Chaincase Diagram

#

Description
Price

1

Machined Chaincase

504144600

Unavailable

Chaincase | Formula SL.

504144701

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

3

Cotter Pin

371801300

Unavailable

4

Washer

504087100

Unavailable

5

Sprocket, 21 Teeth | Grand Touring 500.

504091200

Unavailable

22 Teeth Sprocket (Narrow) | Formula Deluxe 500.

504074700

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

Unavailable

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

$17.66

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

11

Sprocket 44Th

504070900

Unavailable

12

Spacer

504146400

Unavailable

13

Drive Chain, (72 Links-Narrow) | Formula Deluxe 500.

412105500

Unavailable

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

Tensioner Adjustment Screw (Forging) | Formula 500. Formula Z. Formula 583.

732601267

Unavailable

20

Copper Washer

732900020

Unavailable

21

O-Ring

414484400

$7.31

22

Hair Pin

414575600

Unavailable

23

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

Hex. Screw M10 x 70

732601111

Unavailable

26

Spacer

504083800

Unavailable

27

Protector

501022100

Unavailable

28

O-Ring

414362300

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

Unavailable

30

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

31

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

32

WASHER - Call your local BRP dealership

504073700

Unavailable

33

Flat Washer 10 mm

234001410

Unavailable

34

CAP - Call your local BRP dealership

501026200

$8.43

35

O-RING - Call your local BRP dealership

414969400

Unavailable

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Screw M10 X 25

207102544

Unavailable

38

Socket Head Screw M8 x 10

732601132

Unavailable

39

Washer

504082900

Unavailable

40

Flat Washer 10 mm

234001410

Unavailable

41

Seal Oil Ass'y

504152076

Unavailable

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

Ball Bearing

293350115

Unavailable

44

Spring Washer

417000900

Unavailable

45

Circlip

371910000

Unavailable

46

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

47

Loctite 243, 10 ml

293800060

$20.77

48

Loctite 271, 10 ml

293800005

Unavailable

49

Sealant, 100 gr

413707100

Unavailable
