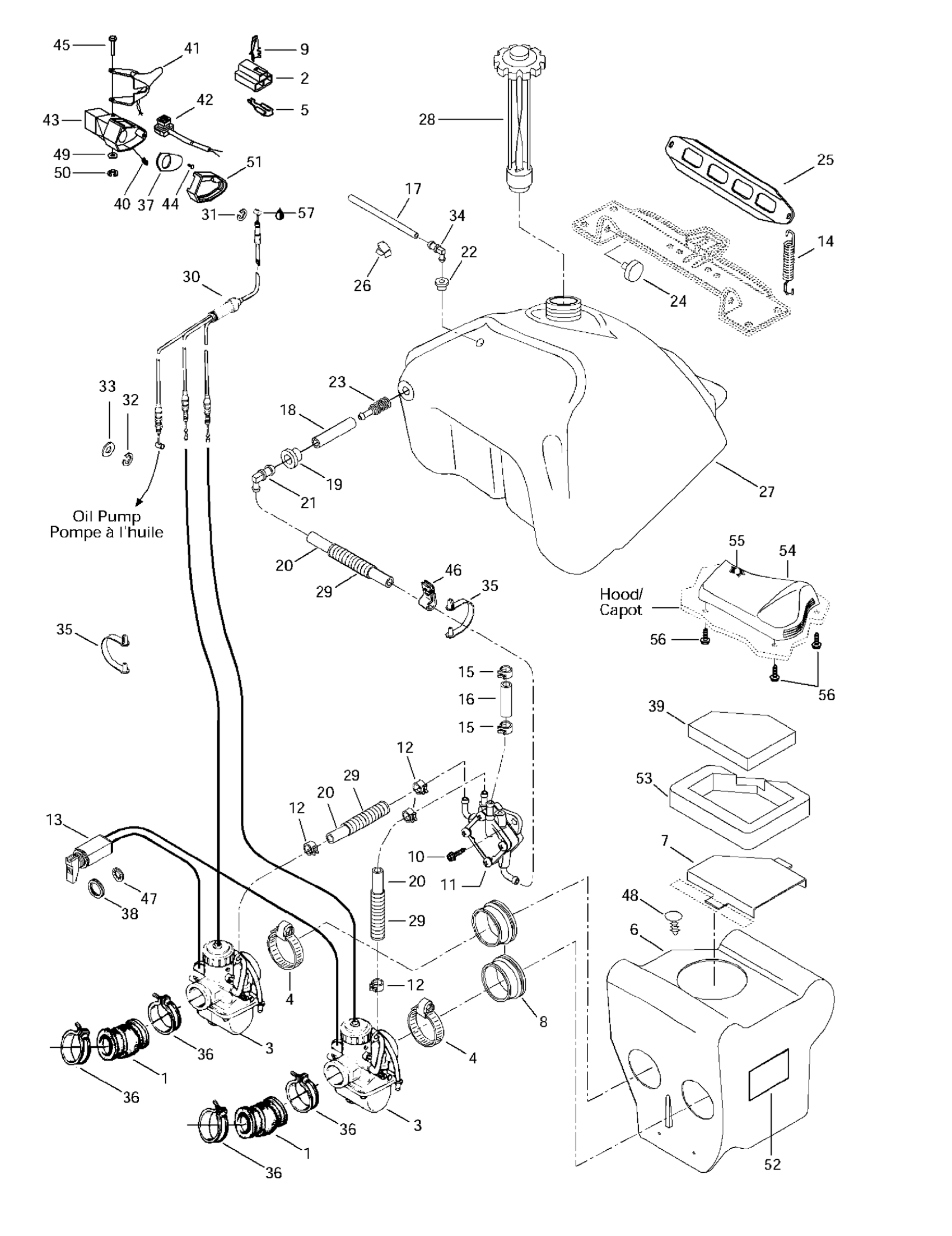

Ski-Doo Formula S, 1997 Fuel System Diagram

#

Description
Price

1

Rubber Flange

570045000

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 30-190 | Includes 1 - 35. Formula S.

403127200

Unavailable

Carburetor VM 34 481 (PTO) | Includes 1 - 36. Formula SL.

403127400

Unavailable

Carburetor VM 34 482 (MAG) | Formula SL.

403127500

Unavailable

4

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

5

Female Terminal PACKARD

561503200

Unavailable

6

Air Silencer (Incl. 4,7,8,39,48,52,53) | Formula S.

580649200

Unavailable

Air Silencer (Incl. 4,7,8,39,48,52,53) | Formula SL.

580649100

Unavailable

7

Intake Grill

517285900

Unavailable

8

Adaptor 34 mm

570043600

Unavailable

9

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

10

Hexagonal Head Screw

210262050

$1.74

11

Fuel Pump

403801000

Unavailable

12

Spring Clamp

414554800

$0.83

13

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.83

16

Hose

219704549

$47.66

17

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Grommet

570045500

$6.32

20

Polyurethane Hose 10000Mm Long

219704410

$46.12

21

Elbow Male Connector

414580600

$3.50

22

Grommet

709200285

$7.09

23

Fuel Filter

414865700

$8.39

24

Grommet | Europe

707800347

$7.58

25

Fuel Tank Bracket

517249200

Unavailable

26

Clip

414227300

$1.45

27

Fuel Tank

571009300

Unavailable

28

Fuel Tank Cap

572161200

$36.89

29

Was 409901800 Tubing (13 mm)

219704400

$9.40

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.74

32

Circlip

414753500

$0.59

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Male Connector

414814100

$2.18

35

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

36

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

37

Plate

512060390

$9.31

38

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

39

Air Filter

415037600

Unavailable

40

Socket Set Screw M8 X 10

414440800

$4.00

41

Handle, 30 mm

572084501

$16.12

Handle Ass'y

512060214

$117.66

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

43

Throttle Housing

512060603

$10.57

44

Screw

414473200

Unavailable

45

Lever Pin

414438700

$11.14

46

CLIP - Call your local BRP dealership

414351600

Unavailable

47

Lock Washer, Interior Teeth

394103300

Unavailable

48

Black, Dart

414644300

$0.78

49

Flat Washer M5, Stainless

234051600

$0.64

50

Circlip | Model-RS

414439000

$4.14

51

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

52

Warning Decal

414161500

Unavailable

53

Foam Lower

415037700

Unavailable

54

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

55

Air Filter

414972600

$58.43

56

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

57

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable
