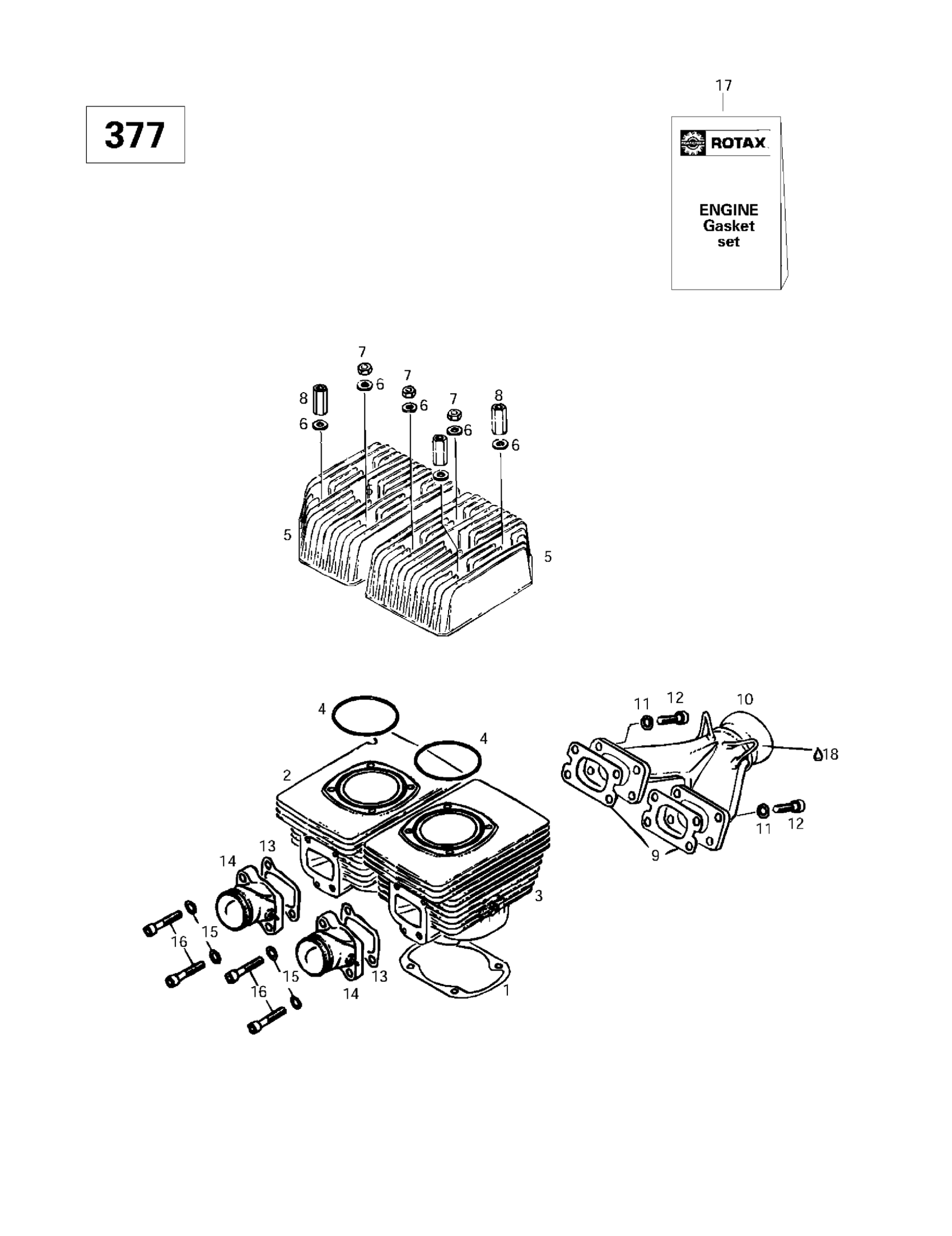

Ski-Doo Formula S, 1997 Exhaust Manifold (377) Diagram
#
Description
Price
1
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
2
Cylinder with Sleeve, PTO
420923400
Unavailable
3
Cylinder with Sleeve, MAG
420923405
Unavailable
4
O-Ring
420931380
Unavailable
5
Cylinder Head
420823823
Unavailable
6
Flat Washer 8.4 mm
420250315
Unavailable
7
Hex. Nut M8
232081414
Unavailable
8
Distance Nut M8
420842385
Unavailable
9
GASKET - Call your local BRP dealership
420850114
Unavailable
10
Exhaust Manifold Ass'y
420978437
Unavailable
11
Lock Washer 8 mm
234181401
Unavailable
12
Socket Head Screw M8 X 30
205083044
Unavailable
13
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
14
INTAKE SOCKET ASS?Y - Call your local BRP dealership
420867408
Unavailable
15
Washer-Lock Din.128
420945832
Unavailable
16
Screw M8 X 35
420841591
Unavailable
17
GASKET SET, ENGINE - Call your local BRP dealership
420994232
Unavailable
O-Ring, 64 mm X 2 mm
293300022
Unavailable
Oil Seal This part replaces 290831952.
420831952
Unavailable
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
GASKET - Call your local BRP dealership
420850114
Unavailable
O-Ring
420931380
Unavailable
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
18
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
