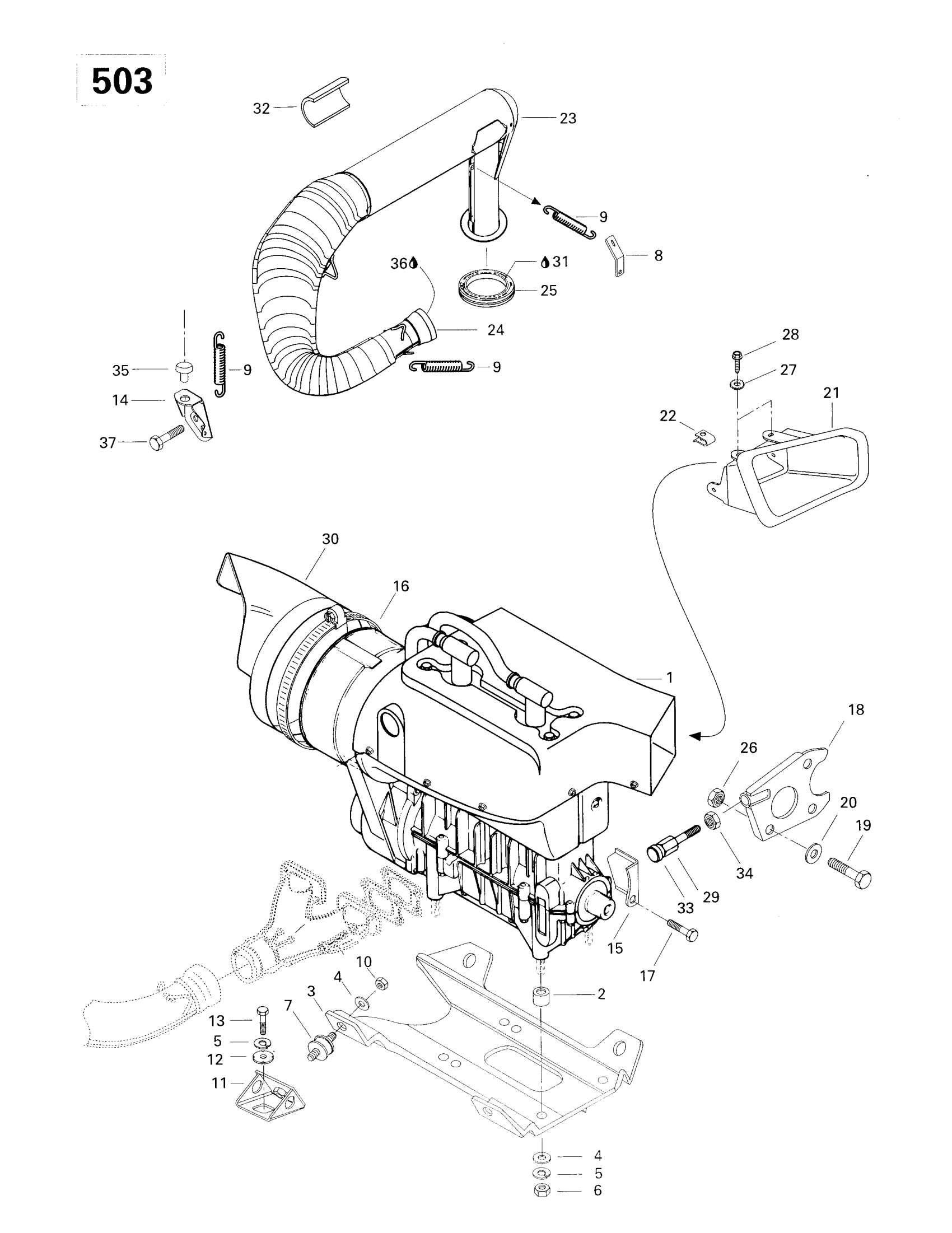

Ski-Doo Formula S, 1997 Engine Support And Muffler (503) Diagram

#

Description
Price

1

<<503>> Engine | Formula SL.

400507400

Unavailable

2

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512054500

Unavailable

4

Flat Washer 10 mm

234001410

$1.12

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.27

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Spring Bracket

514054522

$6.09

9

Spring

415107100

$6.01

10

Elastic Locking Nut M10 X 1.5

233601416

$1.63

11

Support | Formula S.

512055400

Unavailable

12

Lock Washer

512056700

$3.01

13

Hex. Screw M10 X 25

207102544

$1.27

14

Muffler Support

514044100

Unavailable

15

Stopper Plate

512052200

Unavailable

16

Tridon Gear Clamp | MX Z 440 F.

408803700

Unavailable

17

Hex. Screw M8 X 20

207182044

$0.70

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.85

20

Flat Washer 8 mm

234081410

$0.79

21

Outlet Duct

572083900

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Muffler-Pipe | MX Z 500 F.

514046700

Unavailable

24

Female Ball Joint | Formula S.

420973530

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Hex. Elastic Stop Nut M8

232581414

$0.54

27

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

28

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

29

Screw

517244200

Unavailable

30

Air Deflector | Formula SL.

572058500

Unavailable

31

Grease, Super Lube

293550030

$28.33

32

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

33

Rod retainer

570025100

Unavailable

34

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

35

Rubber Bumper

514053654

$47.73

36

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable
