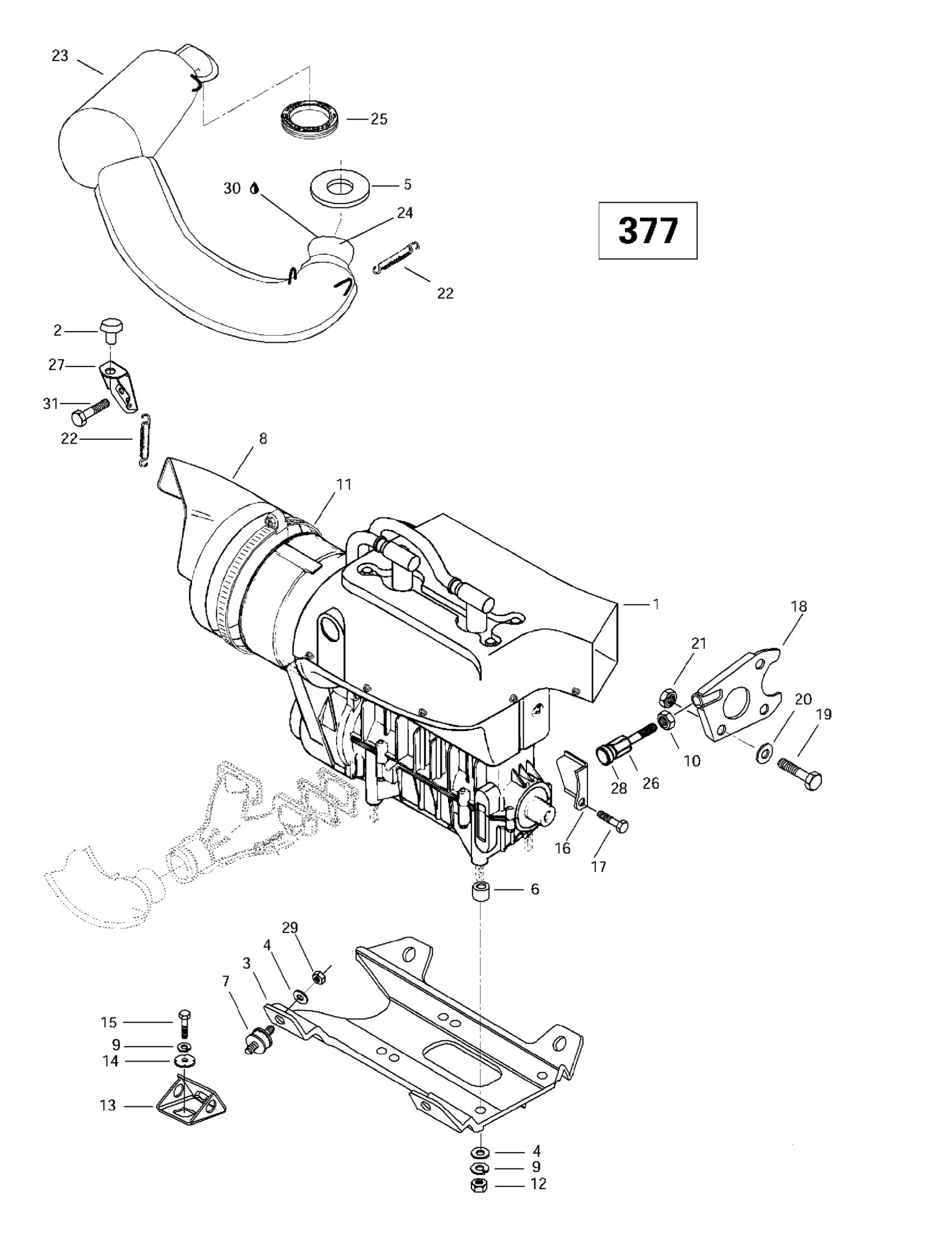

Ski-Doo Formula S, 1997 Engine Support And Muffler (377) Diagram
#
Description
Price
1
<<377>> Engine | Formula S.
400308500
Unavailable
3
Engine Support
512054500
Unavailable
4
Flat Washer 10 mm
234001410
Unavailable
5
Exhaust Grommet | Formula S.
570049400
Unavailable
6
Spacer | Formula Deluxe 380.
512051900
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570127700
Unavailable
8
Air Deflector | Formula S.
572058400
Unavailable
9
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
10
HEX. NUT M12 - Call your local BRP dealership
232120414
Unavailable
11
Gear Clamp Tridon | Formula S.
408803600
Unavailable
13
Support | Formula S.
512055400
Unavailable
14
Lock Washer
512056700
Unavailable
15
Hex. Screw M10 X 25
207102544
Unavailable
16
Stopper Plate
512052200
Unavailable
18
Support Plate
517271800
Unavailable
19
Hex. Screw M8 X 25
207182544
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Hex. Elastic Stop Nut M8
232581414
Unavailable
22
SPRING - Call your local BRP dealership
517182100
Unavailable
23
Muffler | Formula S.
514046000
Unavailable
25
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
26
Screw
517244200
Unavailable
27
Muffler Support | Formula S.
514038800
Unavailable
28
Rod retainer
570025100
Unavailable
30
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
31
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
