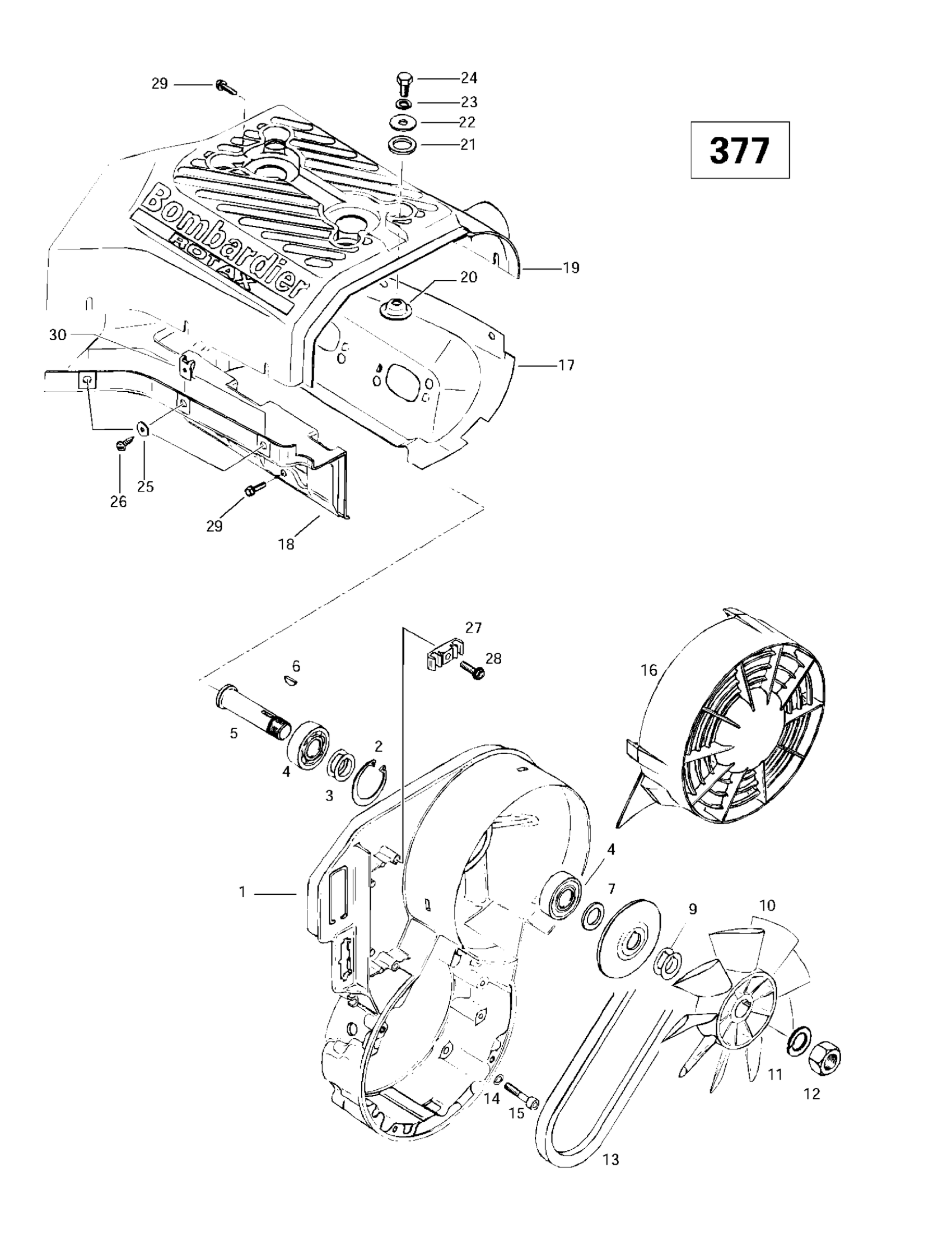

Ski-Doo Formula S, 1997 Cooling System Fan (377) Diagram
#
Description
Price
1
Fan Housing | Formula S.
420912996
Unavailable
2
Lock Ring
420945880
Unavailable
3
Shim
420244585
Unavailable
4
Ball Bearing
420832161
Unavailable
5
Fan Axle This part replaces 420937940.
420937941
Unavailable
6
Woodruff Key
420246015
Unavailable
7
Spacer Bushing
420827650
Unavailable
8
Flange
420980496
Unavailable
9
Shim 0.5 mm
420827080
Unavailable
Shim 0.2 mm
420827082
Unavailable
10
Fan
420866295
Unavailable
11
Lock Washer
420945756
Unavailable
12
Nut M16 This part replaces 420942285.
420942289
Unavailable
14
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
15
Socket Head Screw M6 X 30
205063044
Unavailable
16
Fan Cover
420975740
Unavailable
17
Cylinder Cowl (Exhaust Side) | Formula Deluxe 380.
420810552
Unavailable
18
Cylinder Cowl (Carburator Side) | Formula Deluxe 380.
420810795
Unavailable
19
Cylinder Cowl Ass'y
420810607
Unavailable
20
Cup Washer
420827817
Unavailable
21
Rubber Washer
420960865
Unavailable
22
Washer This part replaces 420227935.
420227936
Unavailable
23
Washer-Lock Din.128
420945832
Unavailable
25
FLAT WASHER - Call your local BRP dealership
420926180
Unavailable
26
Tapping Screw M4.8 X 16
417300006
Unavailable
27
CLAMP - Call your local BRP dealership
420860940
Unavailable
28
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Spring Nut
420842390
Unavailable
