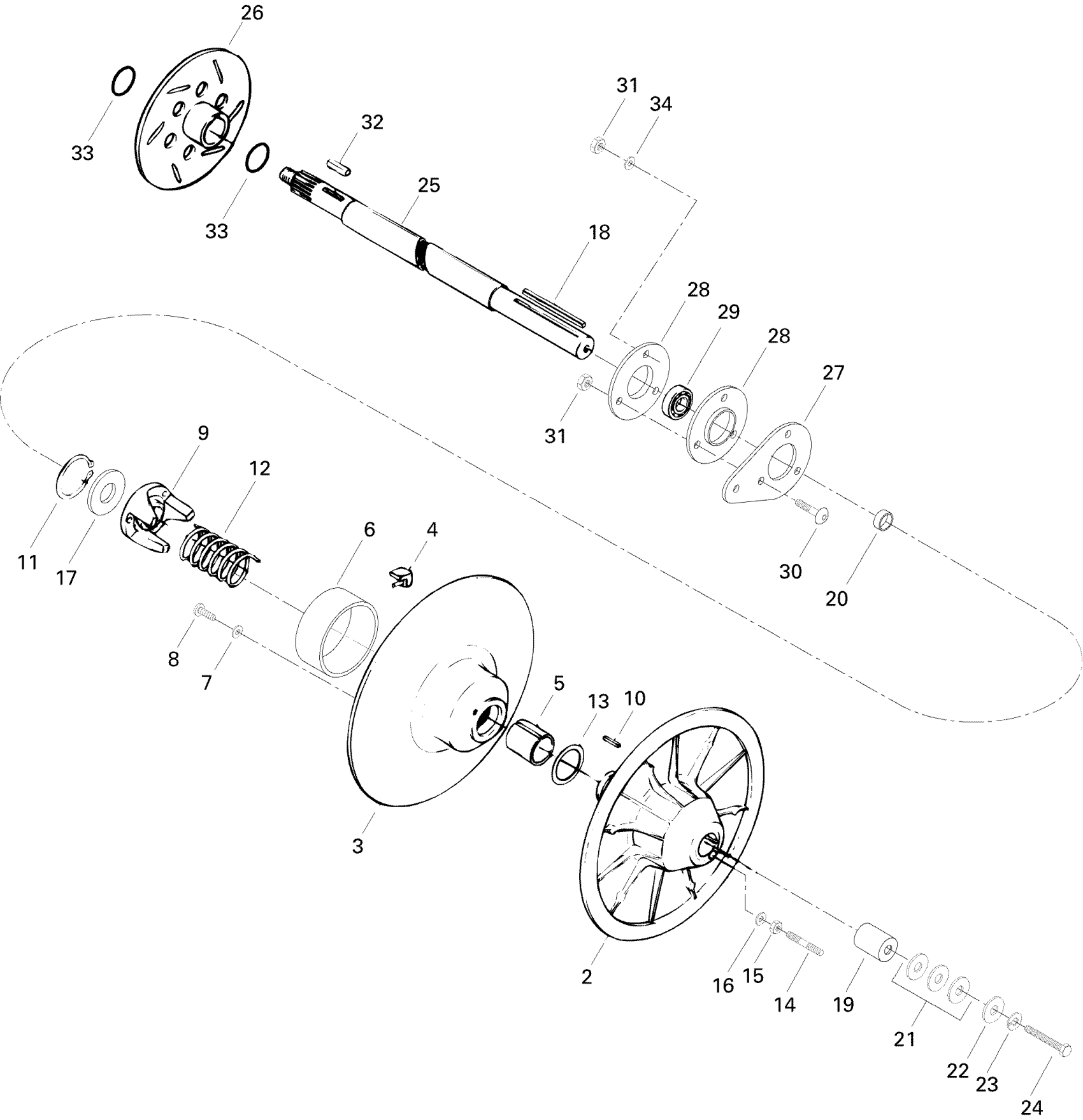

Ski-Doo Formula S, 1996 05- Driven Pulley Formula S, SL Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Half Pulley
504095900
Unavailable
3
Sliding Pulley Ass’y | Includes 3 to 6
504141700
Unavailable
4
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
5
BUSHING - Call your local BRP dealership
415011200
Unavailable
6
Bushing Garlock Kit | Includes 26 - 28. Mach Z. Mach Z-LT.
414873100
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Cam 44 Deg
504096000
Unavailable
10
Key
414820800
Unavailable
11
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
12
RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.
414505800
Unavailable
13
Thrust Washer
504141900
Unavailable
14
Allen Screw M6 x 30
223563065
Unavailable
16
WASHER - Call your local BRP dealership
420245370
Unavailable
17
Washer
504141800
Unavailable
18
Key
414581300
Unavailable
19
Counter Shaft Extension
504058300
Unavailable
20
Shim
504128400
Unavailable
21
SHIM - Call your local BRP dealership
504108200
Unavailable
22
WASHER - Call your local BRP dealership
517078700
Unavailable
25
Countershaft | Formula S.
504098400
Unavailable
26
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
27
Spacer
501022300
Unavailable
28
FLANGE - Call your local BRP dealership
501025000
Unavailable
29
BALL BEARING - Call your local BRP dealership This part replaces 504152072.
415129552
Unavailable
30
Allen Screw M8 x 25
732601156
Unavailable
32
KEY - Call your local BRP dealership
507021300
Unavailable
33
O'RING - Call your local BRP dealership
414928900
Unavailable
