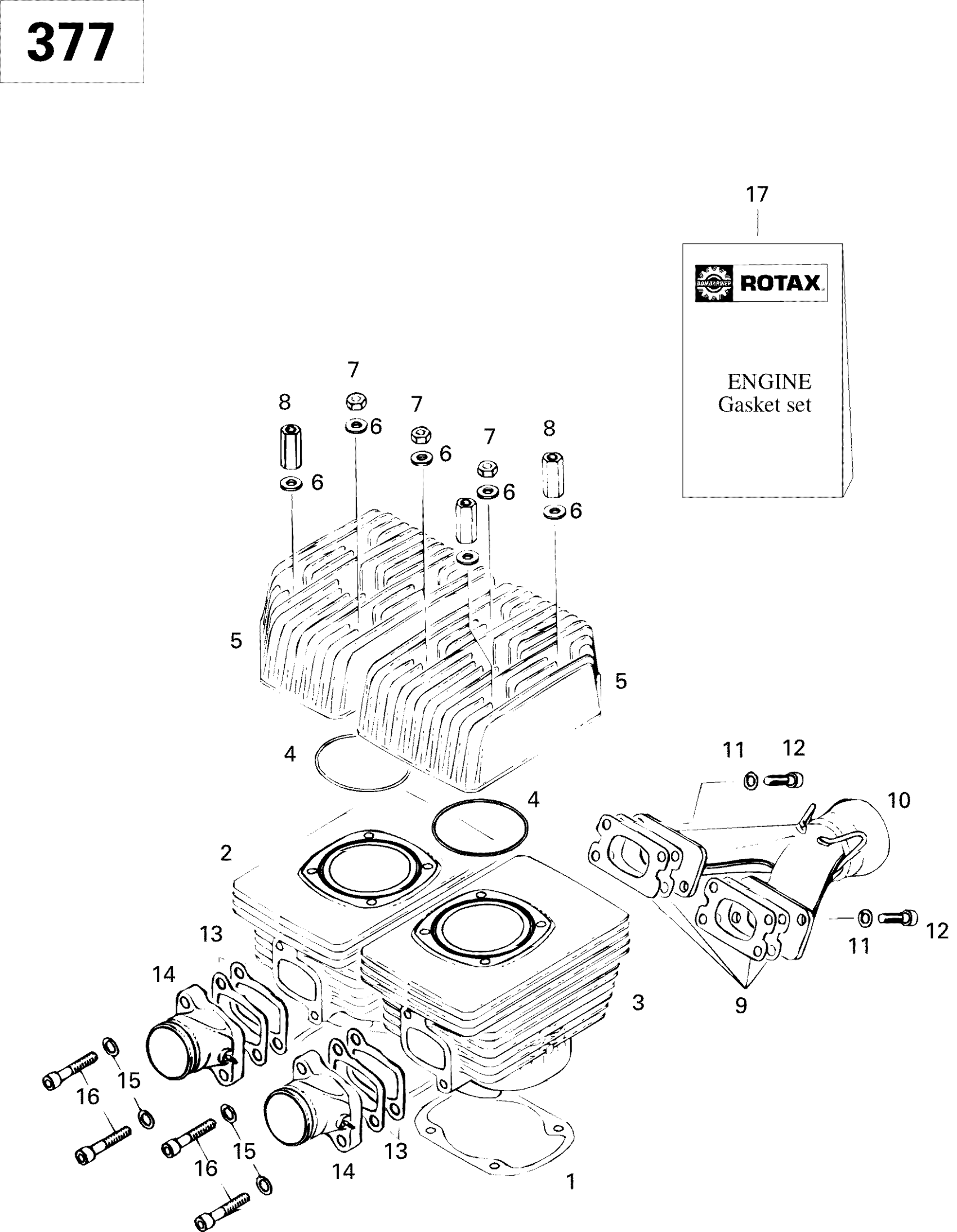

Ski-Doo Formula S, 1996 01- Cylinder And Exhaust Manifold 377 Diagram

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

Cylinder with Sleeve, PTO

420823799

Unavailable

Cylinder with Sleeve, MAG

420823809

Unavailable

O-Ring

420931380

$12.70

Cylinder Head

420823823

Unavailable

Flat Washer 8.4 mm

420250315

$1.15

Hex. Nut M8

232081414

$0.72

Distance Nut M8

420842385

Unavailable

GASKET - Call your local BRP dealership

420850114

Unavailable

Exhaust Manifold Ass'y

420978437

Unavailable

Lock Washer 8 mm

234181401

$0.92

Socket Head Screw M8 X 30

205083044

$1.15

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

Washer-Lock Din.128

420945832

$1.15

Screw M8 X 35

420841591

$2.96

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable
