Description

Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2

Link Plate

506122900

Unavailable

3

WASHER - Call your local BRP dealership

503146700

Unavailable

4

Hex. Screw M6 X 55

207065544

$2.11

5

Spring Guide

503191872

$2.29

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

6

Hex. Screw M8 X 20

207182044

$0.74

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Arm Ass'y

580650800

Unavailable

15

Ski Leg

506139200

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm

506137110

Unavailable

RH Swing Arm

506137010

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 90

222029065

Unavailable

27

CAP - Call your local BRP dealership

572045900

Unavailable

28

Hex. Screw M12 x 55

222025565

Unavailable

29

Arm Ass'y | MX Z 500. MX Z 583.

580649900

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Front Shock (HPG) (Canada, U.S.A. Only) | MX Z 500.

414956700

Unavailable

Front Shock

415040200

Unavailable

32

Shock Spring (Red) | Formula III.

415038500

Unavailable

Spring (Red)

414976100

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

Lock Washer 8 mm

234181401

$0.92

36

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

37

Flat Washer 8 mm

234081410

$0.83

38

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Carriage Bolt M6 X 25

207762544

$1.69

41

Ski Reinforcement | Formula 500 Deluxe.

505068000

Unavailable

42

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable

43

Rear Link Plate

517254900

Unavailable

44

Adjustment Cam

505073625

$12.99

Cam

503169000

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505068100

Unavailable

47

CUSHION - Call your local BRP dealership

415039500

Unavailable

Bushing

486074100

Unavailable

48

Plastic Ski (Black) | Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

572090400

Unavailable

Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

572085700

Unavailable

49

Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067509

Unavailable

50

Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067320

Unavailable

51

Elastic Locking Nut M10 X 1.5

233601416

$1.69

52

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

53

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

54

Hex. Flange Elastic Nut M8

233281414

$1.47

55

Carriage Bolt M8 X 30

207783044

$2.11

56

Not Available As Spare Part - Friction Washer

Unavailable

57

RH Ball Joint | Formula Z 583. Formula Z 670.

415042500

Unavailable

58

Hex. Jam Nut M14

232170411

$1.48

59

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

60

Grease, Super Lube

293550030

$28.99

61

Stabilizator

506134300

Unavailable

Stabilisator

486074000

Unavailable

62

Housing

506139000

Unavailable

63

Hex. Screw M8 X 45

207084544

$1.48

64

Stabilizer Lever

506134402

Unavailable

Lever-Stabilizer

506141100

Unavailable

65

Elastic Locking Nut M10 X 1.5

233601416

$1.69

66

Double Ball Joint

415042300

Unavailable

67

Main Tube

506136200

Unavailable

68

Rivet pop 1/4"

390404900

Unavailable

69

Socket Set Screw M8 X 10

414440800

$4.12

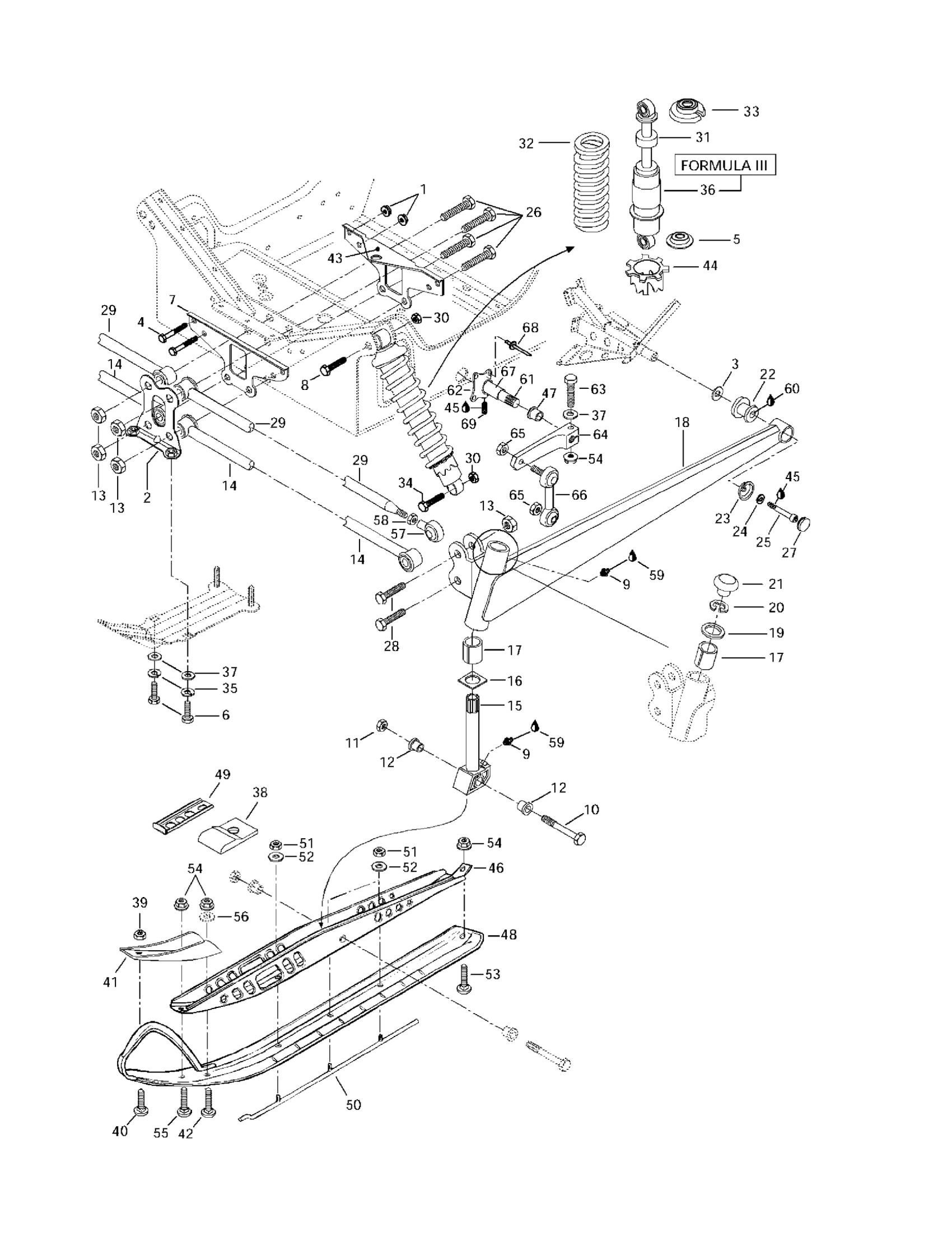

Ski-Doo Formula III LT, 1997 07- Front Suspension And Ski Diagram
