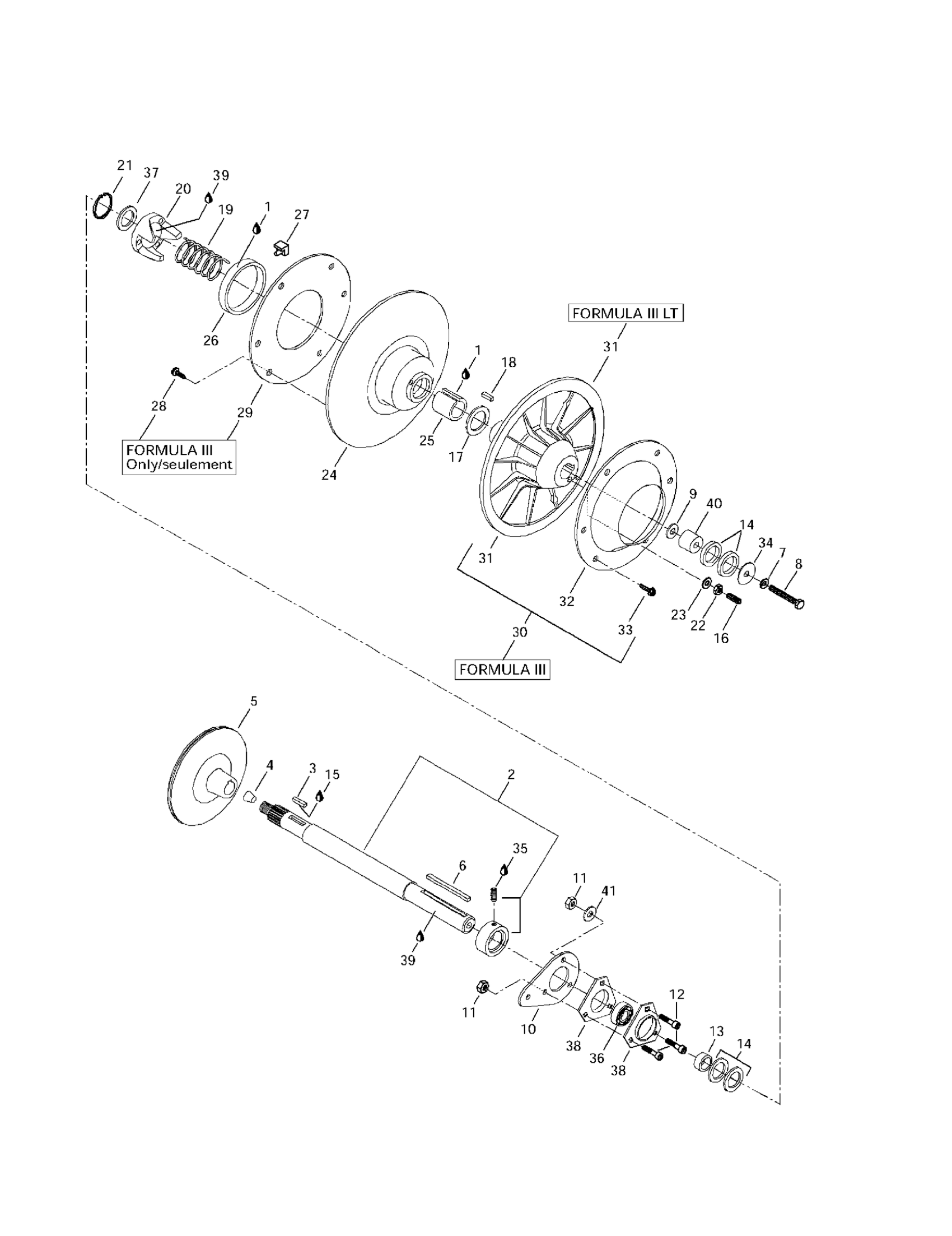

Ski-Doo Formula III LT, 1997 05- Driven Pulley Diagram

#

Description
Price

1

Loctite 609, 10 ml

413703100

$26.99

2

Countershaft | Formula Z.

504139400

Unavailable

3

KEY - Call your local BRP dealership

507021300

Unavailable

4

CORK - Call your local BRP dealership

414784800

Unavailable

5

Brake Disk | Formula Z.

507030700

Unavailable

6

Key

414581300

Unavailable

7

Lock Washer 8 mm

234181401

$0.92

8

Hex. Screw M8 x 65

207086544

$1.47

9

Washer

229081201

Unavailable

10

Spacer

501022300

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Allen Screw M8 x 25

732601156

Unavailable

13

Shim

504097500

Unavailable

14

SHIM - Call your local BRP dealership

504108200

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Allen Screw M6 x 30

223563085

Unavailable

17

Thrust Washer

504141900

Unavailable

18

Key

414820800

Unavailable

19

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

20

Cam (50 Deg.)

504096100

Unavailable

21

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

22

Hex. Nut M6

232061414

$0.53

23

WASHER - Call your local BRP dealership

420245370

Unavailable

24

Sliding Flange Ass'y | Includes 23 - 28. MX Z 670 HO.

504144000

Unavailable

24

Sliding Pulley | Includes 24 - 27.

504143400

Unavailable

25

BUSHING - Call your local BRP dealership

415011200

Unavailable

26

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

27

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

28

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

29

Ring

504142100

Unavailable

30

Fixed Flange Ass'y | Includes 19 - 22. MX Z 670 HO.

504142200

Unavailable

31

Fixed Flange

504141600

Unavailable

32

CUP - Call your local BRP dealership

504142000

Unavailable

33

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

34

WASHER - Call your local BRP dealership

517078700

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

BALL BEARING WITH COLLAR - Call your local BRP dealership

405408300

Unavailable

37

Washer

504141800

Unavailable

38

FLANGE - Call your local BRP dealership

501025000

Unavailable

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Countershaft Extension | Formula S.

504260700

Unavailable

41

Flat Washer 8 mm

234081410

$0.83
