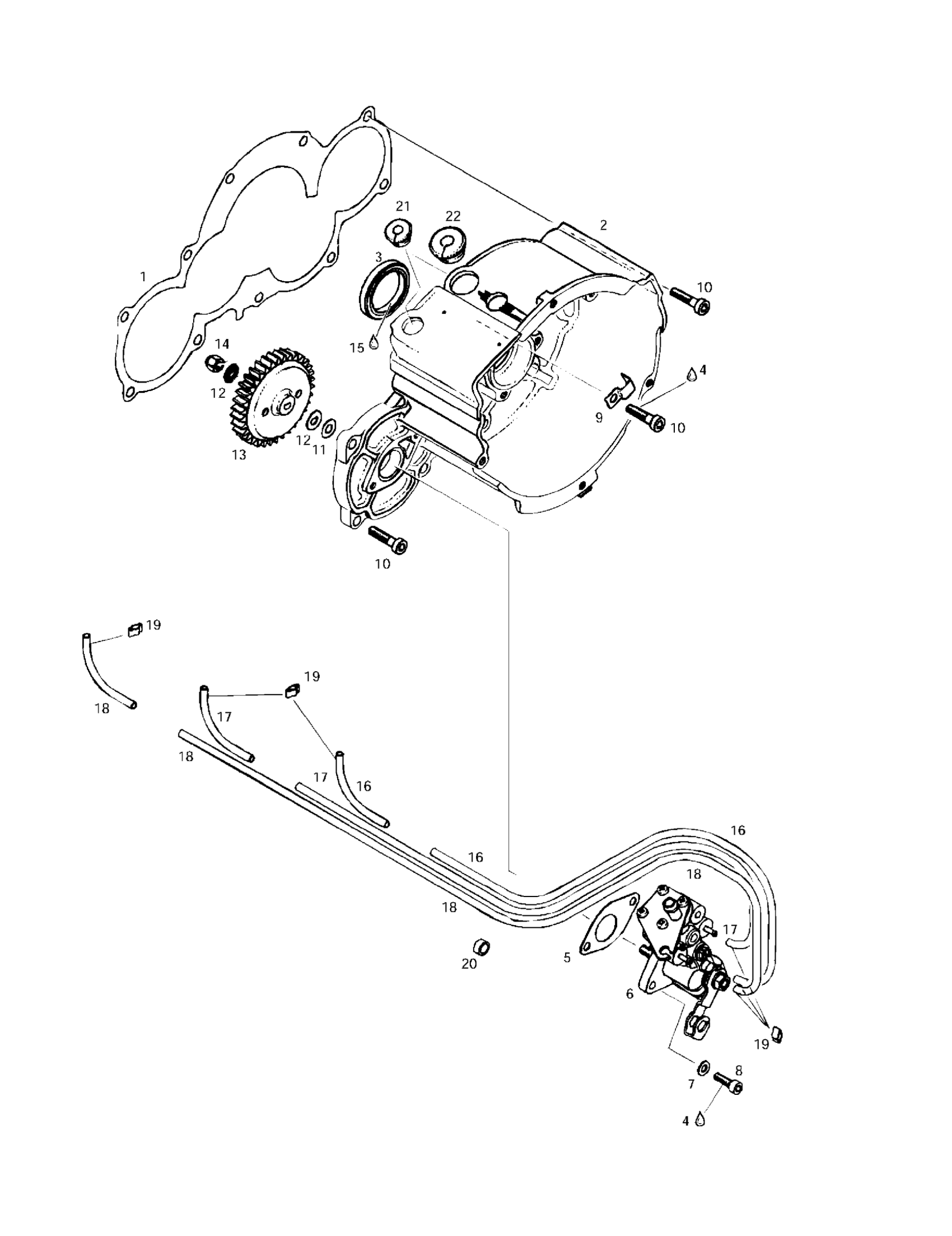

Ski-Doo Formula III LT, 1997 03- Ignition Housing Oil Pump (599) Diagram
#
Description
Price
2
Ignition Housing
420810239
Unavailable
3
OIL SEAL - Call your local BRP dealership
420931290
Unavailable
5
Gasket
420950460
Unavailable
6
Oil pump Ass'y
420886459
Unavailable
7
Lock Washer
420945750
Unavailable
8
Allen Screw M5 x 16
420640071
Unavailable
9
Cable Clamp
420953385
Unavailable
10
Allen Screw M6 x 25
420941691
Unavailable
11
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
12
Washer
420227150
Unavailable
13
Oil Pump Gear (36 Tooth)
420834270
Unavailable
20
Rubber Ring
420960700
Unavailable
21
Cable Grommet
420960280
Unavailable
22
Cable Grommet | Tundra II LT 3270. Tundra II LT 3271.
420960287
Unavailable
