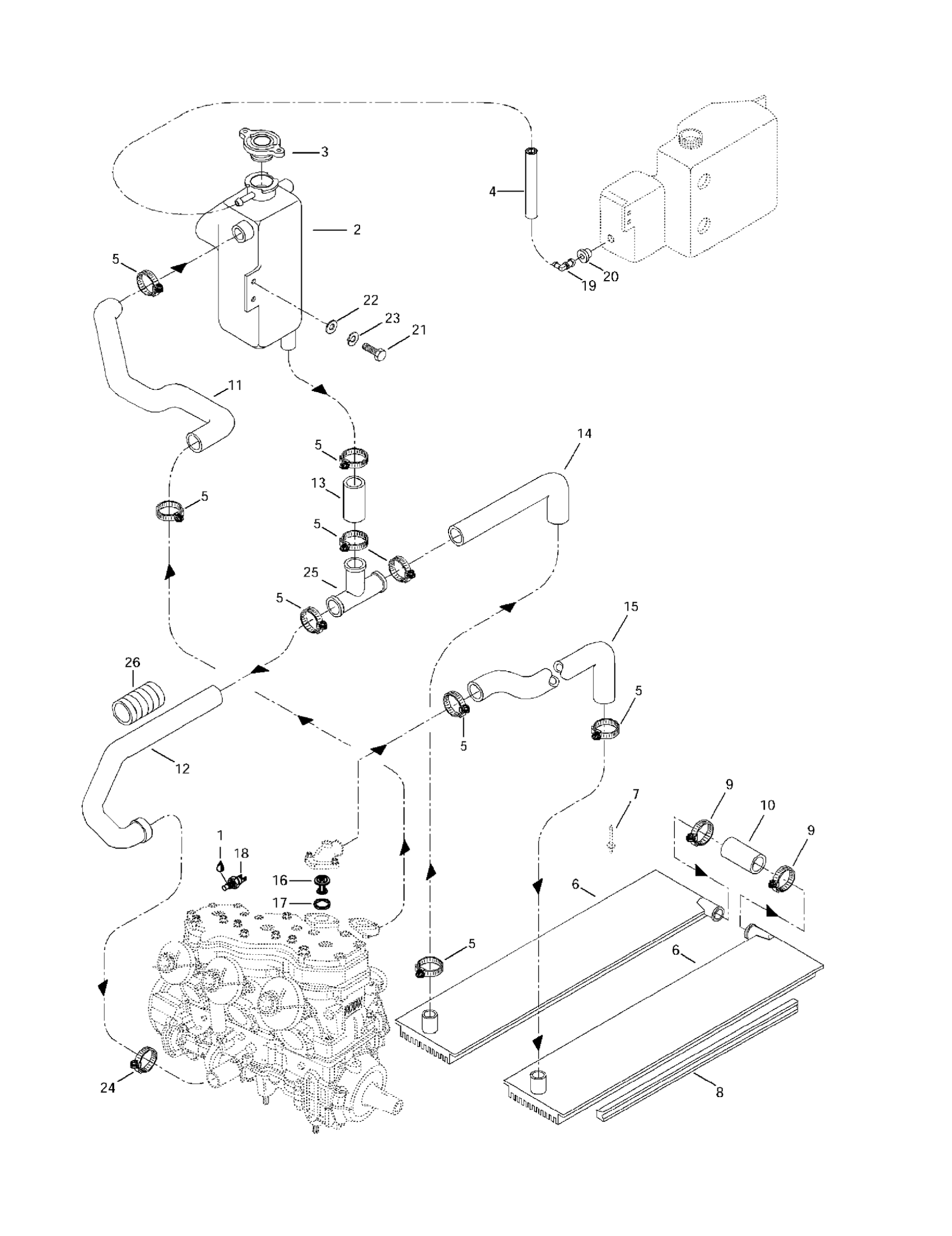

Ski-Doo Formula III LT, 1997 01- Cooling System (599) Diagram

#

Description
Price

1

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

2

Coolant Tank

572071700

Unavailable

3

Pressure Cap

509000187

$29.49

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator

517280510

Unavailable

LH Radiator

517280511

Unavailable

RH Radiator | Formula III 600 LT.

517290710

Unavailable

LH Radiator | Formula III 600 LT.

517290711

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Radiator Protector

415056500

Unavailable

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

9

Clamp Tridon

408803400

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Outlet Hose

414795200

Unavailable

12

Engine Inlet Hose

414949000

Unavailable

13

Hose-Junction

414986700

Unavailable

14

Radiator Outlet Hose

414986600

Unavailable

15

Radiator Inlet Hose

414795500

Unavailable

16

Thermostat This part replaces 414834100.

420922519

$63.99

17

SEALING RING - Call your local BRP dealership

420931270

Unavailable

18

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

19

Elbow Male Connector

414580600

$4.23

20

Grommet

709200285

$9.69

21

Hex. Screw M6 X 16

207161644

$0.74

22

Flat Washer 6 mm

234061410

$1.36

23

Lock Washer M6, Black

234161471

$0.53

24

Not Available As Spare Part - Friction Washer

Unavailable

25

T-Fitting

509000219

$15.89

26

TUBING - Call your local BRP dealership

414991800

Unavailable
