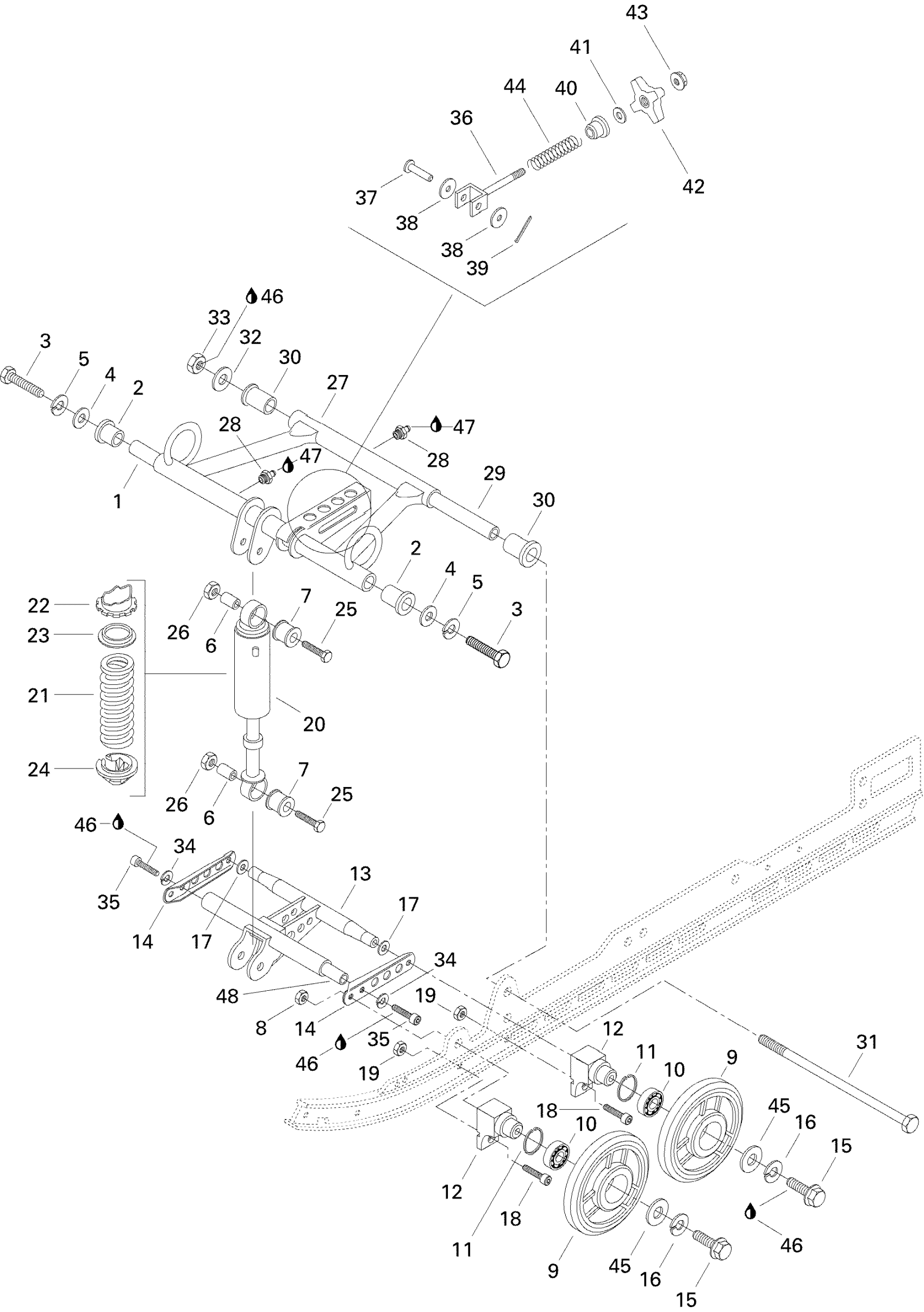

Ski-Doo Formula III LT, 1996 08- Front Arm III LT Diagram

#

Description
Price

1

Upper Axle

503142100

Unavailable

2

CUSHION - Call your local BRP dealership

414530000

Unavailable

3

Hex. Screw M10 X 55

207005544

$2.22

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Spacer

503163700

Unavailable

7

Cushion

414942300

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Idler Wheel 135 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045223

Unavailable

10

Ball Bearing

293350115

$12.11

11

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

12

Support

503140200

Unavailable

13

Front Bracket

503163900

Unavailable

14

Retaining Plate

503149300

Unavailable

15

Hex. Screw M10 x 90 | Tundra II LT 3270. Tundra II LT 3271.

222009065

Unavailable

16

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

17

Flat Washer 10 mm

234001410

$1.26

18

Socket Head Screw M8 X 25

205082544

$1.15

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Center Shock

414927200

Unavailable

21

Spring

415013700

Unavailable

22

Adjustment Cam

505073625

$12.99

23

Spring Guide

503191872

$2.29

24

Spring Stopper

503149700

Unavailable

25

Hex. Screw M10 X 45

207004544

$1.69

26

Elastic Locking Nut M10 X 1.5

233601416

$1.69

27

Front Arm

503157300

Unavailable

28

Grease Fitting

408200700

$3.49

29

Lower Axle

503139400

Unavailable

30

Cushion

414794700

Unavailable

31

Bolt M12 | Formula Z.

503140800

Unavailable

32

Flat Washer 12 mm

234021410

$0.72

33

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Socket Screw M10 X 35

205003544

$1.69

36

«U» Bracket

503141000

Unavailable

37

Clevis Pin

414803900

Unavailable

38

Flat Washer 10 mm

234001410

$1.26

39

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

40

Adjuster Bushing

572043700

Unavailable

41

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

42

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

43

Elastic Flange Nut M10

232501416

$1.48

44

Spring

414863500

Unavailable

45

Washer

503032900

$3.28

46

Loctite 271, 10 ml

293800005

$26.99

47

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

48

Axle

503149400

Unavailable
