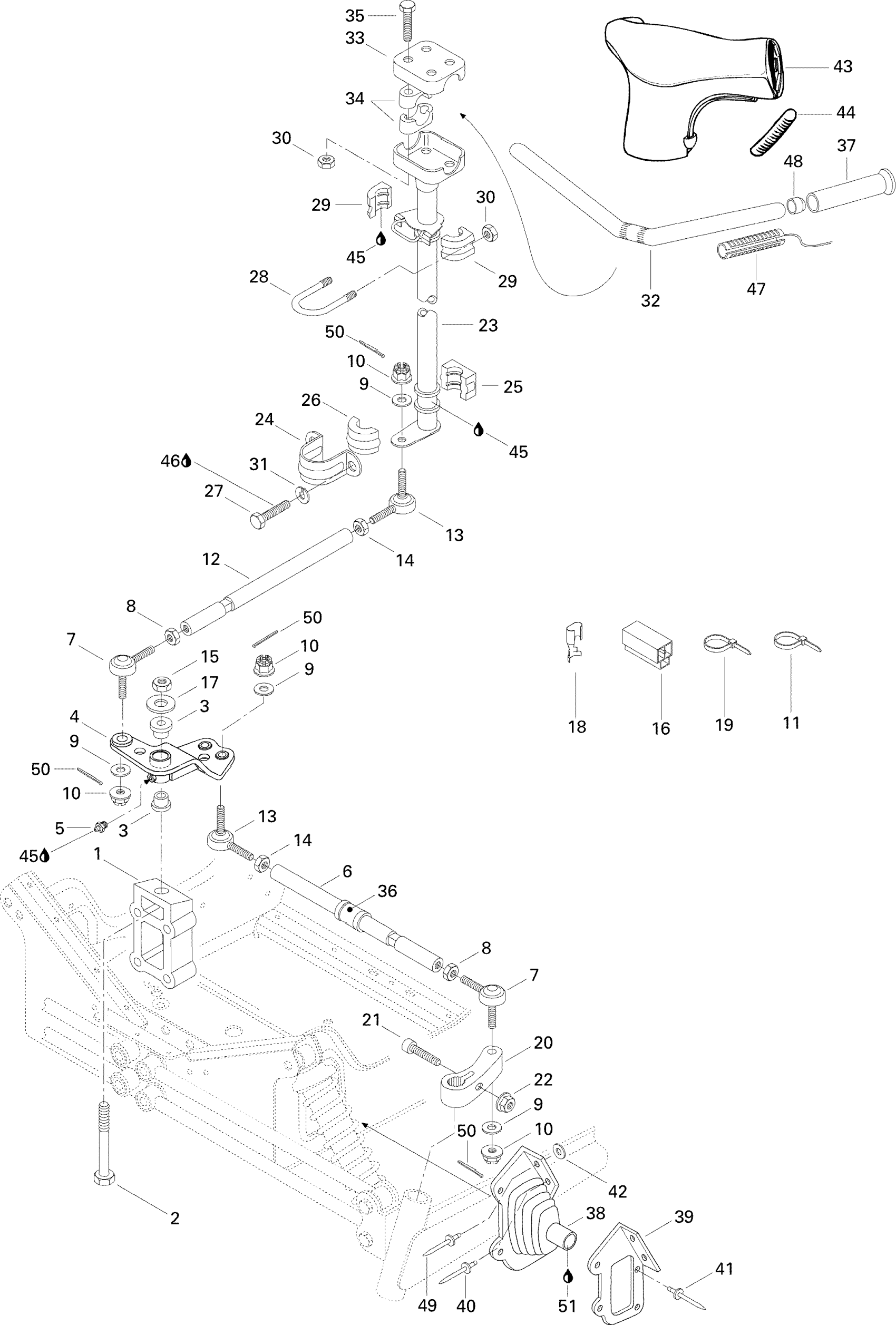

Ski-Doo Formula III LT, 1996 07- Steering System Form III, III LT Diagram
#
Description
Price
1
Block
506121400
Unavailable
2
Screw M12 x 85
222028565
Unavailable
3
Cushion
414794700
Unavailable
4
Pivot Arm
506133000
Unavailable
6
Tie Rod
506130200
Unavailable
7
RH BJoint
414799200
Unavailable
10
Hex. Castle Nut M10
228101045
Unavailable
12
Tie Rod
506110800
Unavailable
13
LH BJoint
414799300
Unavailable
15
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
16
Female Housing
409204300
Unavailable
20
RH Steering Arm
506125700
Unavailable
20
LH Steering Arm
506125800
Unavailable
21
Allen Screw M8 x 35
222983565
Unavailable
23
Main Tube
506127600
Unavailable
24
Retainer Support
517126200
Unavailable
25
Bushing
572064400
Unavailable
26
BUSHING - Call your local BRP dealership
572064500
Unavailable
29
HALF-BUSHING - Call your local BRP dealership
572067100
Unavailable
32
Handlebar
506125900
Unavailable
33
Steering Clamp
506055400
Unavailable
36
BUSHING - Call your local BRP dealership
572036500
Unavailable
38
RH Tie Rod Cap
570024800
Unavailable
38
LH TIE ROD CAP - Call your local BRP dealership
570024900
Unavailable
39
RH Cap Plate
517241200
Unavailable
39
LH CAP PLATE - Call your local BRP dealership
517241300
Unavailable
43
Steering Padding
572083000
Unavailable
44
Key Way
572072400
Unavailable
45
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
48
HANDLEBAR END - Call your local BRP dealership
572081900
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
COTTER PIN - Call your local BRP dealership
371801000
Unavailable
