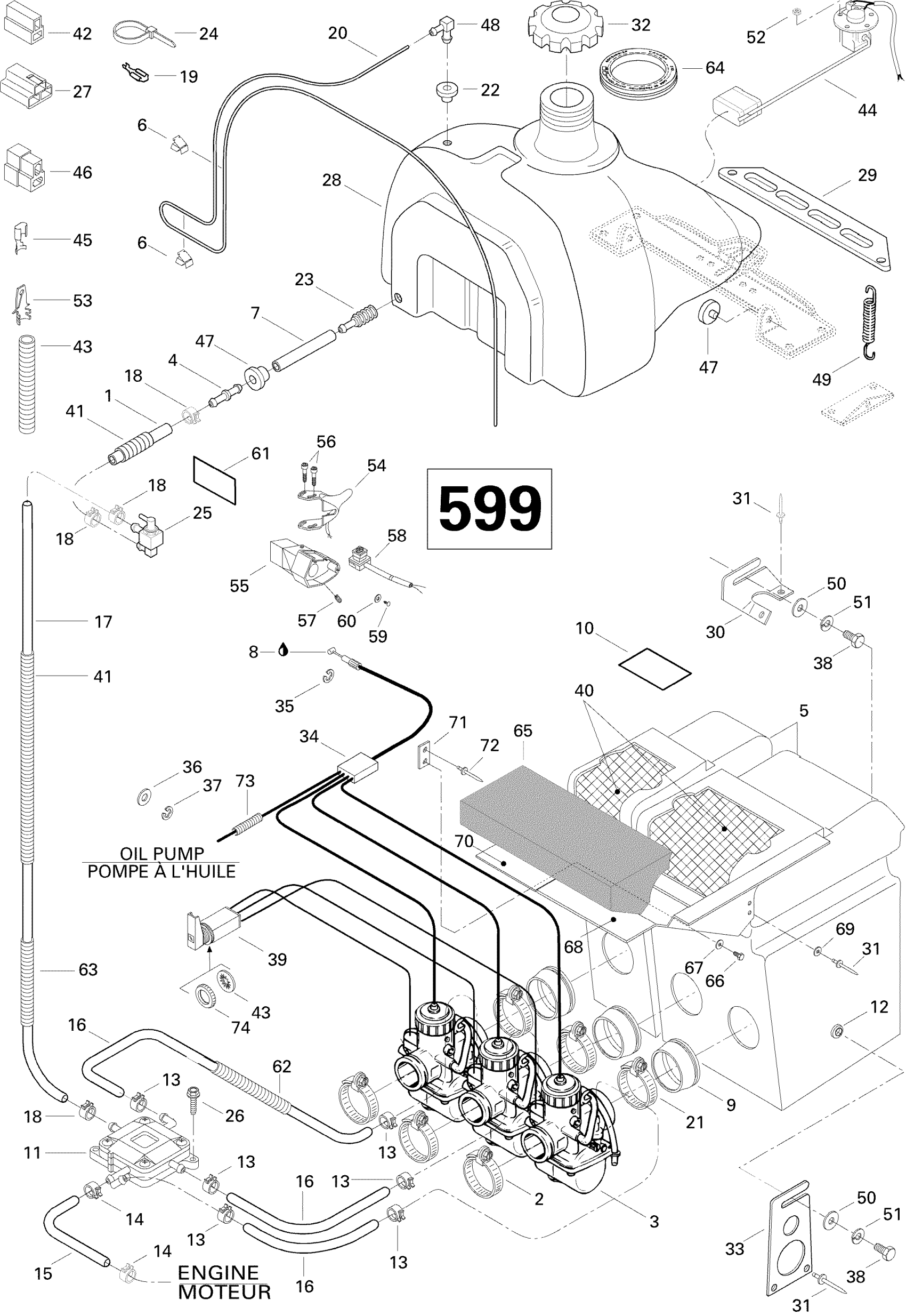

Ski-Doo Formula III LT, 1996 02- Fuel System 599 Diagram

Hose | Formula Z. Formula 583.

414933900

Unavailable

Clamp

420951510

Unavailable

VM 36-172 Carburetor (PTO) | Includes 1 to 31

403124100

Unavailable

VM 36-173 Carburetor (Center) | Includes 1 to 31

403124200

Unavailable

Carburetor VM-36-174 (MAG)

403124300

Unavailable

Male Connector

414872700

$1.90

Air Silencer Ass'y 2 Holes | (Incl. 9,10,12,31,40,68,69)

580647600

Unavailable

Air Silencer Ass'y 1 Hole | (Incl. 9,12,31,40,69,70,71,72)

580647700

Unavailable

Clip

414227300

$1.67

Hose

415005700

$11.58

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

Intake Adaptor

570047000

Unavailable

Warning Decal

414161500

Unavailable

Fuel Pump (70 Liters)

403901100

Unavailable

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

Spring Clamp

414554800

$0.88

Spring Clamp

414415200

$0.88

Hose

219704549

$50.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

Spring Clamp

414655700

$0.72

Female Terminal PACKARD

561503200

Unavailable

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

Clamp

414830100

Unavailable

Grommet

709200285

$9.69

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

Tie-Rap 180 mm

414115200

$0.11

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

Hexagonal Head Screw

210262050

$2.11

Female Terminal Housing (3 circuits)

409008500

Unavailable

Fuel Tank

572057100

Unavailable

Fuel Tank Bracket

517249200

Unavailable

Internal Bracket

518313900

Unavailable

Rivet

390406600

Unavailable

Fuel Tank Cap

513033025

$24.49

External Bracket

517252000

Unavailable

Throttle Cable and Housing VM-36

414966501

Unavailable

Circlip

414274500

$0.90

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip

414753500

$0.71

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Choke Cable

415006200

Unavailable

Air Filter Foam (1 Holes Silencer)

572029103

Unavailable

Air Filter Foam (2 Holes Silencer)

572029007

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.49

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

Lock Washer, Interior Teeth

394103300

Unavailable

Fuel Level Sensor

410108400

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

Grommet | Europe

707800347

$10.49

Male Connector

414814100

$2.22

Spring

415107100

$6.35

Flat Washer

224061121

$0.53

Lock Washer M6, Black

234161471

$0.53

Elastic Stop Nut M5

232551414

$0.87

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Handle Ass'y

512059348

$93.99

Heat Throttle Handle (38 mm) | Formula III 700 R.

572053500

Unavailable

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

Flange Screw

732601143

$4.12

Socket Set Screw M8 X 10

414440800

$4.12

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Screw

414473200

Unavailable

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

Security Label | MX Z 670 HO.

414931500

Unavailable

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing

414942900

Unavailable

Rubber Ring

570276900

Unavailable

Air Filter

415027600

Unavailable

Screw M5 x 14

222851465

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

Deflector (2 Holes Silencer)

517284900

Unavailable

Flat Washer

517225900

$0.18

Deflector (1 Holes Silencer)

517285000

Unavailable

Plate

517278500

Unavailable

Pop Rivet 3/16"

390402400

$0.35

Was 409901800 Tubing (13 mm)

219704400

$14.49

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable
