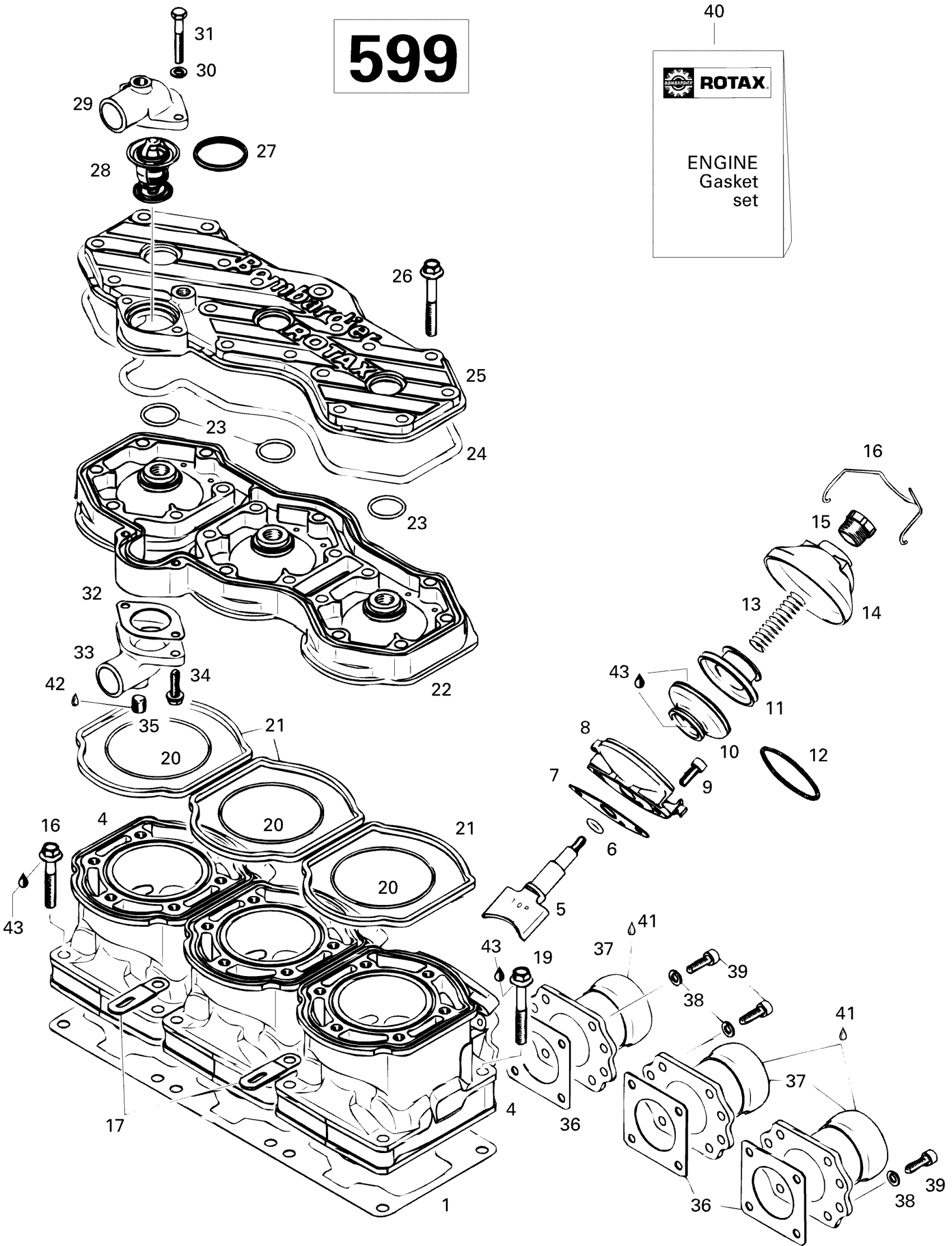

Ski-Doo Formula III LT, 1996 01- Cylinder And Exhaust Manifold 599 Diagram

#

Description
Price

1

Base Gasket Set | Includes 1 - 3. Formula III 600. Formula III 600 R. Formula III 600 LT.

420931315

Unavailable

1

Gasket 0.4 mm | Formula III 600.

420931310

Unavailable

2

Gasket 0.6 mm | Formula III 600.

420931311

Unavailable

3

Gasket 0.3 mm | Formula III 600.

420931312

Unavailable

4

Cylinder (Nicasil Coated) | Formula III 600.

420923112

Unavailable

5

Exhaust Valve | Formula III 600.

420854290

Unavailable

6

O-Ring

420430110

$4.44

7

Gasket

420250239

$7.37

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$2.22

10

Exhaust Bellows

420260723

$42.49

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Hose Spring This part replaces 420239048.

420939281

$7.41

13

SPRING - Call your local BRP dealership This part replaces 420239940.

420239952

Unavailable

14

Valve Cover

420911552

$38.99

15

Adjuster Screw

420241221

$14.22

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Cable Fixation

420953140

Unavailable

18

Hex. Collar Screw M8 x 45

420640432

$8.57

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-RING - Call your local BRP dealership | Formula III 600.

420950305

Unavailable

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Magenta)

420923120

Unavailable

23

O-Ring

420430782

$5.39

24

O-Ring | Formula III 700 R.

420931330

Unavailable

25

Cylinder Head Cover (Magenta) | Formula III 600. Formula III 600 R. Formula III 600 LT.

420923130

Unavailable

26

Hex. Screw M8 X 56.5

420941627

$8.57

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

Thermostat This part replaces 414834100.

420922519

$63.99

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.48

32

Gasket

420850338

$11.60

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

Gasket

420850552

$8.85

37

Exhaust Socket Ass’y

420978815

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Socket Head Screw M6 X 20

205062044

$1.26

40

Gasket Set | Formula III 600.

420886310

Unavailable

41

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Dow Corning 111, 150 g

413707000

$59.99
