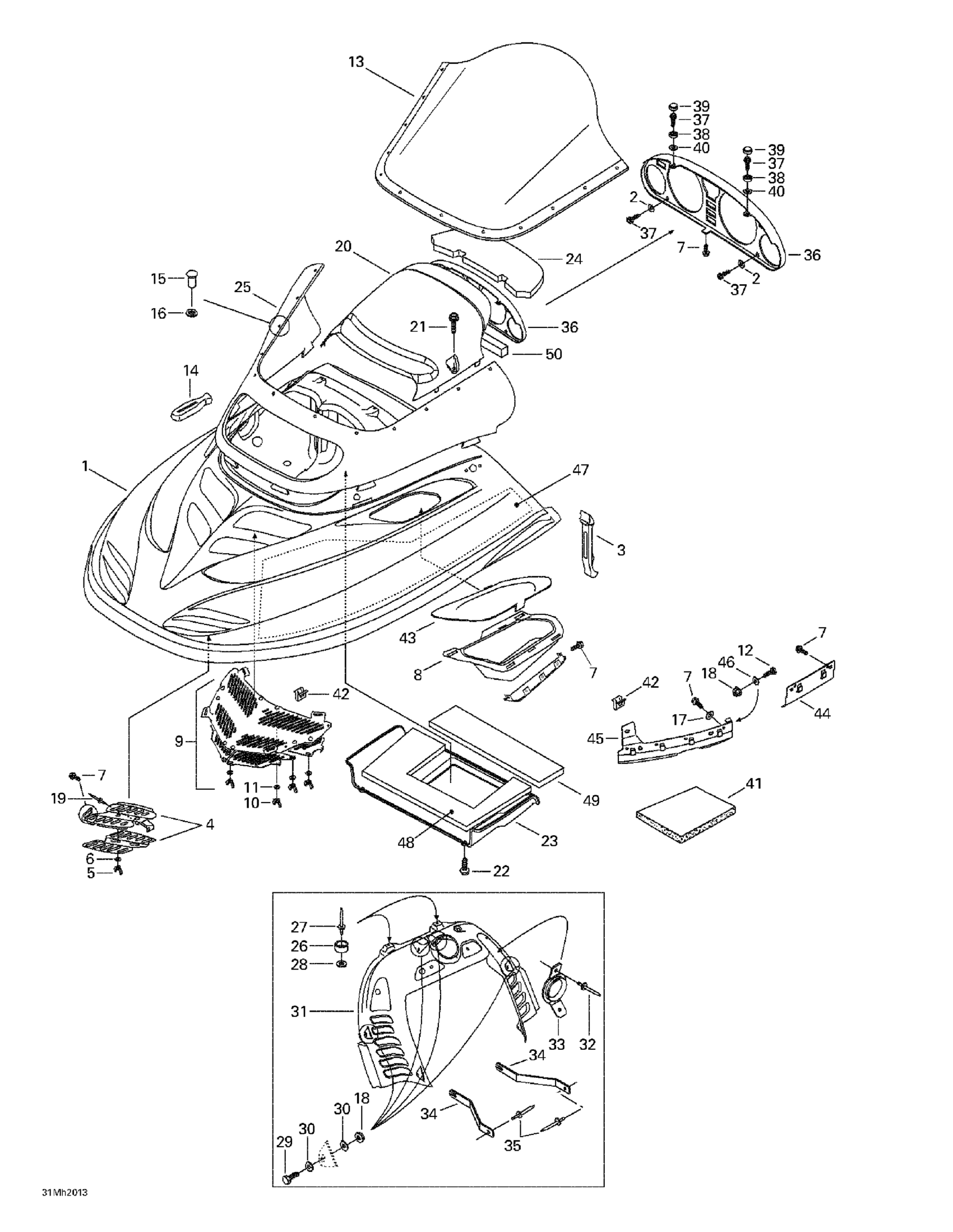

Ski-Doo Formula III 700 R, 2000 09- Cab, Console Diagram

#

Description
Price

1

Hood (Pearl Purple)

517302172

Unavailable

2

Washer

517124300

$0.19

3

Hood Latch

517302152

$18.49

4

RH Front Grille Ass'y | Includes 3 - 5.

517302205

Unavailable

LH Front Grille Ass'y

517302208

Unavailable

5

Wing Nut M5

414070300

Unavailable

6

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

7

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

8

Inlet Duct

517302155

Unavailable

9

Center Grill Ass'y | Includes 8 - 14.

517302073

Unavailable

10

Wing Nut M5

414070300

Unavailable

11

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

12

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

13

Low Windshield

415045800

Unavailable

14

Windshield Latch

570023800

$4.49

15

STUD - Call your local BRP dealership

572103500

Unavailable

16

Push Nut

732610072

$2.19

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Elastic Flange Nut M5

232251414

Unavailable

19

Pop Rivet 3/16"

390402400

$0.35

20

Air Intake Deflector

572107300

Unavailable

21

Tuflock Phillips Plastic Screw

414745900

$1.69

22

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

23

Plate

572087800

Unavailable

24

Filter Foam

415123100

Unavailable

25

Windshield Support

517302076

Unavailable

26

Rubber Stopper

415018100

$2.49

27

Pop Rivet 1/8" | SM5

390401600

$5.69

28

WASHER - Call your local BRP dealership

293150007

Unavailable

29

Hex. Screw M5 X 20

207152044

$0.90

30

Washer | DS 650 X

391301600

$0.48

31

Console | Formula III 800.

517302138

Unavailable

Console | Formula III 700 R.

517302315

Unavailable

32

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

33

Rope Guide

517296800

Unavailable

34

Bracket

517296900

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Gauge Support

572098600

Unavailable

37

Screw K40 X 10

241140060

$1.48

38

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

39

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

40

Flat Washer 4 mm, Stainless

234042600

$1.15

41

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

42

Edge Clip

517302785

$0.88

43

RH Grille

517302156

Unavailable

LH Grille

517302167

Unavailable

44

Hood Guide

517302108

Unavailable

45

RH Hood Guide

517301200

Unavailable

LH Hood Guide

517301300

Unavailable

46

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

47

LH Side Foam

517302184

Unavailable

RH Side Foam

415045100

Unavailable

48

Center Foam

415045300

Unavailable

49

Rear Foam

415045400

Unavailable

50

Deflector Foam

415045500

Unavailable

51

Plate

517302414

Unavailable
