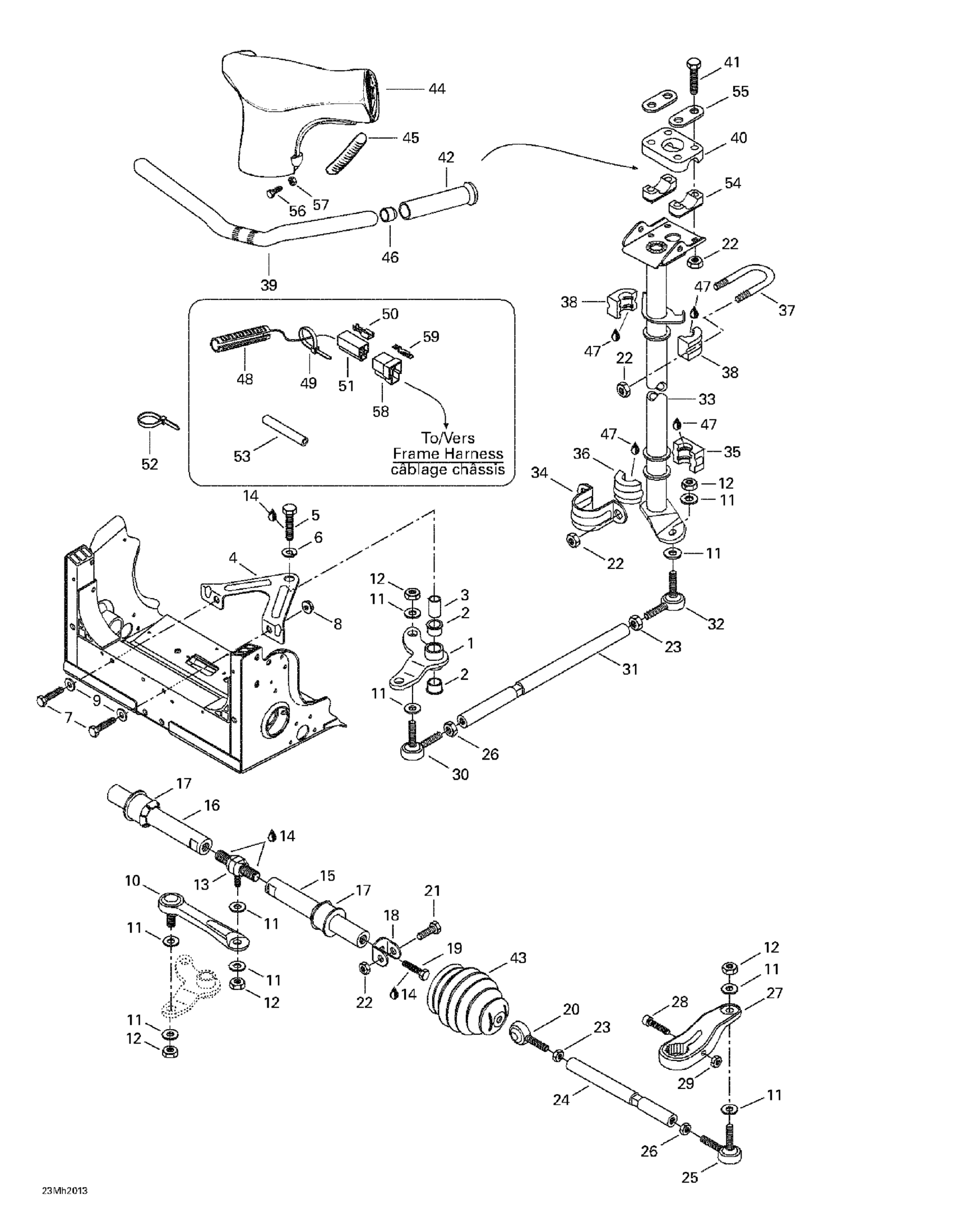

Ski-Doo Formula III 700 R, 2000 07- Steering System Diagram

#

Description
Price

1

Pivot Arm

506129500

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

Pivot

506131500

Unavailable

4

PIVOT SUPPORT - Call your local BRP dealership

506138400

Unavailable

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Lock Washer Helical M10

234101411

$0.23

7

Hex. Screw M6 X 60

207066044

$0.67

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Flat Washer

224061121

$0.53

10

Ball Stud Lever

415059800

Unavailable

11

Washer

503175800

$3.28

12

Elastic Flange Nut M10

232501416

$1.48

13

Ball Joint (Double)

415053300

Unavailable

14

Loctite 271, 10 ml

293800005

$26.99

15

Sliding Bar (Short)

506129400

Unavailable

16

Sliding Bar (Long)

506129402

Unavailable

17

Cushion

572108500

Unavailable

18

Bracket

506138300

Unavailable

19

Hex. Screw M10 X 25

207102544

$1.37

20

LH Ball Joint

415048600

Unavailable

21

Hex. Screw M8 X 40

207084044

$1.15

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

LH Threaded Hex. Jam Nut M10

250100016

$0.74

24

Tie-Rod

506129600

Unavailable

25

Ball Joint

506151491

$45.99

26

RH Threaded Hex. Jam Nut M10

732610010

$0.74

27

RH Steering Arm

506151320

Unavailable

LH Steering Arm

506151321

Unavailable

28

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

31

Tie Rod

506131200

Unavailable

32

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

33

Main Tube

506151169

Unavailable

34

Retainer Support

517126200

Unavailable

35

Bushing

572064400

Unavailable

36

BUSHING - Call your local BRP dealership

572064500

Unavailable

37

U-clamp | X

506060600

$17.80

38

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

39

Handlebar

506142000

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Hex. Screw M8 X 55

207085544

$1.68

42

RH Grip 6-1/2"

506151530

$16.49

43

Tie-Rod Cap

570054100

Unavailable

44

Steering Padding

506151182

Unavailable

45

KEYWAY - Call your local BRP dealership | Sport / Sport GT

572106200

Unavailable

46

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

48

Heating Grip

515175573

$63.99

49

Tie Wrap 94 mm | 4X4

293750001

$1.03

50

Female Terminal

561503100

$2.41

51

Female Housing

409204300

Unavailable

52

Tie-Rap 180 mm

414115200

$0.11

53

Vinyl

515175322

Unavailable

54

Steering Support

709400919

$22.49

55

Stiffner

709400509

$4.69

56

Phillips Screw M5 X 20

208652044

$1.47

57

Hex. Flange Elastic Nut M5

233251414

$1.04

58

Female Terminal

561503100

$2.41

59

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable
