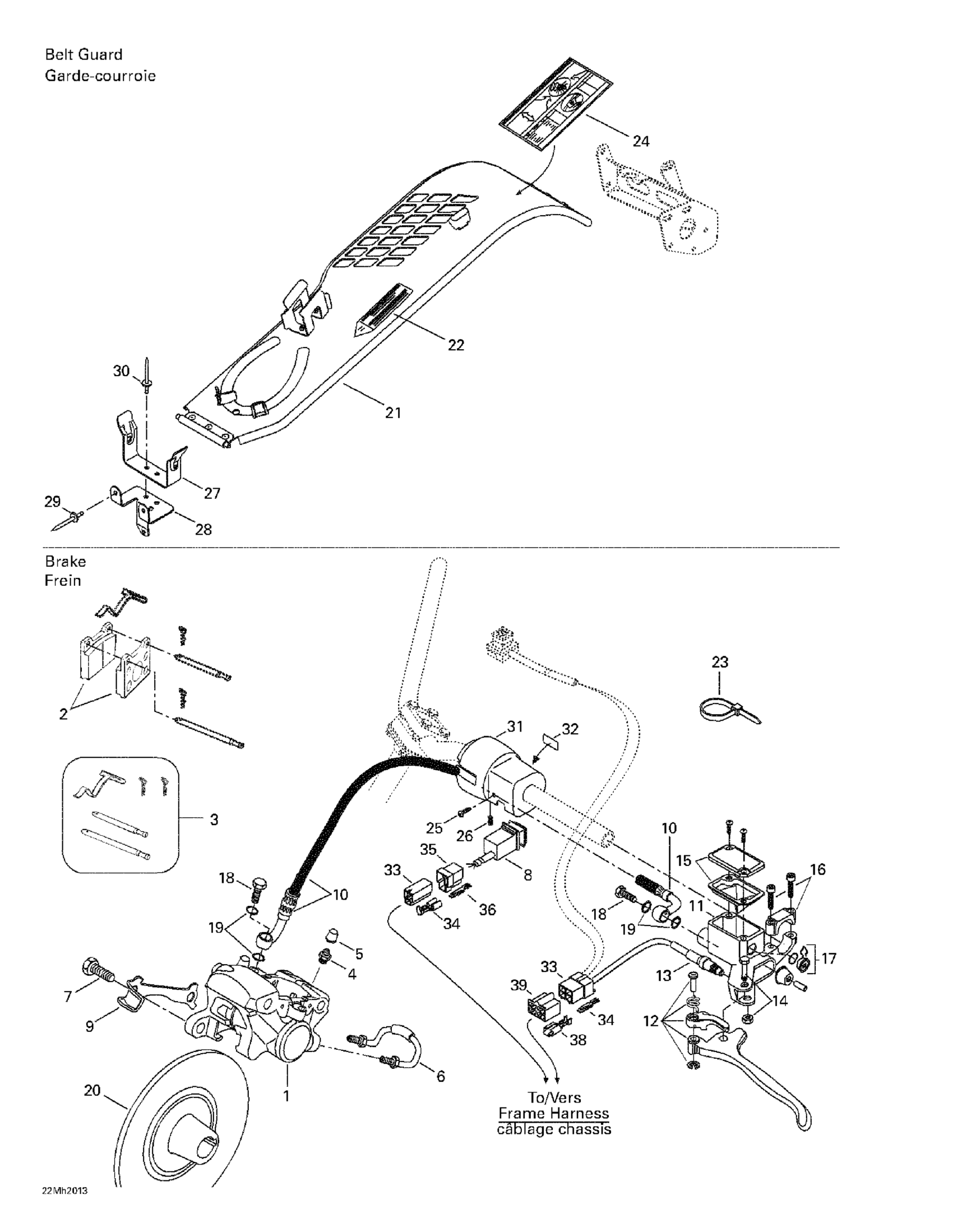

Ski-Doo Formula III 700 R, 2000 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Caliper | Includes 10 - 15.
414920000
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
8
Switch | SWT 550
515175423
Unavailable
9
Locking Tab
507031900
Unavailable
10
Hose
507032220
Unavailable
12
LEVER - Call your local BRP dealership
507032428
Unavailable
17
WINDOW - Call your local BRP dealership
414990600
Unavailable
20
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
21
Belt Guard Ass'y | Includes 4 - 7.
417300050
Unavailable
22
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
24
Suspension Adjustment Decal
418001715
Unavailable
25
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership
250000022
Unavailable
28
Pulley Guard Support
518317000
Unavailable
31
Brake Housing
515175307
Unavailable
32
Switch Decal
415025500
Unavailable
33
Female Housing
409204300
Unavailable
35
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
36
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
37
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
38
Female Terminal
409205000
Unavailable
39
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
