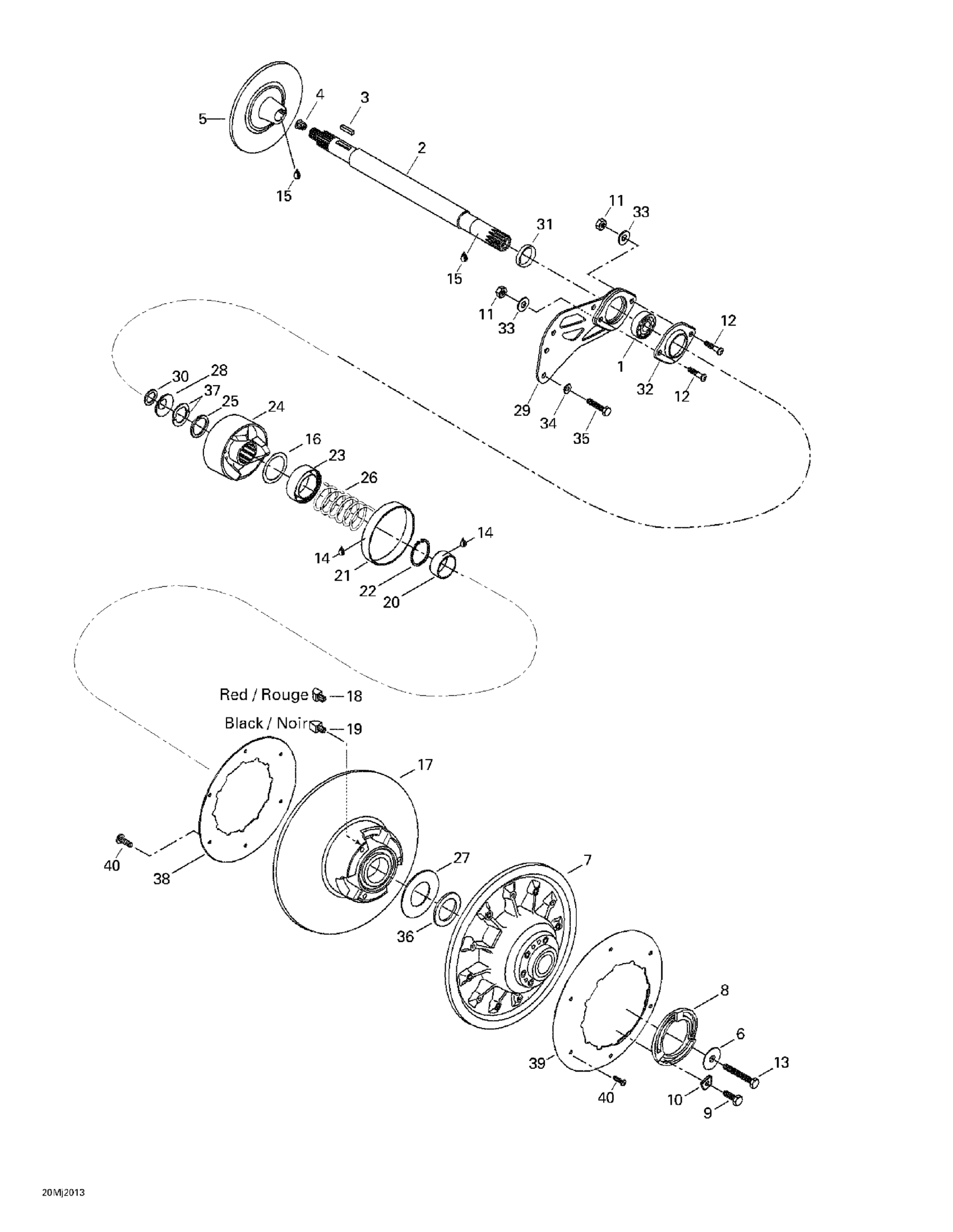

Ski-Doo Formula III 700 R, 2000 05- Drive Pulley 2 Diagram

#

Description
Price

1

BALL BEARING - Call your local BRP dealership

405408200

Unavailable

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

KEY - Call your local BRP dealership

507021300

Unavailable

4

CORK - Call your local BRP dealership

414784800

Unavailable

5

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

6

Strength Washer

517302322

$12.63

7

Fixed Flange Ass'y | Includes 10 - 13.

417126414

Unavailable

8

Adjustment Ring

415005800

Unavailable

9

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

10

Adjustment Shim

415005900

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

13

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

14

Loctite 609, 10 ml

413703100

$26.99

15

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

16

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

17

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

18

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

19

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

20

Not Available As Spare Part - Friction Washer

Unavailable

21

BUSHING - Call your local BRP dealership

417126902

Unavailable

22

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

23

GUARD - Call your local BRP dealership

417126381

Unavailable

24

Cam Ass'y

417126385

Unavailable

25

Spacer

417126375

Unavailable

26

Release Spring, Purple | North America

414978300

$33.99

27

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

28

Protector

417300055

Unavailable

29

Spacer (Casting)

080039300

Unavailable

30

Spacer

417300265

$2.29

31

Spacer

504149100

$12.99

32

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

33

Flat Washer 8 mm

234081410

$0.83

34

Lock Washer M6, Black

234161471

$0.53

35

Hex. Screw M6 X 18

207161844

$0.76

36

SHIM - Call your local BRP dealership

504112300

Unavailable

37

HALF KEY - Call your local BRP dealership

371911000

Unavailable

38

Aerodynamic Cover

504149700

Unavailable

39

AERODYNAMIC COVER - Call your local BRP dealership

504151831

Unavailable

40

Screw M5 x 11

732600032

Unavailable
