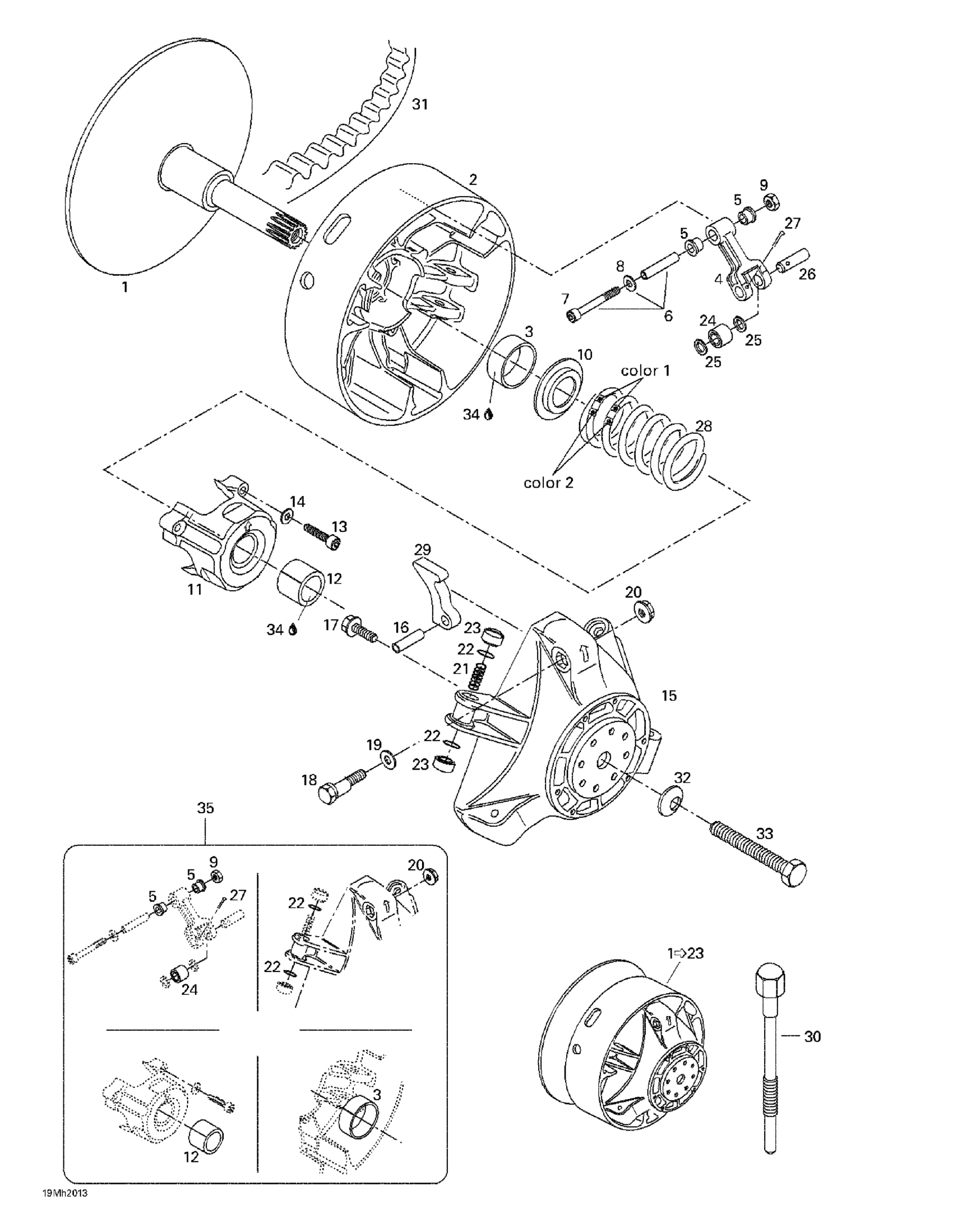

Ski-Doo Formula III 700 R, 2000 05- Drive Pulley Diagram

Drive Pulley Ass'y | Includes 1 - 23.

417222325

Unavailable

Fixed Flange

417222411

$539.99

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

Unavailable

Bushing

417004201

$25.99

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

Bushing

417004305

$11.52

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Spring Seat

417222044

Unavailable

Spring Cover Ass'y | Includes 9 - 10.

417222157

Unavailable

Bushing

417004501

$24.99

Socket Screw M6 X 40

205064086

Unavailable

WASHER - Call your local BRP dealership

420245370

Unavailable

Governor Cup

417222059

Unavailable

Pin M8 X 24

732804009

Unavailable

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417004308

$13.99

Cotter Pin

250400060

$2.00

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

Ramp 293 x | Formula III 700 R.

417005293

Unavailable

Ramp 295

417005295

Unavailable

Puller This part replaces 529022400.

529000064

$71.99

Drive Belt

417300066

$134.99

Spring Washer 14 mm

250200006

$6.99

Drive Pulley Bolt

417120000

$65.49

Loctite 609, 10 ml

413703100

$26.99

Clutch Repair Kit

417006100

$189.99
