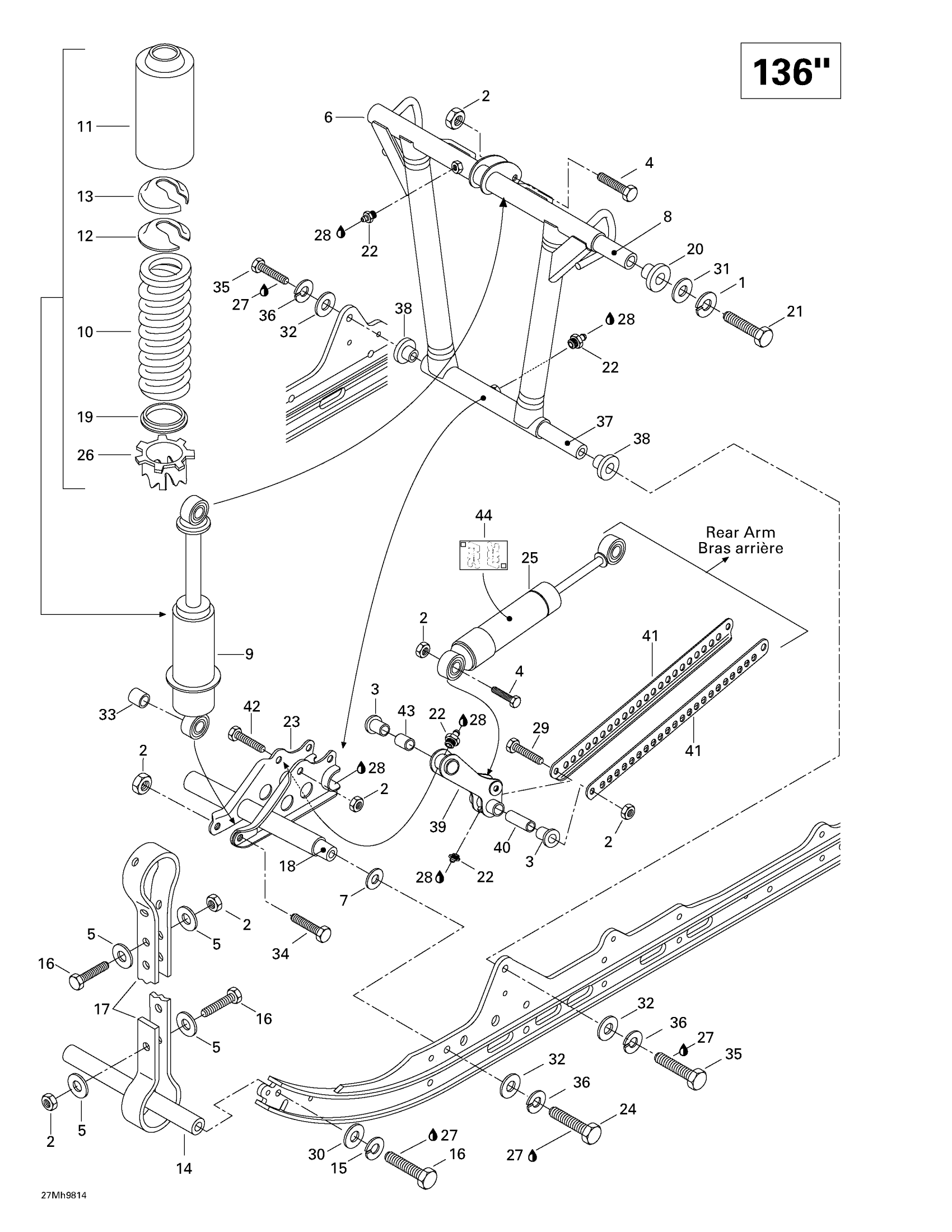

Ski-Doo Formula III 600 LT, 1998 08- Front Arm, Rear Suspension (136’’) Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Plastic Cushion

415052300

Unavailable

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm | Formula Z 583. Formula 583 Deluxe.

503176000

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock | Formula III 600 LT.

415102100

Unavailable

10

Spring

415057600

Unavailable

11

Protector

503193663

$37.99

12

Cap

706200785

$4.69

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Shock | Formula III 600 LT.

415102200

Unavailable

26

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

Hex. Screw M8 X 90

207089044

$3.48

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.

222026065

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

39

Lever

503171400

Unavailable

40

Tie Rod Shaft

503171600

Unavailable

41

Tie Rod | Formula III 600 LT.

503170900

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

Pivot Axle

503171700

Unavailable

44

Shock Decal

418001500

Unavailable
