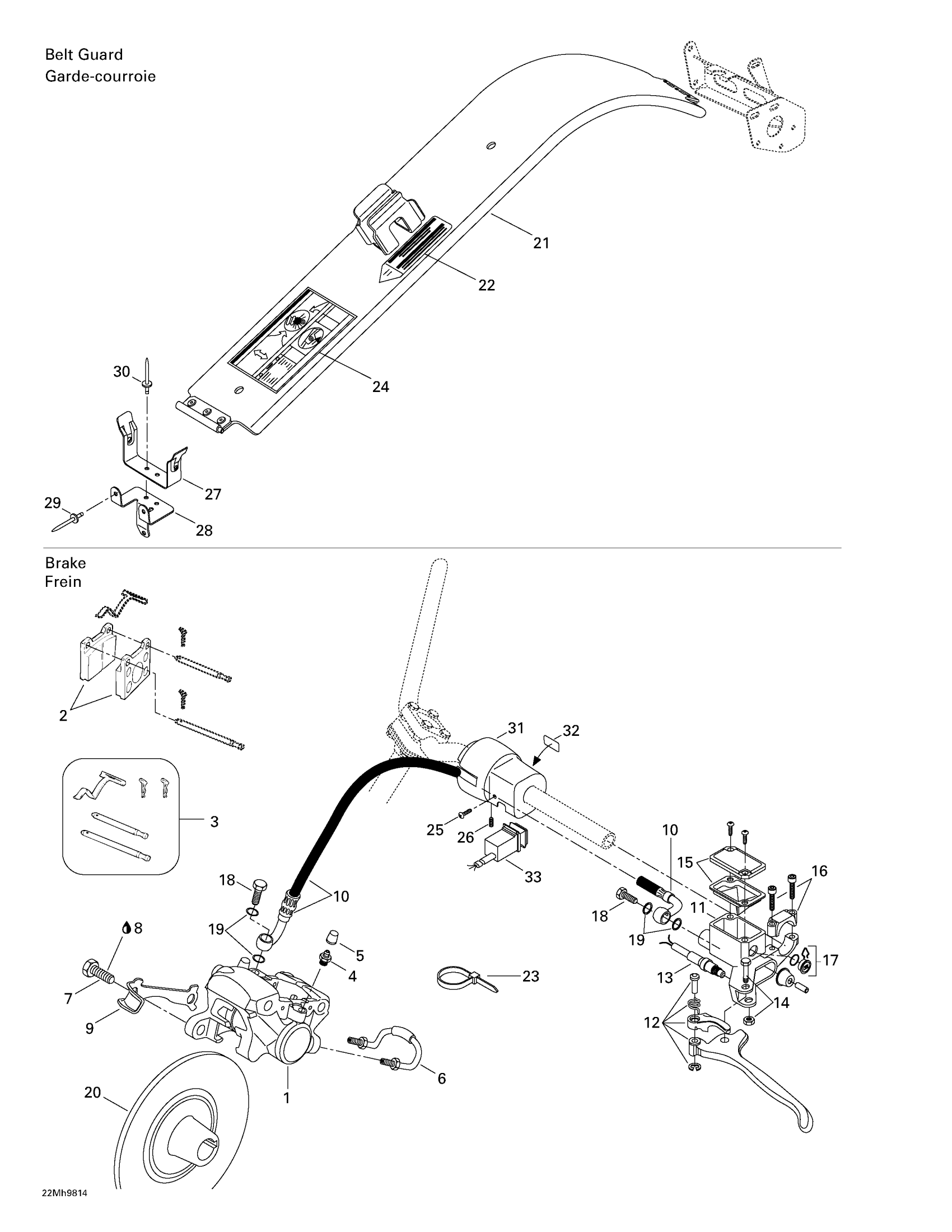

Ski-Doo Formula III 600 LT, 1998 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Caliper | Includes 10 - 15.
414920000
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
9
Locking Tab
507031900
Unavailable
10
Hose
415046500
Unavailable
12
LEVER - Call your local BRP dealership
507032428
Unavailable
17
WINDOW - Call your local BRP dealership
414990600
Unavailable
20
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
21
Belt Guard Ass'y | Includes 21 - 22.
417222031
Unavailable
22
Warning Decal
415028900
Unavailable
24
Suspension Adjustment Decal | Formula III 600.
418001713
Unavailable
Suspension Adjustment Decal | Mach Z LT. Mach Z LT R.
418001716
Unavailable
Suspension Adjustment Decal
418001715
Unavailable
25
Screw
414473200
Unavailable
28
Pulley Guard Support
518317000
Unavailable
31
Housing
572099900
Unavailable
32
Switch Decal
415025500
Unavailable
33
Light Switch
515173900
Unavailable
