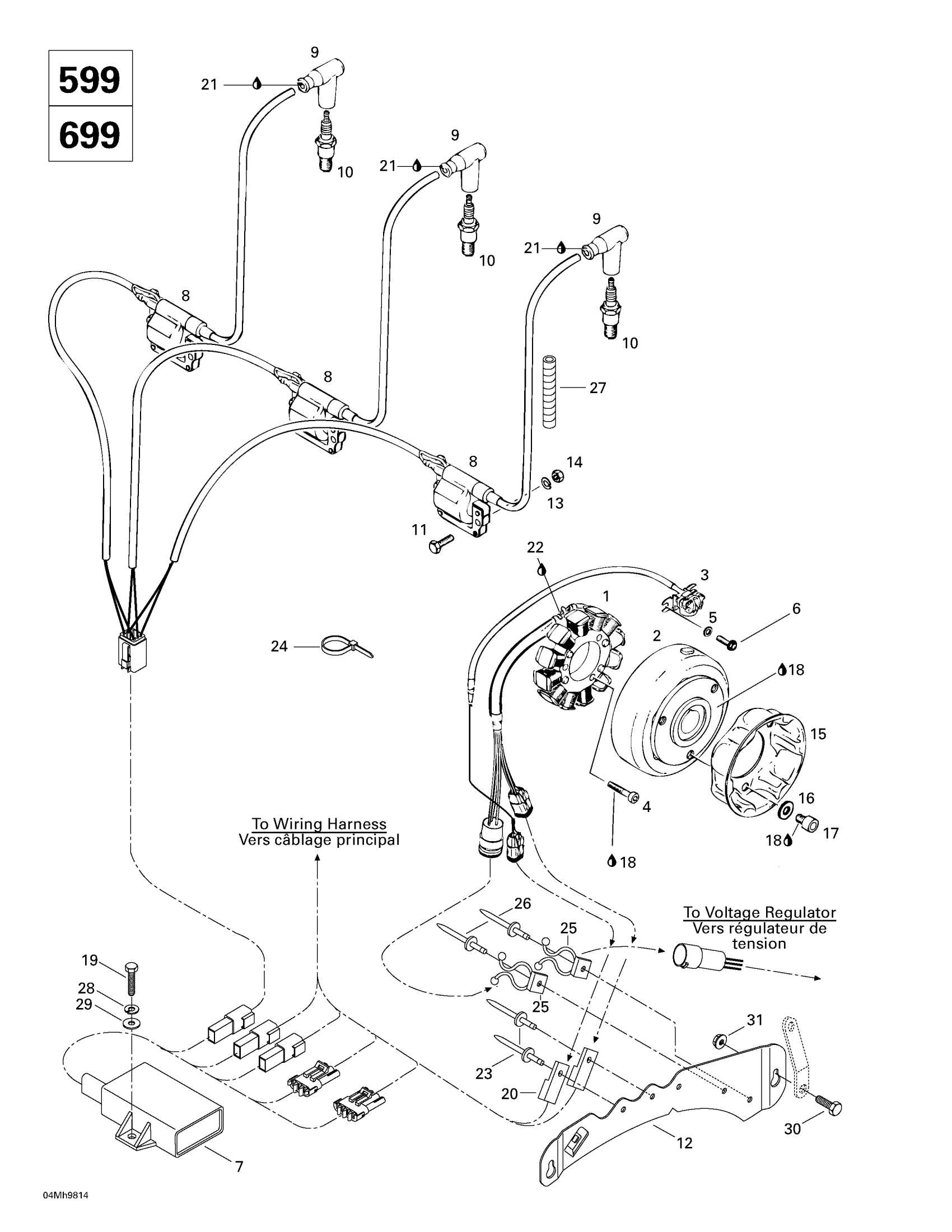

Ski-Doo Formula III 600 LT, 1998 03- Magneto 12V 290W (599, 699) Diagram

Magneto Ass'y 12V 290W | Includes 1 - 3.

410922600

Unavailable

Stator Ass'y

410922700

Unavailable

Magneto Flywheel

410922800

Unavailable

Pick Up Ass'y

410922900

Unavailable

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

WASHER - Call your local BRP dealership

420827800

Unavailable

Taptite Screw M5 X 16

420941928

Unavailable

IGNITION MODULE - Call your local BRP dealership

512059219

Unavailable

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

SPARK PLUG CAP - Call your local BRP dealership

414864000

Unavailable

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Housing Support

517294900

Unavailable

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

Hex. Nut M6

232061414

$0.53

Starting Pulley

420852417

Unavailable

Flat Washer

420827405

$1.69

Socket Head Screw M8 X 12

420841520

$1.69

Loctite 243, 10 ml

293800060

$21.49

Hex. Screw M6 X 16

207161644

$0.74

Clip

270000141

$11.49

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Tie-Rap 180 mm

414115200

$0.11

CLIP - Call your local BRP dealership

415115100

Unavailable

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

Was 409901800 Tubing (13 mm)

219704400

$14.49

Lock Washer M6, Black

234161471

$0.53

Flat Washer 6 mm

234061410

$1.36

Hex. Screw M5 X 14

207151444

$0.87

Hex. Flange Elastic Nut M5

233251414

$1.04
