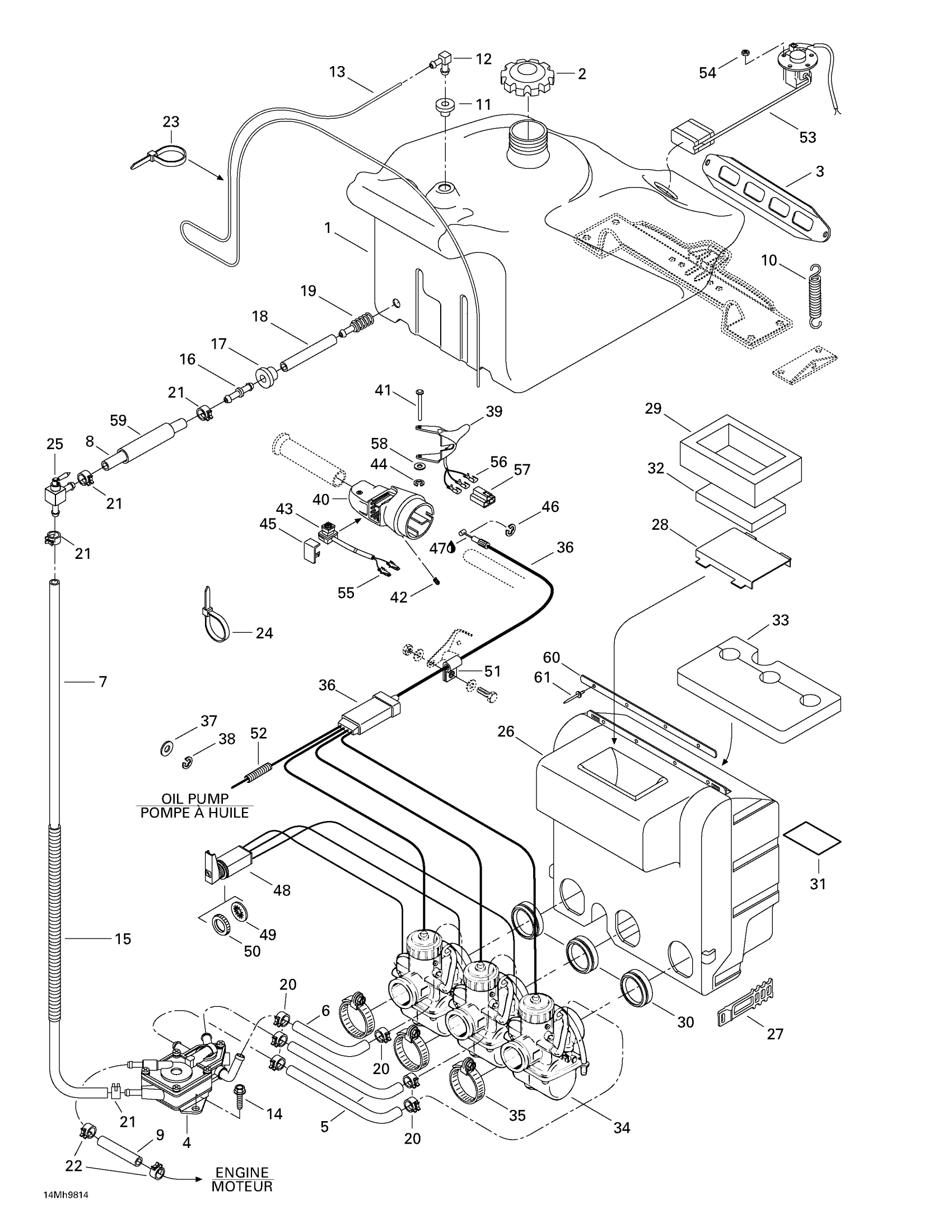

Ski-Doo Formula III 600 LT, 1998 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

572088000

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Tank Bracket

517249200

Unavailable

4

FUEL PUMP - Call your local BRP dealership

513032929

$79.99

5

Tube

415117800

Unavailable

6

Formed Tube | Formula III 700 R.

415117900

Unavailable

7

Formed Hose

415046200

Unavailable

8

Hose

415112100

Unavailable

9

Hose

219704549

$50.99

10

Spring

415107100

$6.35

11

Grommet

709200285

$9.69

12

Male Connector

414814100

$2.22

13

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

15

Tubing 16 Mm 1000Mm Long

219704408

$7.49

16

Male Connector

414872700

$1.90

17

Grommet | Europe

707800347

$10.49

18

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

19

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

20

Spring Clamp

414420700

$0.72

21

Spring Clamp

414655700

$0.72

22

Spring Clamp

414415200

$0.88

23

Tie-Rap 180 mm

414115200

$0.11

24

Tie Wrap 368 mm

293750008

$1.04

25

Shut-Off Valve

415112200

Unavailable

26

Air Silencer Ass'y (3 Holes) | Includes 26 - 33.

580651701

Unavailable

27

LATCH - Call your local BRP dealership

570069700

Unavailable

28

Intake Grill

517294400

Unavailable

29

Lower Foam

415081300

Unavailable

30

Air Adaptor | Formula III 700 R.

570065900

Unavailable

31

Warning Decal

414161500

Unavailable

32

Air Filter

415081400

Unavailable

33

Inner Foam

415081200

Unavailable

34

VM 36-184 Carburetor | Includes 1 - 37. Formula III 600. Formula III 600 R. Formula III 600 LT.

403132700

Unavailable

VM 38-396 Carburetor (PTO/MAG) .. | Formula III 700. Formula III 700 R.

403133000

Unavailable

VM 38-397 Carburetor (Center) | Formula III 700. Formula III 700 R.

403133100

Unavailable

35

Clamp

420951510

Unavailable

36

Throttle Cable and Housing

415044400

Unavailable

37

Flat Washer 8 mm, Nylon

234081100

$1.39

38

Circlip

414753500

$0.71

39

Heat Throttle Handle Ass'y (38 mm) | MX Z 500.

572090300

Unavailable

Handle Ass'y 40 mm

572101900

Unavailable

40

Throttle Handle Housing

572100900

Unavailable

41

Lever Pin

414438700

$11.64

42

Socket Set Screw M8 X 10

414440800

$4.12

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

44

Circlip | Model-RS

414439000

$4.23

45

Switch Cover

572100901

$14.83

46

Circlip

414274500

$0.90

47

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

48

Choke Cable | Formula III 700 R.

415077700

Unavailable

49

Lock Washer, Interior Teeth

394103300

Unavailable

50

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

51

Open Clamp

414176000

$1.99

52

Was 409901800 Tubing (13 mm)

219704400

$14.49

53

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

54

Elastic Stop Nut M5

232551414

$0.87

55

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

56

Female Terminal PACKARD

561503200

Unavailable

57

Female Terminal Housing (3 circuits)

409008500

Unavailable

58

Flat Washer M5, Stainless

234051600

$0.77

59

Hose

513032904

Unavailable

60

Reinforcement

508000008

Unavailable

61

Rivet

390401400

$0.53
